Hi!
Did an upgrade of the ELK-stack from 7.10 to 7.15 and in that jump the format of coordinates in Kibana changed
Previously it was just like any other field in the discovery view
> location : 11.111 , 22.222
now its
> location:{ "coordinates": [11.111, 22.222], "type": "Point" }
Anyone have an idea what happened and how can it be fixed? It looks ok when requesting the document directly via API but Kibana and csv-exports are messed up.
---
### Author:  [@bhavyarm](https://discuss.elastic.co/u/bhavyarm)
#### Post date: [October 25, 2021, 9:53pm UTC](https://discuss.elastic.co/t/changed-layout-of-coordinates-geopoint-after-upgrade-7-10-to-7-15/287365/2 "2021-10-25T21:53:01Z")
Hello,
Do you know what are the exact problems you are seeing in Kibana because of this change?
Thanks,
Bhavya
---
### Author:  [@tjswe](https://discuss.elastic.co/u/tjswe)
#### Post date: [October 29, 2021, 5:27pm UTC](https://discuss.elastic.co/t/changed-layout-of-coordinates-geopoint-after-upgrade-7-10-to-7-15/287365/3 "2021-10-29T17:27:51Z")
Hi!
Thank you for the response. Im not sure i understand the question.
My problem is that in version 7.10, a row in the discover-view would look like this
Field1: data1 Field2: data2 Field3: data3 Location: 11.111,22.222 Field4: data4
In version 7.15 its
Field1: data1 Field2: data2 Field3: data3 Location: { "coordinates": [11.111, 22.222], "type": "Point" } Field4: data4
Since i made the post in this forum i have found a post at Github which describes the same issue, but im not sure what the status of that issue is. Implemented and solved in february?
>
>
> We used a custom formatting function when we integrated \`EuiDataGrid\` in Discove…r. And decided to later on remove it, since it should be taken care of Kibana field formatters. So here is how we rendered it before removing this functionality:
> !\[Bildschirmfoto 2021-02-16 um 10 16 44\](https://user-images.githubusercontent.com/463851/108210409-cce4a100-712b-11eb-864b-a8a881121fc5.png)

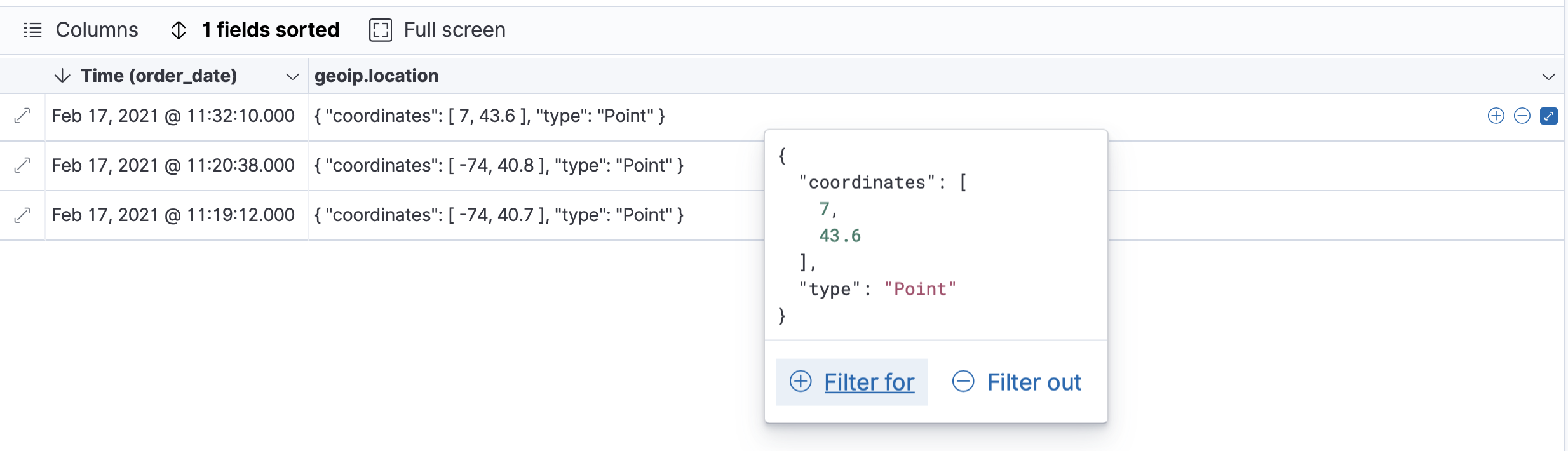

> When we removed it, it looked like this:
> \
> Clearly there's potential to format the value in a user friendly way
7.10
7.15
---
### Author:  [@tjswe](https://discuss.elastic.co/u/tjswe)
#### Post date: [November 14, 2021, 7:58pm UTC](https://discuss.elastic.co/t/changed-layout-of-coordinates-geopoint-after-upgrade-7-10-to-7-15/287365/4 "2021-11-14T19:58:21Z")
Hate to bump, but this is kind of a showstopper. My csv exports are not working due to this (besides the layout being generally screwed).
Someone have an idea?
---
### Author:  [@Nathan\_Reese](https://discuss.elastic.co/u/Nathan_Reese)
#### Post date: [November 15, 2021, 3:55pm UTC](https://discuss.elastic.co/t/changed-layout-of-coordinates-geopoint-after-upgrade-7-10-to-7-15/287365/5 "2021-11-15T15:55:56Z")
The old format can be used by using the setting in the _Advanced settings_ in Kibana, Stack management using setting: `discover:searchFieldsFromSource` . It defaults to `false` and you can set back to `true` causing the representation to be like it was prior to `7.12` .
`discover:searchFieldsFromSource` is removed in 8.0 so this solution will only work through 7.16
I have also opened [this issue](https://github.com/elastic/kibana/issues/118559) to create a field formatter for geo\_point fields to allow users like your self to customize the display of geo\_point fields without having to set `discover:searchFieldsFromSource`
---
### Author:  [@tjswe](https://discuss.elastic.co/u/tjswe)
#### Post date: [November 21, 2021, 5:57pm UTC](https://discuss.elastic.co/t/changed-layout-of-coordinates-geopoint-after-upgrade-7-10-to-7-15/287365/6 "2021-11-21T17:57:11Z")
Thank you! That was it!
Got it regarding 8.0 and hoping for a permanent solution.
---
