CISCO Grok Fail

Let me say I am a network guy so take that for what it is worth. I have spent weeks googling, testing, and debugging I tried not to hassle anyone.

I am trying to Grok the following data.

<134>May 08 2020 10:50:53: %ASA-6-734001: DAP: User xxxx,xxxx, Addr xx.xx.xx.xx, Connection AnyConnect: The following DAP records were selected for this connection: XXXX-XXX-XXX```

Here is my Grok filter

#if CiscoTAG is ASA-6-734001
        if [type] == "cisco-fw" and [ciscotag] == "%ASA-6-734001" {
        grok {
        match => ["cisco_message", "DAP: User %{DATA:user}, Addr %{IP:src_ip}, Connection %{DATA:protocol}: The following DAP records were selected for this connection: %{GREEDYDATA:policy_id1}"]
         }
        }

Here is my config file

input { stdin {} }

filter {
        grok {
                match => ["message", "%{CISCO_TAGGED_SYSLOG} %{GREEDYDATA:cisco_message}"]
        }

        # Extract fields from the each of the detailed message types
        # The patterns provided below are included in core of LogStash 1.4.2.
        grok {
                match => [
                        "cisco_message", "%{CISCOFW106001}",
                        "cisco_message", "%{CISCOFW106006_106007_106010}",
                        "cisco_message", "%{CISCOFW106014}",
                        "cisco_message", "%{CISCOFW106015}",
                        "cisco_message", "%{CISCOFW106021}",
                        "cisco_message", "%{CISCOFW106023}",
                        "cisco_message", "%{CISCOFW106100}",
                        "cisco_message", "%{CISCOFW110002}",
                        "cisco_message", "%{CISCOFW302010}",
                        "cisco_message", "%{CISCOFW302013_302014_302015_302016}",
                        "cisco_message", "%{CISCOFW302020_302021}",
                        "cisco_message", "%{CISCOFW305011}",
                        "cisco_message", "%{CISCOFW313001_313004_313008}",
                        "cisco_message", "%{CISCOFW313005}",
                        "cisco_message", "%{CISCOFW402117}",
                        "cisco_message", "%{CISCOFW402119}",
                        "cisco_message", "%{CISCOFW419001}",
                        "cisco_message", "%{CISCOFW419002}",
                        "cisco_message", "%{CISCOFW500004}",
                        "cisco_message", "%{CISCOFW602303_602304}",
                        "cisco_message", "%{CISCOFW710001_710002_710003_710005_710006}",
                        "cisco_message", "%{CISCOFW713172}",
                        "cisco_message", "%{CISCOFW733100}"
                ]
        }

#If CiscoTag is ASA-6-722051
 if [type] == "cisco-fw" and [ciscotag] == "ASA-6-722051" {
 grok {
 match => ["cisco_message", "%{DATA:Group}\s<%{DATA:Policy}> User\s<%{DATA:[event_data][TargetUserName]}> IP\s<%{IPV4:src_ip}> IPv4 Address <%{IPV4:assigned_ip}%{GREEDYDATA:extra_field}"]
 }
}

  #If CiscoTag is ASA-6-722055
 if [type] == "cisco-fw" and [ciscotag] == "ASA-6-722055" {
 grok {
 match => ["cisco_message", "%{DATA:Group}\s<%{DATA:Policy}> User\s<%{DATA:[event_data][TargetUserName]}> IP\s<%{IPV4:src_ip}> Client Type:%{GREEDYDATA:VPN_Client}"]
 }
}

 #If CiscoTag is ASA-6-722055 - Authentication Rejected
 if [type] == "cisco-fw" and [ciscotag] == "ASA-6-113005" {
 grok {
 match => ["cisco_message", "%{DATA:Group}\s%{GREEDYDATA:Policy} : reason =\s%{DATA:Reason} : server =\s%{IPV4:ServerIP} : user =\s%{DATA:[event_data][TargetUserName]} : user IP =\s%{IPV4:src_ip}"]
 }
}

#if cisco tag is ASA-6-113004
if [type] == "cisco-fw" and [ciscotag] == "ASA-6-113004" {
grok {
match => ["cisco_message", "%{WORD:aaa_type} Successful : server =  %{IP:aaa_server_ip} : user = %{GREEDYDATA:user}"]
 }
}


#if CiscoTAG is ASA-6-734001
if [type] == "cisco-fw" and [ciscotag] == "%ASA-6-734001" {
grok {
match => ["cisco_message", "DAP: User %{DATA:user}, Addr %{IP:src_ip}, Connection %{DATA:protocol}: The following DAP records were selected for this connection: %{GREEDYDATA:policy_id1}"]
 }
}

# Parse the syslog severity and facility
        syslog_pri { }

if [type] == "cisco-fw" {
        geoip {
                add_tag => [ "GeoIP" ]
                database => "/opt/logstash/databases/GeoLite2-City.mmdb"
                source => "src_ip"
                add_field => [ "[geoip][coordinates]", "%{[geoip][longitude]}" ]
                add_field => [ "[geoip][coordinates]", "%{[geoip][latitude]}" ]
                }
       mutate {
                convert => [ "[geoip][coordinates]", "float"]
}
        if [geoip][city_name]      == "" { mutate { remove_field => "[geoip][city_name]" } }
        if [geoip][continent_code] == "" { mutate { remove_field => "[geoip][continent_code]" } }
        if [geoip][country_code2]  == "" { mutate { remove_field => "[geoip][country_code2]" } }
        if [geoip][country_code3]  == "" { mutate { remove_field => "[geoip][country_code3]" } }
        if [geoip][country_name]   == "" { mutate { remove_field => "[geoip][country_name]" } }
        if [geoip][latitude]       == "" { mutate { remove_field => "[geoip][latitude]" } }
        if [geoip][longitude]      == "" { mutate { remove_field => "[geoip][longitude]" } }
        if [geoip][postal_code]    == "" { mutate { remove_field => "[geoip][postal_code]" } }
        if [geoip][region_name]    == "" { mutate { remove_field => "[geoip][region_name]" } }
        if [geoip][time_zone]      == "" { mutate { remove_field => "[geoip][time_zone]" } }

        }

        # Gets the source IP whois information from the GeoIPASNum.dat flat file database
        geoip {
                add_tag => [ "Whois" ]
                database => "/opt/logstash/databases/GeoLite2-ASN.mmdb"
                source => "src_ip"
        }

        # Parse the date
        date {
                match => ["timestamp",
                        "MMM dd HH:mm:ss",
                        "MMM  d HH:mm:ss",
                        "MMM dd yyyy HH:mm:ss",
                        "MMM  d yyyy HH:mm:ss"
                ]
        }
}

output { stdout { codec => rubydebug } }

When I run a test this is what I get.

{
    "syslog_severity_code" => 6,
               "timestamp" => "May 08 2020 10:50:53",
                    "tags" => [
        [0] "_grokparsefailure",
        [1] "_geoip_lookup_failure"
    ],
    "syslog_facility_code" => 16,
                 "message" => "<134>May 08 2020 10:50:53: %ASA-6-734001: DAP: User xxxx.xxxxx, Addr xxx.xxx.xxx.xxx, Connection AnyConnect: The following DAP records were selected for this connection: XXXXXXXX",
              "@timestamp" => 2020-05-08T16:50:53.000Z,
                "ciscotag" => "ASA-6-734001",
              "syslog_pri" => "134",
         "syslog_facility" => "local0",
           "cisco_message" => "DAP: User xxxxxx.xxxx, Addr xxx.xx.x.x, Connection AnyConnect: The following DAP records were selected for this connection: XXXXXXXX",
                "@version" => "1",
                    "host" => "elk",
         "syslog_severity" => "informational"
}

I think the issue is with the time or "cisco_message" does in the grok filter.

I know there are other posts like this, but I cannot put it together. Any help would be wonderful. Thanks for reading my post.

Also here is the logstash start output incase it is needed.

/usr/share/logstash/bin/logstash -f /etc/logstash/conf.d/test.conf --path.settings /etc/logstash/
OpenJDK 64-Bit Server VM warning: Option UseConcMarkSweepGC was deprecated in version 9.0 and will likely be removed in a future release.
WARNING: An illegal reflective access operation has occurred
WARNING: Illegal reflective access by com.headius.backport9.modules.Modules (file:/usr/share/logstash/logstash-core/lib/jars/jruby-complete-9.2.9.0.jar) to method sun.nio.ch.NativeThread.signal(long)
WARNING: Please consider reporting this to the maintainers of com.headius.backport9.modules.Modules
WARNING: Use --illegal-access=warn to enable warnings of further illegal reflective access operations
WARNING: All illegal access operations will be denied in a future release
Sending Logstash logs to /usr/share/logstash/logs which is now configured via log4j2.properties
[2020-05-08T14:49:49,360][WARN ][logstash.config.source.multilocal] Ignoring the 'pipelines.yml' file because modules or command line options are specified
[2020-05-08T14:49:49,604][INFO ][logstash.runner          ] Starting Logstash {"logstash.version"=>"7.6.2"}
[2020-05-08T14:49:54,864][INFO ][org.reflections.Reflections] Reflections took 59 ms to scan 1 urls, producing 20 keys and 40 values
[2020-05-08T14:49:57,170][INFO ][logstash.filters.geoip   ][main] Using geoip database {:path=>"/opt/logstash/databases/GeoLite2-City.mmdb"}
[2020-05-08T14:49:57,305][INFO ][logstash.filters.geoip   ][main] Using geoip database {:path=>"/opt/logstash/databases/GeoLite2-ASN.mmdb"}
[2020-05-08T14:49:57,426][WARN ][org.logstash.instrument.metrics.gauge.LazyDelegatingGauge][main] A gauge metric of an unknown type (org.jruby.RubyArray) has been created for key: cluster_uuids. This may result in invalid serialization.  It is recommended to log an issue to the responsible developer/development team.
[2020-05-08T14:49:57,434][INFO ][logstash.javapipeline    ][main] Starting pipeline {:pipeline_id=>"main", "pipeline.workers"=>4, "pipeline.batch.size"=>125, "pipeline.batch.delay"=>50, "pipeline.max_inflight"=>500, "pipeline.sources"=>["/etc/logstash/conf.d/test.conf"], :thread=>"#<Thread:0x662e86ff run>"}
[2020-05-08T14:50:00,678][INFO ][logstash.javapipeline    ][main] Pipeline started {"pipeline.id"=>"main"}
The stdin plugin is now waiting for input:
[2020-05-08T14:50:00,768][INFO ][logstash.agent           ] Pipelines running {:count=>1, :running_pipelines=>[:main], :non_running_pipelines=>[]}
[2020-05-08T14:50:01,119][INFO ][logstash.agent           ] Successfully started Logstash API endpoint {:port=>9600} it is needed.

Try this for your grok filter:

match => ["cisco_message", "DAP: User %{USERNAME:user}, Addr %{IP:src_ip}, Connection %{DATA:protocol}: The following DAP records were selected for this connection: %{GREEDYDATA:policy_id1}$"]

Ben

Thank you Ben!

This is what I have in the config now, what you posted.


#if CiscoTAG is ASA-6-734001
if [type] == "cisco-fw" and [ciscotag] == "ASA-6-734001" {
grok {
match => ["cisco_message", "DAP: User %{USERNAME:user}, Addr %{IP:src_ip}, Connection %{DATA:protocol}: The following DAP records were selected for this connection: %{GREEDYDATA:policy_id1}$"]
 }
}

This is the TEST output


{
         "syslog_severity" => "informational",
                "@version" => "1",
                    "host" => "elk",
                 "message" => "<134>May 08 2020 10:50:17: %ASA-6-734001: DAP: User ME.YOU, Addr xx.xx.xx.xx, Connection AnyConnect: The following DAP records were selected for this connection: XX_XXXX_XXX",
    "syslog_severity_code" => 6,
                    "tags" => [
        [0] "_grokparsefailure",
        [1] "_geoip_lookup_failure"
    ],
         "syslog_facility" => "local0",
              "syslog_pri" => "134",
              "@timestamp" => 2020-05-08T16:50:17.000Z,
                "ciscotag" => "ASA-6-734001",
               "timestamp" => "May 08 2020 10:50:17",
           "cisco_message" => "DAP: User ME.YOU, Addr xx.xxx.xx.xx, Connection AnyConnect: The following DAP records were selected for this connection: XX_XX_XXX",
    "syslog_facility_code" => 16
}

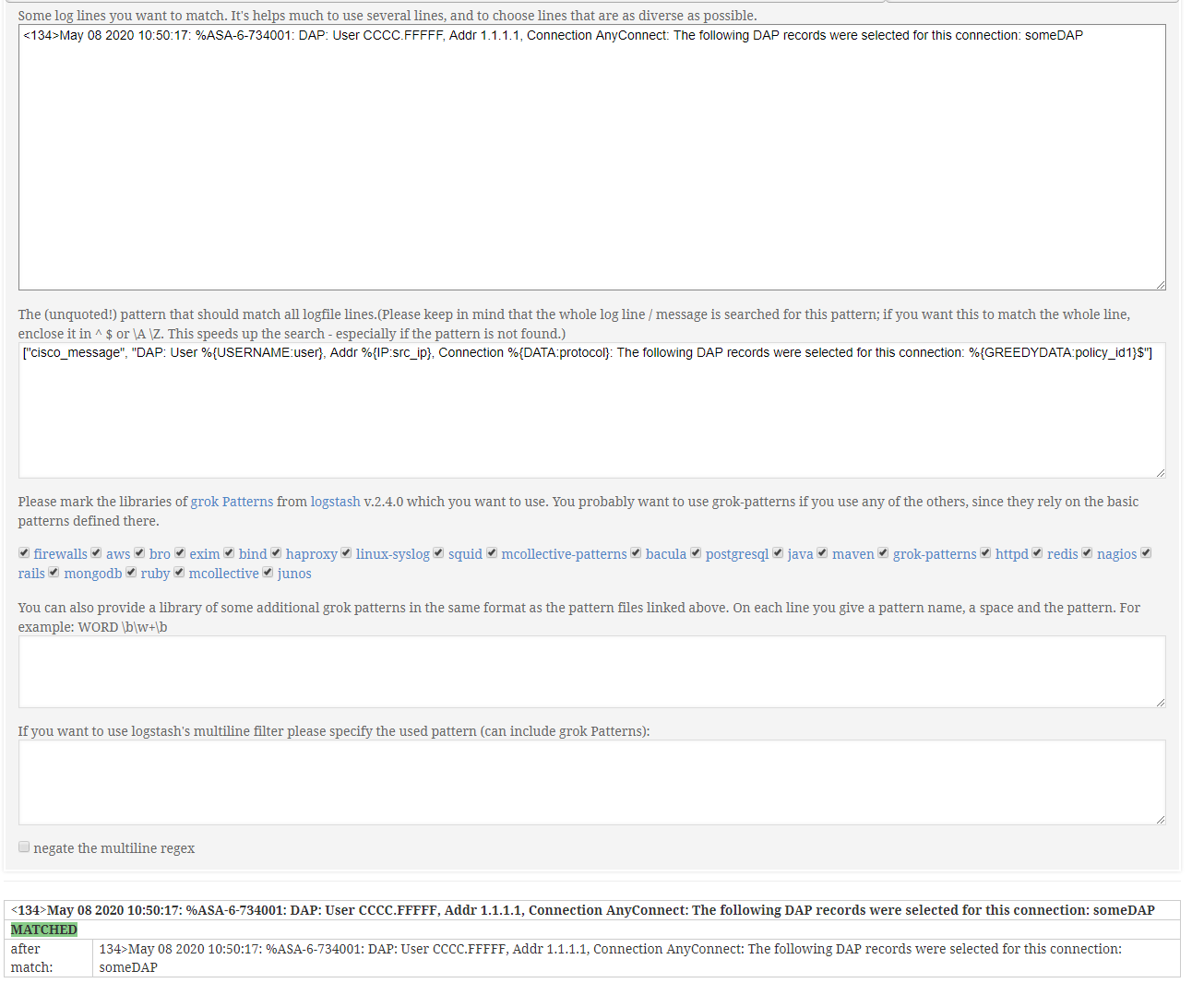

Also here are some Grok test outputs

Thanks to everyone who have looked at this!
