Kibana didn't load the data when using ruby filter in logstash

[moabbas (Muhammad Abbas (Mo Abbas))]

I wrote ruby code in logstash conf file like this
mutate {
add_field => {"[location]" => "[0,0]"}
}
ruby{
code => 'event.set("[location]", [(event.get("%{[lt][py]}").to_f * 5.6) / 10), event.get("[lt][px]"])) '
}

what i found in the logstash log file is that:
[2017-07-24T12:17:46,538][INFO ][logstash.outputs.elasticsearch] Running health check to see if an Elasticsearch connection is working {:healthcheck_url=>http://elastic:xxxxxx@127.0.0.1:9200/, :path=>"/"}
[2017-07-24T12:17:46,638][WARN ][logstash.outputs.elasticsearch] Restored connection to ES instance {:url=>#Java::JavaNet::URI:0x3dff0f9b}
[2017-07-24T12:17:46,639][INFO ][logstash.outputs.elasticsearch] Using mapping template from {:path=>nil}
[2017-07-24T12:17:46,666][INFO ][logstash.outputs.elasticsearch] Attempting to install template {:manage_template=>{"template"=>"logstash-", "version"=>50001, "settings"=>{"index.refresh_interval"=>"5s"}, "mappings"=>{"default"=>{"_all"=>{"enabled"=>true, "norms"=>false}, "dynamic_templates"=>[{"message_field"=>{"path_match"=>"message", "match_mapping_type"=>"string", "mapping"=>{"type"=>"text", "norms"=>false}}}, {"string_fields"=>{"match"=>"", "match_mapping_type"=>"string", "mapping"=>{"type"=>"text", "norms"=>false, "fields"=>{"keyword"=>{"type"=>"keyword", "ignore_above"=>256}}}}}], "properties"=>{"@timestamp"=>{"type"=>"date", "include_in_all"=>false}, "@version"=>{"type"=>"keyword", "include_in_all"=>false}, "geoip"=>{"dynamic"=>true, "properties"=>{"ip"=>{"type"=>"ip"}, "location"=>{"type"=>"geo_point"}, "latitude"=>{"type"=>"half_float"}, "longitude"=>{"type"=>"half_float"}}}}}}}}
[2017-07-24T12:17:46,671][INFO ][logstash.outputs.elasticsearch] New Elasticsearch output {:class=>"LogStash::Outputs::ElasticSearch", :hosts=>[#Java::JavaNet::URI:0x4907425a]}

I couldn't find data in kibana. After i removed the ruby code logstash worked fine.
Does anyone know how to deal with that ?

Thanks,
Muhammad Abbas

[moabbas (Muhammad Abbas (Mo Abbas))]

Any suggestions for the above !

[guyboertje]

You have too many brackets etc.

This should work:

mutate {
  # set [location] as a path to an Array.
  add_field => {"[location]" => [0, 0]}
}
ruby {
  # overwrite previous array, path [location]
  code => 'event.set("[location]", [0.56 * event.get("[lt][py]").to_f, event.get("[lt][px]")])'
}

This almost works but does not :

mutate {
  add_field => {"[location]" => [], "[location][1]" => "%{[lt][px]}"}
}
ruby{
  code => 'event.set("[location][0]", 0.56 * event.get("[lt][py]").to_f)'
}
# setting an field in 'add_field' uses sprintf and creates a String in "[location][1]".
# Event: {"@timestamp"=>2017-07-24T13:44:29.892Z, "@version"=>"1", "lt"=>{"px"=>11, "py"=>560}, "location"=>[313.6, "11"]}

To experiment on your dev box/laptop...
You can do this kind of thing:

$ bin/bundle console
Resolving dependencies...................
irb: warn: can't alias context from irb_context.
irb(main):001:0> require 'logstash/event'
=> true
irb(main):002:0> event = LogStash::Event.new
=> #<LogStash::Event:0x62b635fe>
irb(main):003:0> event.set("[location]", [0,0])
=> [0, 0]
irb(main):004:0> event.to_hash
=> {"@timestamp"=>2017-07-24T13:44:29.892Z, "@version"=>"1", "location"=>[0, 0]}
irb(main):005:0> event.set("[lt]", {"py" => 560, "px" => 11})
=> {"py"=>560, "px"=>11}
irb(main):006:0> event.to_hash
=> {"@timestamp"=>2017-07-24T13:44:29.892Z, "@version"=>"1", "lt"=>{"px"=>11, "py"=>560}, "location"=>[0, 0]}
irb(main):007:0> event.set("[location]", [0.5 * event.get("[lt][py]").to_f, 2 * event.get("[lt][px]").to_f])
=> [280.0, 22.0]
irb(main):008:0> event.to_hash
=> {"@timestamp"=>2017-07-24T13:44:29.892Z, "@version"=>"1", "lt"=>{"px"=>11, "py"=>560}, "location"=>[280.0, 22.0]}

[moabbas (Muhammad Abbas (Mo Abbas))]

Hi @guyboertje
i tried this code but it doesn't work

@guyboertje

mutate {

set [location] as a path to an Array.

add_field => {"[location]" => [0, 0]}
}
ruby {

overwrite previous array, path [location]

code => 'event.set("[location]", [0.56 * event.get("[lt][py]").to_f, event.get("[lt][px]")])'
}

when i try this the same output for logstash log file came out. and i couldn't find any data in kibana

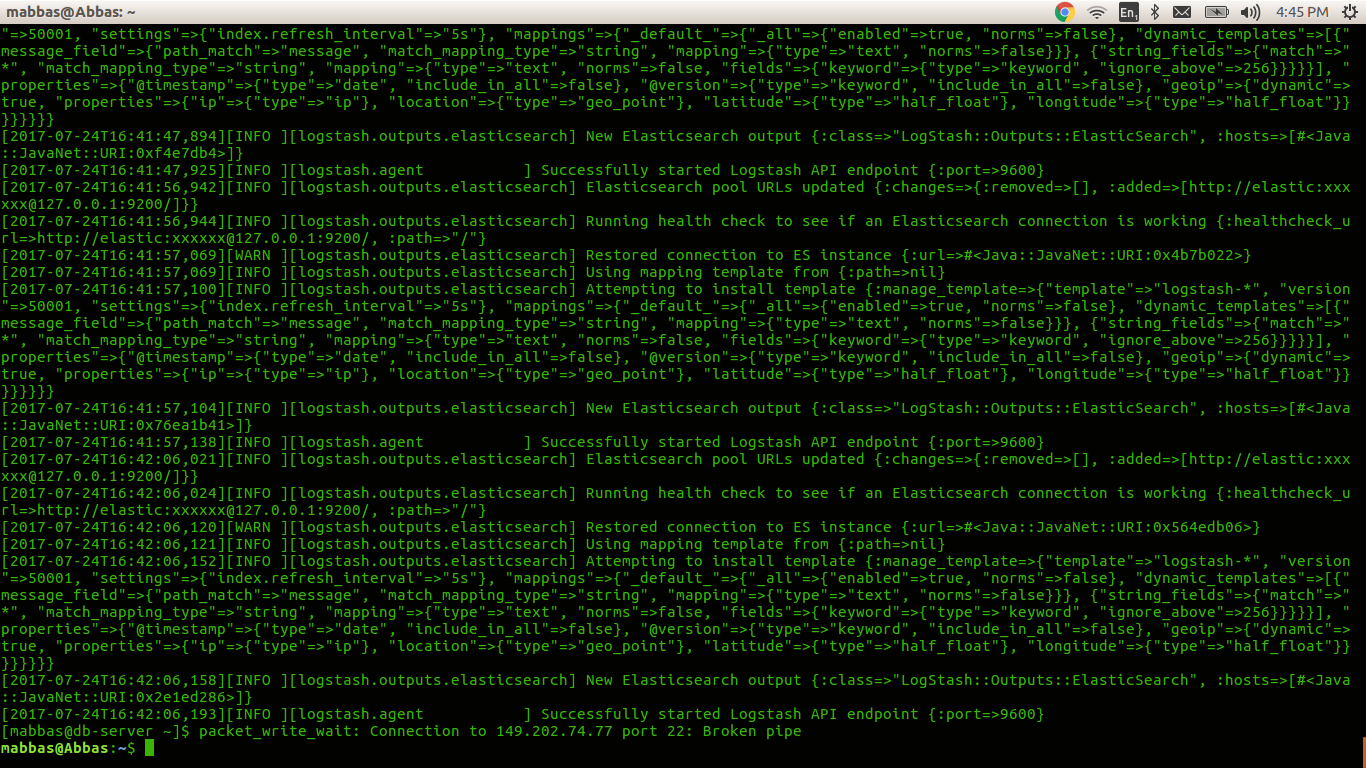

Here is my log file for logstash after applying the code above.

[moabbas (Muhammad Abbas (Mo Abbas))]

The first one was the solution for me after try it many times
Thanks @guyboertje
