Winlogbeat v7 to NiFi partial messages

Hi All,

I ship windows events using ListenBeats in NiFi, however some messages arrive truncated. So far I can't identify a pattern why this happens.

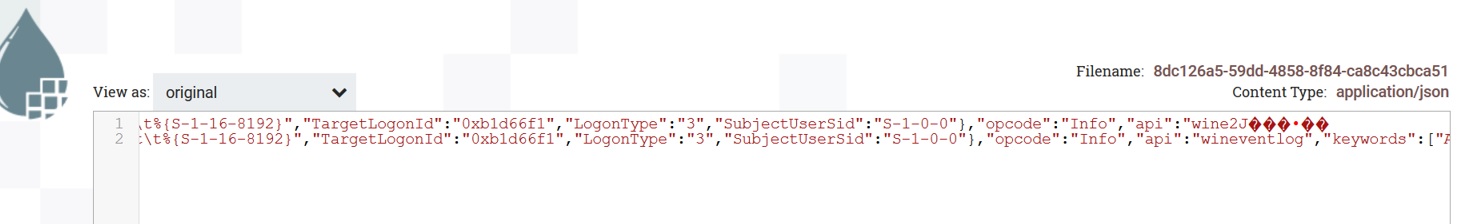

what I get on NiFi is this mess:

I can see some non-printable characters in the content of arrived message:


the original event which I can see in Event Viewer has nothing suspicious though:
Log Name: Security
Source: Microsoft-Windows-Security-Auditing
Date: 9/26/2019 11:05:45 PM
Event ID: 4627
Task Category: Group Membership
Level: Information
Keywords: Audit Success
User: N/A
Computer: xxx.corp.yyyyyyy.ru
Description:
Group membership information.

Subject:
Security ID: NULL SID
Account Name: -
Account Domain: -
Logon ID: 0x0

Logon Type: 3

New Logon:
Security ID: SYSTEM
Account Name: zzzzzz01$
Account Domain: xxx.corp.yyyyyyy.RU
Logon ID: 0x14303B0E

Event in sequence: 1 of 1

Group Membership:
BUILTIN\Administrators
Everyone
BUILTIN\Pre-Windows 2000 Compatible Access
BUILTIN\Users
BUILTIN\Windows Authorization Access Group
NT AUTHORITY\NETWORK
NT AUTHORITY\Authenticated Users
NT AUTHORITY\This Organization
CORP\zzzzz01$
CORP\Domain Controllers
NT AUTHORITY\ENTERPRISE DOMAIN CONTROLLERS
Authentication authority asserted identity
CORP\Denied RODC Password Replication Group
CORP\RAS and IAS Servers
Mandatory Label\System Mandatory Level

The subject fields indicate the account on the local system which requested the logon. This is most commonly a service such as the Server service, or a local process such as Winlogon.exe or Services.exe.

The logon type field indicates the kind of logon that occurred. The most common types are 2 (interactive) and 3 (network).

The New Logon fields indicate the account for whom the new logon was created, i.e. the account that was logged on.

This event is generated when the Audit Group Membership subcategory is configured. The Logon ID field can be used to correlate this event with the corresponding user logon event as well as to any other security audit events generated during this logon session.
Event Xml:



4627
0
0
12554
0
0x8020000000000000

20279178


Security
xxxxxxxxx.ru



S-1-0-0
-
-
0x0
S-1-5-18
DC01$
xxxxxxx.RU
0x14303b0e
3
1
1

%{S-1-5-32-544}
%{S-1-1-0}
%{S-1-5-32-554}
%{S-1-5-32-545}
%{S-1-5-32-560}
%{S-1-5-2}
%{S-1-5-11}
%{S-1-5-15}
%{S-1-5-21-900100797-3563623125-4166005187-1000}
%{S-1-5-21-900100797-3563623125-4166005187-516}
%{S-1-5-9}
%{S-1-18-1}
%{S-1-5-21-900100797-3563623125-4166005187-572}
%{S-1-5-21-900100797-3563623125-4166005187-553}
%{S-1-16-16384}

winlogbeat config winlogbeat.yml :

winlogbeat.event_logs:
  - name: Application
    ignore_older: 168h
    fields_under_root: true
    fields:
      client_name: "region"
    tags: [ "application","windows" ]
  - name: Security
    ignore_older: 168h
    fields_under_root: true
    fields:
      client_name: "region"
    tags: [ "security","windows" ]
    processors:
      - drop_event.when.not.or:
        - range.winlog.event_id: { gte: 4608, lte: 4609 }
        - equals.winlog.event_id: 4616
        - equals.winlog.event_id: 4621
        - range.winlog.event_id: { gte: 4624, lte: 4625 }
        - equals.winlog.event_id: 4627
        - equals.winlog.event_id: 4634
        - range.winlog.event_id: { gte: 4647, lte: 4649 }
        - equals.winlog.event_id: 4656
        - equals.winlog.event_id: 4658
        - range.winlog.event_id: { gte: 4662, lte: 4663 }
        - range.winlog.event_id: { gte: 4672, lte: 4675 }
        - equals.winlog.event_id: 4688
        - equals.winlog.event_id: 4696
        - range.winlog.event_id: { gte: 4698, lte: 4702 }
        - range.winlog.event_id: { gte: 4704, lte: 4707 }
        - range.winlog.event_id: { gte: 4713, lte: 4720 }
        - range.winlog.event_id: { gte: 4722, lte: 4735 }
#        - equals.winlog.event_id: 4724
#        - equals.winlog.event_id: 4728
        - range.winlog.event_id: { gte: 4737, lte: 4764 }
#        - equals.winlog.event_id: 4738
        - equals.winlog.event_id: 4767
        - range.winlog.event_id: { gte: 4774, lte: 4794 }
        - range.winlog.event_id: { gte: 4800, lte: 4803 }
        - range.winlog.event_id: { gte: 4864, lte: 4867 }
        - equals.winlog.event_id: 4902
        - range.winlog.event_id: { gte: 4904, lte: 4908 }
        - equals.winlog.event_id: 4912
        - equals.winlog.event_id: 4964
        - range.winlog.event_id: { gte: 5024, lte: 5025 }
        - range.winlog.event_id: { gte: 5027, lte: 5030 }
        - range.winlog.event_id: { gte: 5032, lte: 5035 }
        - equals.winlog.event_id: 5037
        - range.winlog.event_id: { gte: 5058, lte: 5059 }
        - range.winlog.event_id: { gte: 5136, lte: 5140 }
        - range.winlog.event_id: { gte: 5142, lte: 5144 }
        - range.winlog.event_id: { gte: 5148, lte: 5149 }
        - equals.winlog.event_id: 5168
        - equals.winlog.event_id: 5378
        - range.winlog.event_id: { gte: 5632, lte: 5633 }
        - equals.winlog.event_id: 6416
        - range.winlog.event_id: { gte: 6419, lte: 4624 }
  - name: System
    ignore_older: 168h
    fields_under_root: true
    fields:
      client_name: "region"
    tags: [ "system","windows" ]

output:
  logstash:
    hosts: ["xxxxxxxxxxxxxxxxx:5044"]
    worker: 1
    compression_level: 0
    bulk_max_size: 1
    pipelining: 0
    codec.json:
      pretty: false
      escape_html: true

winlogbeat.shutdown_timeout: 10s

nifi.properties config file:

nifi.flow.configuration.file=./conf/flow.xml.gz
nifi.flow.configuration.archive.enabled=true
nifi.flow.configuration.archive.dir=./conf/archive/
nifi.flow.configuration.archive.max.time=30 days
nifi.flow.configuration.archive.max.storage=500 MB
nifi.flow.configuration.archive.max.count=
nifi.flowcontroller.autoResumeState=true
nifi.flowcontroller.graceful.shutdown.period=10 sec
nifi.flowservice.writedelay.interval=500 ms
nifi.administrative.yield.duration=30 sec

nifi.bored.yield.duration=10 millis
nifi.queue.backpressure.count=10000
nifi.queue.backpressure.size=1 GB

nifi.authorizer.configuration.file=./conf/authorizers.xml
nifi.login.identity.provider.configuration.file=./conf/login-identity-providers.xml
nifi.templates.directory=./conf/templates
nifi.ui.banner.text=
nifi.ui.autorefresh.interval=30 sec
nifi.nar.library.directory=./lib
nifi.nar.library.autoload.directory=./extensions
nifi.nar.working.directory=./work/nar/
nifi.documentation.working.directory=./work/docs/components

nifi.state.management.configuration.file=./conf/state-management.xml

nifi.state.management.provider.local=local-provider

nifi.state.management.provider.cluster=zk-provider

nifi.state.management.embedded.zookeeper.start=false

nifi.state.management.embedded.zookeeper.properties=./conf/zookeeper.properties

nifi.database.directory=./database_repository
nifi.h2.url.append=;LOCK_TIMEOUT=25000;WRITE_DELAY=0;AUTO_SERVER=FALSE

nifi.flowfile.repository.implementation=org.apache.nifi.controller.repository.WriteAheadFlowFileRepository
nifi.flowfile.repository.wal.implementation=org.apache.nifi.wali.SequentialAccessWriteAheadLog
nifi.flowfile.repository.directory=./flowfile_repository
nifi.flowfile.repository.partitions=256
nifi.flowfile.repository.checkpoint.interval=2 mins
nifi.flowfile.repository.always.sync=false

nifi.swap.manager.implementation=org.apache.nifi.controller.FileSystemSwapManager
nifi.queue.swap.threshold=20000
nifi.swap.in.period=5 sec
nifi.swap.in.threads=1
nifi.swap.out.period=5 sec
nifi.swap.out.threads=4

nifi.content.repository.implementation=org.apache.nifi.controller.repository.FileSystemRepository
nifi.content.claim.max.appendable.size=1 MB
nifi.content.claim.max.flow.files=100
nifi.content.repository.directory.default=./content_repository
nifi.content.repository.archive.max.retention.period=12 hours
nifi.content.repository.archive.max.usage.percentage=50%
nifi.content.repository.archive.enabled=true
nifi.content.repository.always.sync=false
nifi.content.viewer.url=../nifi-content-viewer/

nifi.provenance.repository.implementation=org.apache.nifi.provenance.WriteAheadProvenanceRepository
nifi.provenance.repository.debug.frequency=1_000_000
nifi.provenance.repository.directory.default=./provenance_repository
nifi.provenance.repository.max.storage.time=24 hours
nifi.provenance.repository.max.storage.size=1 GB
nifi.provenance.repository.rollover.time=30 secs
nifi.provenance.repository.rollover.size=100 MB
nifi.provenance.repository.query.threads=2
nifi.provenance.repository.index.threads=2
nifi.provenance.repository.compress.on.rollover=true
nifi.provenance.repository.always.sync=false

nifi.provenance.repository.indexed.fields=EventType, FlowFileUUID, Filename, ProcessorID, Relationship

nifi.provenance.repository.index.shard.size=500 MB

nifi.provenance.repository.max.attribute.length=65536
nifi.provenance.repository.concurrent.merge.threads=2

nifi.provenance.repository.buffer.size=100000

nifi.components.status.repository.implementation=org.apache.nifi.controller.status.history.VolatileComponentStatusRepository
nifi.components.status.repository.buffer.size=1440
nifi.components.status.snapshot.frequency=1 min

nifi.remote.input.secure=false
nifi.remote.input.socket.port=
nifi.remote.input.http.enabled=true
nifi.remote.input.http.transaction.ttl=30 sec
nifi.remote.contents.cache.expiration=30 secs

nifi.web.war.directory=./lib
nifi.web.http.host=
nifi.web.http.port=8080
nifi.web.jetty.working.directory=./work/jetty
nifi.web.jetty.threads=200
nifi.web.max.header.size=16 KB
nifi.sensitive.props.algorithm=PBEWITHMD5AND256BITAES-CBC-OPENSSL
nifi.sensitive.props.provider=BC
nifi.security.user.authorizer=managed-authorizer

nifi.security.user.oidc.discovery.url=
nifi.security.user.oidc.connect.timeout=5 secs
nifi.security.user.oidc.read.timeout=5 secs
nifi.security.user.knox.cookieName=hadoop-jwt

nifi.cluster.protocol.heartbeat.interval=5 sec
nifi.cluster.protocol.is.secure=false

nifi.cluster.is.node=false
nifi.cluster.node.protocol.threads=10
nifi.cluster.node.protocol.max.threads=50
nifi.cluster.node.event.history.size=25
nifi.cluster.node.connection.timeout=5 sec
nifi.cluster.node.read.timeout=5 sec
nifi.cluster.node.max.concurrent.requests=100
nifi.cluster.flow.election.max.wait.time=5 mins

nifi.cluster.load.balance.host=
nifi.cluster.load.balance.port=6342
nifi.cluster.load.balance.connections.per.node=4
nifi.cluster.load.balance.max.thread.count=8
nifi.cluster.load.balance.comms.timeout=30 sec

nifi.zookeeper.connect.string=
nifi.zookeeper.connect.timeout=3 secs
nifi.zookeeper.session.timeout=3 secs
nifi.zookeeper.root.node=/nifi

nifi.kerberos.spnego.authentication.expiration=12 hours
