Average bucket in histogram change when time filter change

[vbarai]

Hi All,
I am using latest ELK 7.10. I am facing weired issue with the Lens and Average Bucket Histogram.

STEP 1 : Created 4 Index for Dec-2020 Days as below
idx_agg_test_20201201
idx_agg_test_20201207
idx_agg_test_20201208
idx_agg_test_20201204
Each index has a data like below:

           {
            "_index" : "idx_agg_test_20201208",
           "_type" : "_doc",
            "_id" : "GmbaR3YBgolC41zZSJIJ",
           "_score" : 1.0,
           "_source" : {
            "date" : "2020-12-08T00:00:00",
           "category" : "eae5042914726c0103e9822d48cf6f74",
            "amount" : 4943.82
           }

Each index is at the maxof 20 MB having 2 shard (p+r) with 1 segment each.
Here is the record count of each index

           date                    , count(1)
           2020-12-01T00:00:00.000Z, 458211
           2020-12-04T00:00:00.000Z, 350433
           2020-12-07T00:00:00.000Z, 327896
           2020-12-08T00:00:00.000Z, 327327

STEP 2 : Create a aliase for these index

           GET /_alias/alias_mtd
           Output=>
           {
             "idx_agg_test_20201201" : {"aliases" : {"alias_mtd" : { }}},
             "idx_agg_test_20201207" : {"aliases" : {"alias_mtd" : { }}},
             "idx_agg_test_20201208" : {"aliases" : {"alias_mtd" : { }}},
             "idx_agg_test_20201204" : {"aliases" : {"alias_mtd" : { }}}
           }

STEP 3: Plot Average Metric Visualisation on alias_mtd.
Metrics : Aggregation -> Average Bucket
|==> Bucket -> Aggregation: Date Histogram, Field : date, Minimum interval : Day
|=> Metric -> Aggregation : SUM, Field : Amount

Buckets : Aggregation : Term , Field : date

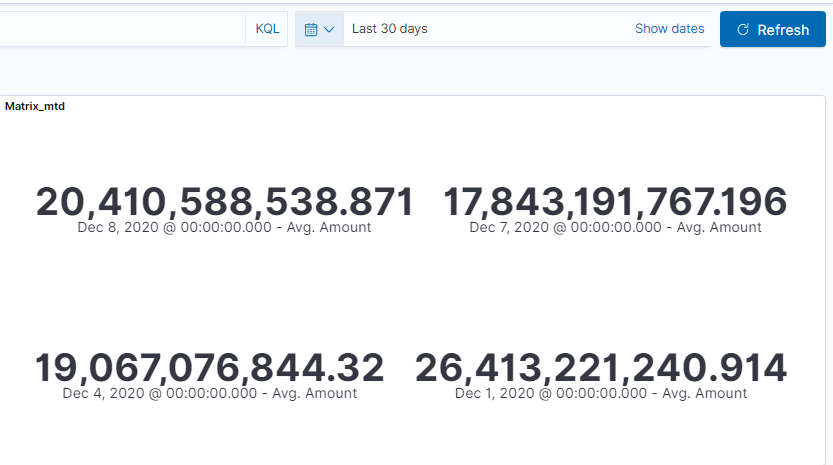

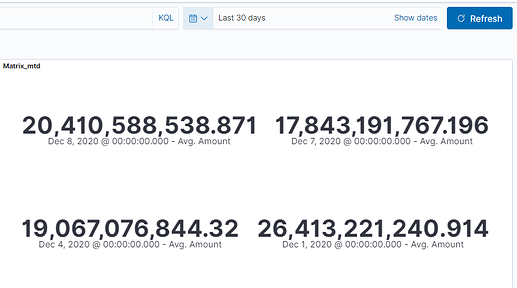

You will get something like below. Note Time interval is "Last 30 Days".

STEP 4: Change Time Range to 2 year. Just by changing a time range result is different. It is still showing same Dates Dec 1, Dec 4, Dec 7 and Dec 8, but values are different.
Note, there is no change happend if you change time range for Last 30, 60, 90 or 1 year. It only happen if you select "Last 2 year" and beyond.

STEP 5: Simillar issues observed while working with Lens Pie Chart while taking a count on alias_mtd. This time there is change in date itself.
Notice date "2020-11-30" this date is not present in anywhere in those 4 index.

[lukas (Lukas Olson)]

Hmm, this does seem strange. Do you mind using the "Inspect" functionality and pasting in the request/response here so we can do a little investigation?

[vbarai]

@lukas

Inspect

Thanks Lukas for responding to my query:
Here is the inspect details of Metrics chart. There inspect option is not there for Lens-Pie chart:

Seems like when I select 2 year there is a change in "calendar_interval": "1d" to "calendar_interval": "1w".

Request [Last 1 Year]

{
  "aggs": {
    "2": {
      "terms": {
        "field": "date",
        "order": {
          "_key": "desc"
        },
        "size": 50
      },
      "aggs": {
        "1": {
          "avg_bucket": {
            "buckets_path": "1-bucket>1-metric"
          }
        },
        "1-bucket": {
          "date_histogram": {
            "field": "date",
            "calendar_interval": "1d",
            "time_zone": "UTC",
            "min_doc_count": 1
          },
          "aggs": {
            "1-metric": {
              "sum": {
                "field": "amount"
              }
            }
          }
        }
      }
    }
  },
  "size": 0,
  "stored_fields": [
    "*"
  ],
  "script_fields": {},
  "docvalue_fields": [
    {
      "field": "date",
      "format": "date_time"
    }
  ],
  "_source": {
    "excludes": []
  },
  "query": {
    "bool": {
      "must": [],
      "filter": [
        {
          "match_all": {}
        },
        {
          "range": {
            "date": {
              "gte": "2019-12-11T04:04:27.102Z",
              "lte": "2020-12-11T04:04:27.103Z",
              "format": "strict_date_optional_time"
            }
          }
        }
      ],
      "should": [],
      "must_not": []
    }
  }
}

Response [Last 1 Year]

{
  "took": 4,
  "timed_out": false,
  "_shards": {
    "total": 4,
    "successful": 4,
    "skipped": 0,
    "failed": 0
  },
  "hits": {
    "total": 1463867,
    "max_score": null,
    "hits": []
  },
  "aggregations": {
    "2": {
      "doc_count_error_upper_bound": 0,
      "sum_other_doc_count": 0,
      "buckets": [
        {
          "1": {
            "value": 20410588538.871193
          },
          "key": 1607385600000,
          "key_as_string": "2020-12-08T00:00:00.000Z",
          "doc_count": 327327,
          "1-bucket": {
            "buckets": [
              {
                "key_as_string": "2020-12-08T00:00:00.000Z",
                "key": 1607385600000,
                "doc_count": 327327,
                "1-metric": {
                  "value": 20410588538.871193
                }
              }
            ]
          }
        },
        {
          "1": {
            "value": 17843191767.196167
          },
          "key": 1607299200000,
          "key_as_string": "2020-12-07T00:00:00.000Z",
          "doc_count": 327896,
          "1-bucket": {
            "buckets": [
              {
                "key_as_string": "2020-12-07T00:00:00.000Z",
                "key": 1607299200000,
                "doc_count": 327896,
                "1-metric": {
                  "value": 17843191767.196167
                }
              }
            ]
          }
        },
        {
          "1": {
            "value": 19067076844.31994
          },
          "key": 1607040000000,
          "key_as_string": "2020-12-04T00:00:00.000Z",
          "doc_count": 350433,
          "1-bucket": {
            "buckets": [
              {
                "key_as_string": "2020-12-04T00:00:00.000Z",
                "key": 1607040000000,
                "doc_count": 350433,
                "1-metric": {
                  "value": 19067076844.31994
                }
              }
            ]
          }
        },
        {
          "1": {
            "value": 26413221240.91387
          },
          "key": 1606780800000,
          "key_as_string": "2020-12-01T00:00:00.000Z",
          "doc_count": 458211,
          "1-bucket": {
            "buckets": [
              {
                "key_as_string": "2020-12-01T00:00:00.000Z",
                "key": 1606780800000,
                "doc_count": 458211,
                "1-metric": {
                  "value": 26413221240.91387
                }
              }
            ]
          }
        }
      ]
    }
  }
}

Request [Last 2 years]

{
  "aggs": {
    "2": {
      "terms": {
        "field": "date",
        "order": {
          "_key": "desc"
        },
        "size": 50
      },
      "aggs": {
        "1": {
          "avg_bucket": {
            "buckets_path": "1-bucket>1-metric"
          }
        },
        "1-bucket": {
          "date_histogram": {
            "field": "date",
            "calendar_interval": "1w",
            "time_zone": "UTC",
            "min_doc_count": 1
          },
          "aggs": {
            "1-metric": {
              "sum": {
                "field": "amount"
              }
            }
          }
        }
      }
    }
  },
  "size": 0,
  "stored_fields": [
    "*"
  ],
  "script_fields": {},
  "docvalue_fields": [
    {
      "field": "date",
      "format": "date_time"
    }
  ],
  "_source": {
    "excludes": []
  },
  "query": {
    "bool": {
      "must": [],
      "filter": [
        {
          "match_all": {}
        },
        {
          "range": {
            "date": {
              "gte": "2018-12-11T04:07:04.126Z",
              "lte": "2020-12-11T04:07:04.126Z",
              "format": "strict_date_optional_time"
            }
          }
        }
      ],
      "should": [],
      "must_not": []
    }
  }
}

Responce [Last 2 years]

{
  "took": 4,
  "timed_out": false,
  "_shards": {
    "total": 4,
    "successful": 4,
    "skipped": 0,
    "failed": 0
  },
  "hits": {
    "total": 1463867,
    "max_score": null,
    "hits": []
  },
  "aggregations": {
    "2": {
      "doc_count_error_upper_bound": 0,
      "sum_other_doc_count": 0,
      "buckets": [
        {
          "1": {
            "value": 20410588538.871193
          },
          "key": 1607385600000,
          "key_as_string": "2020-12-08T00:00:00.000Z",
          "doc_count": 327327,
          "1-bucket": {
            "buckets": [
              {
                "key_as_string": "2020-12-07T00:00:00.000Z",
                "key": 1607299200000,
                "doc_count": 327327,
                "1-metric": {
                  "value": 20410588538.871193
                }
              }
            ]
          }
        },
        {
          "1": {
            "value": 17843191767.196167
          },
          "key": 1607299200000,
          "key_as_string": "2020-12-07T00:00:00.000Z",
          "doc_count": 327896,
          "1-bucket": {
            "buckets": [
              {
                "key_as_string": "2020-12-07T00:00:00.000Z",
                "key": 1607299200000,
                "doc_count": 327896,
                "1-metric": {
                  "value": 17843191767.196167
                }
              }
            ]
          }
        },
        {
          "1": {
            "value": 19067076844.31994
          },
          "key": 1607040000000,
          "key_as_string": "2020-12-04T00:00:00.000Z",
          "doc_count": 350433,
          "1-bucket": {
            "buckets": [
              {
                "key_as_string": "2020-11-30T00:00:00.000Z",
                "key": 1606694400000,
                "doc_count": 350433,
                "1-metric": {
                  "value": 19067076844.31994
                }
              }
            ]
          }
        },
        {
          "1": {
            "value": 26413221240.91387
          },
          "key": 1606780800000,
          "key_as_string": "2020-12-01T00:00:00.000Z",
          "doc_count": 458211,
          "1-bucket": {
            "buckets": [
              {
                "key_as_string": "2020-11-30T00:00:00.000Z",
                "key": 1606694400000,
                "doc_count": 458211,
                "1-metric": {
                  "value": 26413221240.91387
                }
              }
            ]
          }
        }
      ]
    }
  }
}

[vbarai]

@lukas Do you have any suggestion on issue I am facing?

[xeraa]

So what are you trying to achieve here in the end? If the bucket-size (or time) changes, I'm not surprised that the end result changes as well. Do you want to keep it at daily buckets or what is the question or goal?

[vbarai]

Hi Xeraa, goal is to get (Sum of Amount of all Days) / (Number of Days) which is avg amount over days. I purposely split the data by date to post it in discussion forum to see what is going on. In actual case I wont.
What is your opinion on Lens pie change issue mentioned above? Why it changing a date which is not there in data? Isnt it is a case of wrong reporting and there is a huge bug in the application?

Regarding your comment "I'm not surprised that the end result changes as well", If number of days and amount is not changing then why end result change just by chaning a Time range? This is giving a wrong result and no one will trust report. It defeat a purpose all together.

[xeraa]

Let me get back to this:

1. I was mostly looking at the JSON query and response since those are much easier to figure out than the Lens screenshot.

2. If you switch the bucket size from day to week, I'm not surprised the results change — you are moving from average per day to average per week, which is different.

3. I'm not sure how you want to get the daily average out of a pie chart. Shouldn't that be a bar chart with one bar per day? Like this:

   I have a different dataset, but daily average:




   With special care to make the buckets 1 day each (click on the @timestamp field to pick this interval):




PS: 20MB for one index is very small — you're having a lot of overhead just from the amount of shards. Either switch to monthly indices or use ILM to create them with 50GB each.

[vbarai]

@xeraa Seems there is so many disconnects, let me clarify on that..
for #2: I am not moving bucket interval from days to week. It is done by Kibana automatically.
for #3: Ideally it could be pie chart or bar char. Other application like Tableau doesnt restrict which metric you want to plot on pie/bar. I want to show a pie chart to see the market coverage. To quantify how much market cover by which category, for us daily/MTD/YTD avgerage make more sence than sum. Hence Pie chart to plot average value
for #4: @timestamp doesnt make any sence for us because data is not real-time. We have other date column on which we have to trust for our analysis. Our dashboard is doing analysis of Daily/MTD/YTD so just 1 bucket is of no use.
for #5: 20 MB index is what I am experimenting on. Our actual index is much larger in GBs.

Quick question on this when you said "index with 50GB each" Does it mean total size/ each shard size/each segment size.

Solution of above issue: @xeraa we got a solution to proble I mentioned with the help of Elastic team. The solution is to increase a "Maximum buckets" property in advance setting to higer values like 2000 .

Thanks for all your help. Will reach out to you for any more queries on ELK.
