Filebeat is not collecting logs from pods/kubernetes

Hey, I am using Docker-desktop 4.6.0 (75818) on windows 10 [version 10.0.19042.1526], trying to set up Observability in a Kubernetes context, I have two application running (spring boot application + react app) I set up apm agent for each application and an APM server to collect metrics, everything is working fine, but when I deployed a filebeat to collect logs from all pods (including logs from Elasticsearch), all logs are 'unknown' (see picture below):

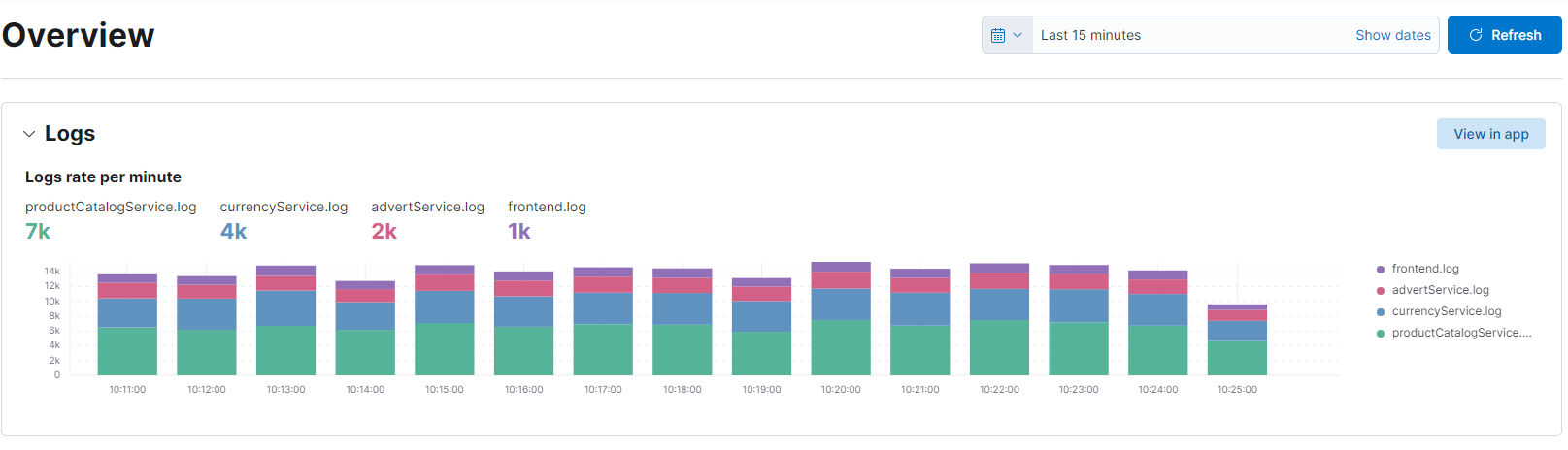

What I would like is something similar to (I took this screenshot from CTB workshop) :

here is filebeat.yml:

---
apiVersion: v1
kind: ConfigMap
metadata:
  name: filebeat-config
  namespace: my-app
  labels:
    k8s-app: filebeat
data:
  filebeat.yml: |-
    filebeat.inputs:
    - type: container
      paths:
        - /var/log/containers/*.log
      processors:
        - add_kubernetes_metadata:
            host: ${NODE_NAME}
            matchers:
            - logs_path:
                logs_path: "/var/log/containers/"

    # To enable hints based autodiscover, remove `filebeat.inputs` configuration and uncomment this:
    filebeat.autodiscover:
     providers:
       - type: kubernetes
         node: ${NODE_NAME}
         hints.enabled: true
         hints.default_config:
           type: container
           paths:
             - /var/log/containers/*${data.kubernetes.container.id}.log

    processors:
      - add_cloud_metadata:
      - add_host_metadata:
      - add_kubernetes_metadata:

    cloud.id: ${ELASTIC_CLOUD_ID}
    cloud.auth: ${ELASTIC_CLOUD_AUTH}

    output.elasticsearch:
      hosts: ['${ELASTICSEARCH_HOST:elasticsearch}:${ELASTICSEARCH_PORT:9200}']
      username: ${ELASTICSEARCH_USERNAME}
      password: ${ELASTICSEARCH_PASSWORD}

    logging.level: error
    logging.to_files: true
    logging.files:
      path: /var/log/filebeat
      name: filebeat
      keepfiles: 7
      permissions: 0640

    setup.dashboards.enabled: true

    setup.kibana:
      host: kibana:5601
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: filebeat
  namespace: my-app
  labels:
    k8s-app: filebeat
spec:
  selector:
    matchLabels:
      k8s-app: filebeat
  template:
    metadata:
      labels:
        k8s-app: filebeat
    spec:
      serviceAccountName: filebeat
      terminationGracePeriodSeconds: 30
      hostNetwork: true
      dnsPolicy: ClusterFirstWithHostNet
      containers:
      - name: filebeat
        image: docker.elastic.co/beats/filebeat:7.15.2
        args: [
          "-c", "/etc/filebeat.yml",
          "-e",
        ]
        env:
        - name: ELASTICSEARCH_HOST
          value: elasticsearch
        - name: ELASTICSEARCH_PORT
          value: "9200"
        - name: ELASTICSEARCH_USERNAME
          value: elastic
        - name: ELASTICSEARCH_PASSWORD
          value: changeme
        - name: ELASTIC_CLOUD_ID
          value:
        - name: ELASTIC_CLOUD_AUTH
          value:
        - name: NODE_NAME
          valueFrom:
            fieldRef:
              fieldPath: spec.nodeName
        securityContext:
          runAsUser: 0
          # If using Red Hat OpenShift uncomment this:
          #privileged: true
        resources:
          limits:
            memory: 200Mi
          requests:
            cpu: 100m
            memory: 100Mi
        volumeMounts:
        - name: config
          mountPath: /etc/filebeat.yml
          readOnly: true
          subPath: filebeat.yml
        - name: data
          mountPath: /usr/share/filebeat/data
        - name: varlibdockercontainers
          mountPath: /var/lib/docker/containers
          readOnly: true
        - name: varlog
          mountPath: /var/log
          readOnly: true
      volumes:
      - name: config
        configMap:
          defaultMode: 0640
          name: filebeat-config
      - name: varlibdockercontainers
        hostPath:
          path: /var/lib/docker/containers
      - name: varlog
        hostPath:
          path: /var/log
      # data folder stores a registry of read status for all files, so we don't send everything again on a Filebeat pod restart
      - name: data
        hostPath:
          # When filebeat runs as non-root user, this directory needs to be writable by group (g+w).
          path: /var/lib/filebeat-data
          type: DirectoryOrCreate
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: filebeat
subjects:
- kind: ServiceAccount
  name: filebeat
  namespace: my-app
roleRef:
  kind: ClusterRole
  name: filebeat
  apiGroup: rbac.authorization.k8s.io
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: filebeat
  namespace: my-app
subjects:
  - kind: ServiceAccount
    name: filebeat
    namespace: my-app
roleRef:
  kind: Role
  name: filebeat
  apiGroup: rbac.authorization.k8s.io
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: filebeat-kubeadm-config
  namespace: my-app
subjects:
  - kind: ServiceAccount
    name: filebeat
    namespace: my-app
roleRef:
  kind: Role
  name: filebeat-kubeadm-config
  apiGroup: rbac.authorization.k8s.io
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: filebeat
  labels:
    k8s-app: filebeat
rules:
- apiGroups: [""] # "" indicates the core API group
  resources:
  - namespaces
  - pods
  - nodes
  verbs:
  - get
  - watch
  - list
- apiGroups: ["apps"]
  resources:
    - replicasets
  verbs: ["get", "list", "watch"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: filebeat
  # should be the namespace where filebeat is running
  namespace: my-app
  labels:
    k8s-app: filebeat
rules:
  - apiGroups:
      - coordination.k8s.io
    resources:
      - leases
    verbs: ["get", "create", "update"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: filebeat-kubeadm-config
  namespace: my-app
  labels:
    k8s-app: filebeat
rules:
  - apiGroups: [""]
    resources:
      - configmaps
    resourceNames:
      - kubeadm-config
    verbs: ["get"]
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: filebeat
  namespace: my-app
  labels:
    k8s-app: filebeat
---

what's causing the 'unknown' in Logs UI ? And how to collect Elasticsearch logs (gc, audit, etc.) with filebeat in kubernetes? I already did this configuration but was on-premise not in kubernetes.

Thanks.

Well based on the two issues: issue1 and issue2, it appears that filebeat only collect raw logs but doesn't assign from which source it was collected, thus you have to add event.dataset, see ECS: event.dataset field using processors, like this:

# ....
  processors:
      - add_cloud_metadata:
      - add_host_metadata:
      - add_kubernetes_metadata:
      - add_fields:
          when:
            contains:
              kubernetes.pod.name: "my-app1"
          target: ''
          fields:
            event:
              dataset: my-app1.log
      - add_fields:
          when:
            contains:
              kubernetes.pod.name: "my-app2"
          target: ''
          fields:
            event:
              dataset: my-app2.log
      #- add_field for more pods, etc.
#...
