hello, how are you?
I have a problem adding the APM agent to my web application, I installed the agent from the NuGet, I created a class called 'Startup' as indicated in the documentation and also created the configuration file 'appsettings.json', configure as the documentation says with the url and token, I run the web application, but I am not sending data to my APM in kibana, I have already looked at several sources but I still do not know how to correct it, so I need your help please.
I attach screenshots of the code interface and the raw code as such:
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using Microsoft.AspNetCore.Builder;
using Microsoft.AspNetCore.Hosting;
using Microsoft.AspNetCore.Http;
using Elastic.Apm.NetCoreAll;
using Microsoft.Extensions.Configuration;
namespace VentasWeb
{
public class Startup
{
public void Configure(IApplicationBuilder app, IHostingEnvironment env)
{
app.UseAllElasticApm();
//…rest of the method
}
//…rest of the class
}
}

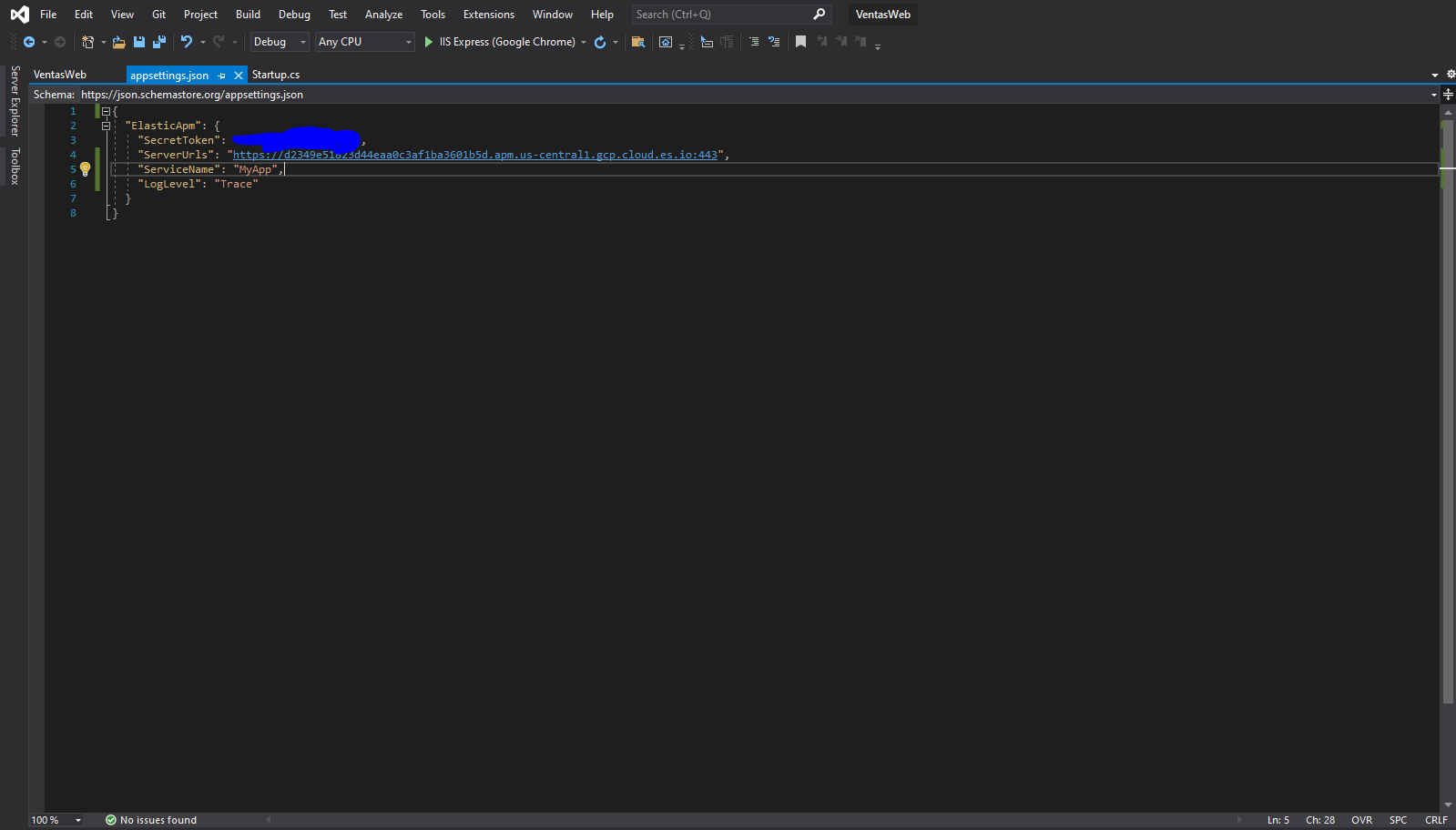

appsettings.json
{
"ElasticApm": {
"SecretToken": "xxxxxxxxxxxxxxxxxxx",
"ServerUrls": "https://d2349e51823d44eaa0c3af1ba3601b5d.apm.us-central1.gcp.cloud.es.io:443", //Set custom APM Server URL (default: http://localhost:8200)
"ServiceName": "MyApp" //allowed characters: a-z, A-Z, 0-9, -, _, and space. Default is the entry assembly of the application
}
}
will provide verbose information to troubleshoot with. If the application is using Microsoft.Extensions.Logging, the APM agent will create a logger with category name "Elastic.Apm" using the ILoggerFactory. If the application isn't using Microsoft.Extensions.Logging, the APM agent logger with log to Console.Out.
If you're able to provide some log output for agent operation, we can see what's going on.
Good, I have attached the code as you say it, but when I run the application does not create the agent in my kibana. I do not know if this misplaced the class or something, I send capture.
'iisexpress.exe' (CLR v4.0.30319: DefaultDomain): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_32\mscorlib\v4.0_4.0.0.0__b77a5c561934e089\mscorlib.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: DefaultDomain): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_MSIL\System.Web.ApplicationServices\v4.0_4.0.0.0__31bf3856ad364e35\System.Web.ApplicationServices.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: DefaultDomain): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_MSIL\System.Configuration\v4.0_4.0.0.0__b03f5f7f11d50a3a\System.Configuration.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: DefaultDomain): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_MSIL\System.Xml\v4.0_4.0.0.0__b77a5c561934e089\System.Xml.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: Domain 2): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_32\mscorlib\v4.0_4.0.0.0__b77a5c561934e089\mscorlib.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731690923734270): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_32\System.Web\v4.0_4.0.0.0__b03f5f7f11d50a3a\System.Web.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731690923734270): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_MSIL\System\v4.0_4.0.0.0__b77a5c561934e089\System.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731690923734270): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_MSIL\System.Configuration\v4.0_4.0.0.0__b03f5f7f11d50a3a\System.Configuration.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731690923734270): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_MSIL\Microsoft.Build.Utilities.v4.0\v4.0_4.0.0.0__b03f5f7f11d50a3a\Microsoft.Build.Utilities.v4.0.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731690923734270): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_MSIL\System.Runtime.Caching\v4.0_4.0.0.0__b03f5f7f11d50a3a\System.Runtime.Caching.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731690923734270): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_MSIL\System.Xml\v4.0_4.0.0.0__b77a5c561934e089\System.Xml.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731690923734270): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_MSIL\System.Core\v4.0_4.0.0.0__b77a5c561934e089\System.Core.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731690923734270): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_MSIL\Microsoft.JScript\v4.0_10.0.0.0__b03f5f7f11d50a3a\Microsoft.JScript.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731690923734270): Loaded 'C:\Users\NOC2\AppData\Local\Temp\Temporary ASP.NET Files\vs\03435562\18ffd0e2\assembly\dl3\55daefc3\00637264_8ef3d301\Microsoft.CodeDom.Providers.DotNetCompilerPlatform.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731690923734270): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_MSIL\Microsoft.CSharp\v4.0_4.0.0.0__b03f5f7f11d50a3a\Microsoft.CSharp.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731690923734270): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_32\System.Data\v4.0_4.0.0.0__b77a5c561934e089\System.Data.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731690923734270): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_MSIL\System.Web.Services\v4.0_4.0.0.0__b03f5f7f11d50a3a\System.Web.Services.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731690923734270): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_MSIL\System.Drawing\v4.0_4.0.0.0__b03f5f7f11d50a3a\System.Drawing.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731690923734270): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_32\System.EnterpriseServices\v4.0_4.0.0.0__b03f5f7f11d50a3a\System.EnterpriseServices.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731690923734270): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_MSIL\System.IdentityModel\v4.0_4.0.0.0__b77a5c561934e089\System.IdentityModel.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731690923734270): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_MSIL\System.Runtime.Serialization\v4.0_4.0.0.0__b77a5c561934e089\System.Runtime.Serialization.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731690923734270): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_MSIL\System.ServiceModel\v4.0_4.0.0.0__b77a5c561934e089\System.ServiceModel.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731690923734270): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_MSIL\System.ServiceModel.Activation\v4.0_4.0.0.0__31bf3856ad364e35\System.ServiceModel.Activation.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731690923734270): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_MSIL\System.ServiceModel.Web\v4.0_4.0.0.0__31bf3856ad364e35\System.ServiceModel.Web.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731690923734270): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_MSIL\System.Activities\v4.0_4.0.0.0__31bf3856ad364e35\System.Activities.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731690923734270): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_MSIL\SMDiagnostics\v4.0_4.0.0.0__b77a5c561934e089\SMDiagnostics.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731690923734270): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_MSIL\System.Data.Linq\v4.0_4.0.0.0__b77a5c561934e089\System.Data.Linq.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731690923734270): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_MSIL\System.Security\v4.0_4.0.0.0__b03f5f7f11d50a3a\System.Security.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731690923734270): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_32\Microsoft.VisualBasic.Activities.Compiler\v4.0_10.0.0.0__b03f5f7f11d50a3a\Microsoft.VisualBasic.Activities.Compiler.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731690923734270): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_MSIL\System.Xaml.Hosting\v4.0_4.0.0.0__31bf3856ad364e35\System.Xaml.Hosting.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731690923734270): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_MSIL\System.Data.SqlXml\v4.0_4.0.0.0__b77a5c561934e089\System.Data.SqlXml.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731690923734270): Loaded 'Anonymously Hosted DynamicMethods Assembly'.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731690923734270): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_MSIL\System.Web.Mobile\v4.0_4.0.0.0__b03f5f7f11d50a3a\System.Web.Mobile.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731690923734270): Loaded 'C:\Users\NOC2\AppData\Local\Temp\Temporary ASP.NET Files\vs\03435562\18ffd0e2\App_Web_o0qm0hkk.dll'.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731690923734270): Loaded 'C:\Users\NOC2\AppData\Local\Temp\Temporary ASP.NET Files\vs\03435562\18ffd0e2\App_Web_npk4yraz.dll'.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731690923734270): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_MSIL\System.Dynamic\v4.0_4.0.0.0__b03f5f7f11d50a3a\System.Dynamic.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
The thread 0x2350 has exited with code 0 (0x0).
The thread 0x14d8 has exited with code 0 (0x0).
ready, I have already done what the documentation says add the agent and run the application and everything is fine, but I do not know why I still do not get the data in kibana, this is how the config is:
MvcApplications:

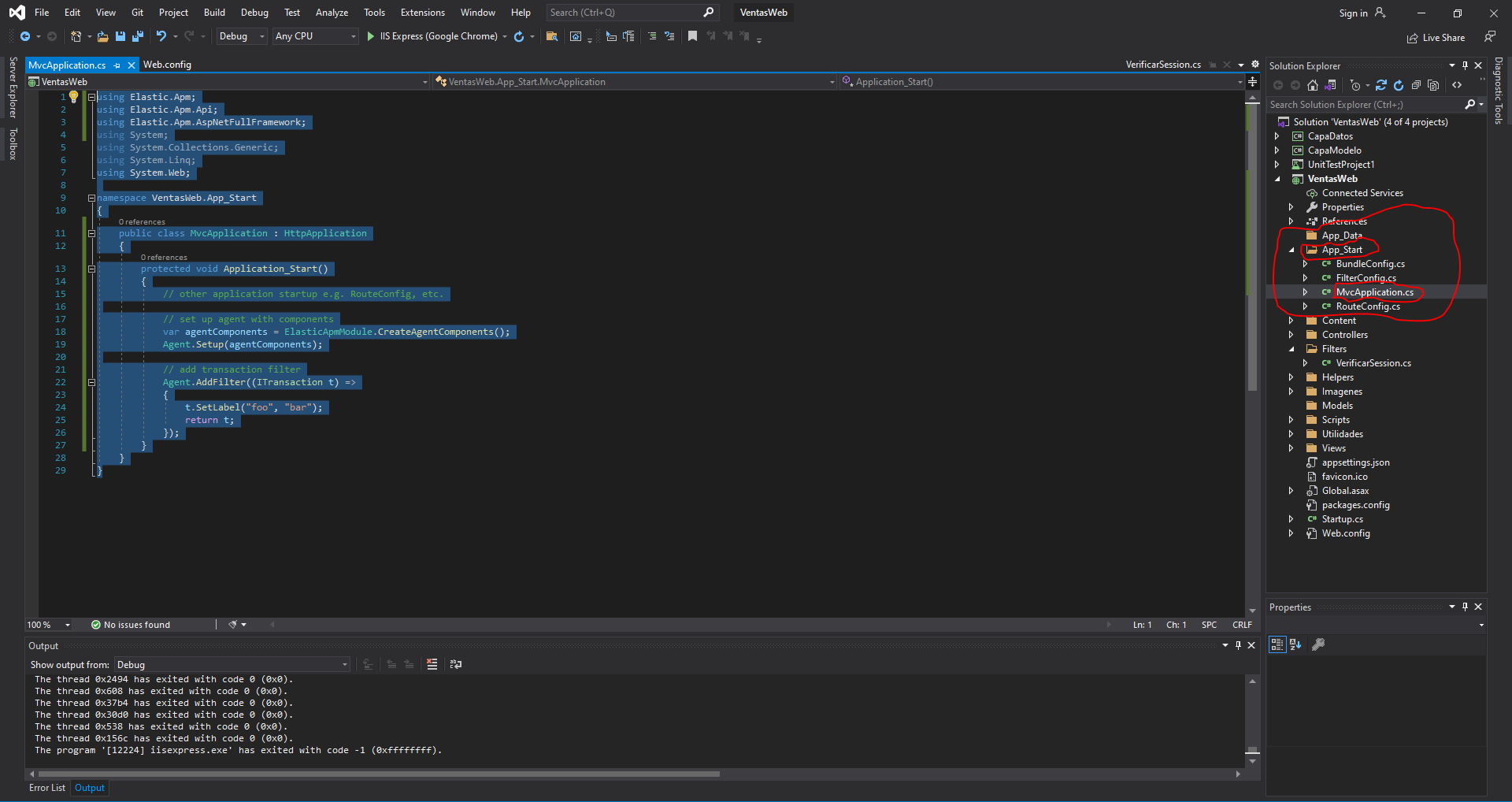

I created a class in the app_start as it says in the documentation, I don't know if it is well placed.
using Elastic.Apm;
using Elastic.Apm.Api;
using Elastic.Apm.AspNetFullFramework;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
namespace VentasWeb.App_Start
{
public class MvcApplication : HttpApplication
{
protected void Application_Start()
{
// other application startup e.g. RouteConfig, etc.
// set up agent with components
var agentComponents = ElasticApmModule.CreateAgentComponents();
Agent.Setup(agentComponents);
// add transaction filter
Agent.AddFilter((ITransaction t) =>
{
t.SetLabel("foo", "bar");
return t;
});
}
}
}
I think the issue is that this is an ASP.NET classic application, which won't pick up your apsettings.json file, therefore settings from that file are ignored. Again, if I understand the situation correctly, then you only need to follow this doc, and you don't need to follow the doc for ASP.NET Core.
Could you try to copy the ServerUrls and the SecretToken configs from your apsettings.json file into the web.config file similar to this doc?
When executing it i get the following output error:
[2021-08-11 15:39:16.511 -05:00][Error] - {CentralConfigFetcher} Exception was thrown while fetching configuration from APM Server and parsing it. ETag: `<null>'. URL: `https://d2349e51823d44eaa0c3af1ba3601b5d.apm.us-central1.gcp.cloud.es.io/config/v1/agents?service.name=VentasWeb_Clr4IntegratedAppPool'. Apm Server base URL: `https://d2349e51823d44eaa0c3af1ba3601b5d.apm.us-central1.gcp.cloud.es.io/'. WaitInterval: 5m. dbgIterationsCount: 1.
+-> Request:
Method: GET, RequestUri: 'https://d2349e51823d44eaa0c3af1ba3601b5d.apm.us-central1.gcp.cloud.es.io/config/v1/agents?service.name=VentasWeb_Clr4IntegratedAppPool', Version: 1.1, Content: <null>, Headers:
{
User-Agent: elasticapm-dotnet/1.11.0+a4eb5008af64ca52fe6973c18810c0c8c7a99554
User-Agent: System.Net.Http/4.8.4084.0
User-Agent: .NET_Framework/4.8.4400.0
}
+-> Response:
StatusCode: 503, ReasonPhrase: 'Service Unavailable', Version: 1.1, Content: System.Net.Http.StreamContent, Headers:
{
X-Cloud-Request-Id: RKOB84ywSuCg5KMQkRC-0A
X-Found-Handling-Cluster: d2349e51823d44eaa0c3af1ba3601b5d
Date: Wed, 11 Aug 2021 20:39:15 GMT
Content-Length: 74
Content-Type: application/json; charset=UTF-8
}
+-> Response body [length: 74]:
{"ok":false,"message":"The requested resource is currently unavailable."}
+-> Exception: Elastic.Apm.BackendComm.CentralConfig.CentralConfigFetcher+FailedToFetchConfigException: HTTP status code is Service Unavailable (503) which most likely means that APM Server supports the central configuration endpoint and Kibana connection is enabled, but Kibana connection is unavailable
at Elastic.Apm.BackendComm.CentralConfig.CentralConfigResponseParser.InterpretResponseStatusCode(HttpResponseMessage httpResponse, WaitInfoS waitInfo)
at Elastic.Apm.BackendComm.CentralConfig.CentralConfigResponseParser.ParseHttpResponse(HttpResponseMessage httpResponse, String httpResponseBody)
at Elastic.Apm.BackendComm.CentralConfig.CentralConfigFetcher.<WorkLoopIteration>d__15.MoveNext()
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731879449923769): Loaded 'C:\Users\NOC2\AppData\Local\Temp\Temporary ASP.NET Files\vs\03435562\18ffd0e2\assembly\dl3\8fde0810\8f1e7e67_358ed701\CapaModelo.dll'. Symbols loaded.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731879449923769): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_MSIL\System.Web.Mobile\v4.0_4.0.0.0__b03f5f7f11d50a3a\System.Web.Mobile.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731879449923769): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_MSIL\System.Web.RegularExpressions\v4.0_4.0.0.0__b03f5f7f11d50a3a\System.Web.RegularExpressions.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731879449923769): Loaded 'C:\Users\NOC2\AppData\Local\Temp\Temporary ASP.NET Files\vs\03435562\18ffd0e2\App_Web_k1wqpa4c.dll'.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731879449923769): Loaded 'C:\Users\NOC2\AppData\Local\Temp\Temporary ASP.NET Files\vs\03435562\18ffd0e2\App_Web_t2tto2rk.dll'.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731879449923769): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_MSIL\Microsoft.CSharp\v4.0_4.0.0.0__b03f5f7f11d50a3a\Microsoft.CSharp.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731879449923769): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_MSIL\System.Dynamic\v4.0_4.0.0.0__b03f5f7f11d50a3a\System.Dynamic.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731879449923769): Loaded 'C:\Users\NOC2\AppData\Local\Temp\Temporary ASP.NET Files\vs\03435562\18ffd0e2\assembly\dl3\9c46d5db\002397f9_6c18cf01\WebGrease.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731879449923769): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_MSIL\System.Runtime.Serialization\v4.0_4.0.0.0__b77a5c561934e089\System.Runtime.Serialization.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731879449923769): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_MSIL\System.Numerics\v4.0_4.0.0.0__b77a5c561934e089\System.Numerics.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
'iisexpress.exe' (CLR v4.0.30319: /LM/W3SVC/2/ROOT-1-132731879449923769): Loaded 'C:\WINDOWS\Microsoft.Net\assembly\GAC_32\System.Data\v4.0_4.0.0.0__b77a5c561934e089\System.Data.dll'. Skipped loading symbols. Module is optimized and the debugger option 'Just My Code' is enabled.
[2021-08-11 15:39:26.752 -05:00][Error] - {PayloadSenderV2} Failed sending event. Events intake API absolute URL: https://d2349e51823d44eaa0c3af1ba3601b5d.apm.us-central1.gcp.cloud.es.io/intake/v2/events. APM Server response: status code: ServiceUnavailable, content:
{"ok":false,"message":"The requested resource is currently unavailable."}
