In my index, I am tracking the performance of widgets. I have the install date of each widget. I would like to determine which widgets have had the most number of parts replaced on them per time, accounting for the fact that not all widgets were installed at the same time.
How would I enter the formula: (total number of parts replaced on a widget)/(number of days that widget has been in service) in Kibana?
Thanks!
It's a really interesting question. I think we can do this with Timelion, but I would like to ask how many widgets you have and if the installation date is on each document or if it is stored in a single document.
Do you have few simple documents to play with?
Hi Luca, there are about 50 widgets. Each document contains that widget's install date. Is this something that can be done in Kibana? I was looking at the Average Bucket Aggregation - but I'm having a hard time understanding.
If not directly feasible on Kibana I'll propose to use transform Jobs.
I can't right now but I'll come back on this post.
What version are you on?
I am on version 6.8. Thanks!
PUT widget?include_type_name=true
{
"mappings": {
"_doc": {
"properties": {
"widget_id": {
"type": "long"
},
"installation_date": {
"type": "date"
},
"@timestamp": {
"type": "date"
},
"replaced_parts": {
"type": "short"
}
}
}
}
}
PUT widget/_doc/1
{
"widget_id": 1,
"installation_date": "2020-03-27T07:47:16.316Z",
"@timestamp": "2020-04-27T07:47:16.316Z",
"replaced_parts": 0
}
PUT widget/_doc/2
{
"widget_id": 2,
"installation_date": "2019-08-07T07:47:16.316Z",
"@timestamp": "2020-04-27T07:47:16.316Z",
"replaced_parts": 0
}
PUT widget/_doc/3
{
"widget_id": 3,
"installation_date": "2018-08-07T07:47:16.316Z",
"@timestamp": "2020-04-27T07:47:16.316Z",
"replaced_parts": 0
}
PUT widget/_doc/4
{
"widget_id": 1,
"installation_date": "2020-04-27T07:47:16.316Z",
"@timestamp": "2020-04-27T07:47:16.316Z",
"replaced_parts": 1
}
PUT widget/_doc/5
{
"widget_id": 2,
"installation_date": "2019-08-07T07:47:16.316Z",
"@timestamp": "2019-12-27T07:47:16.316Z",
"replaced_parts": 1
}
PUT widget/_doc/6
{
"widget_id": 3,
"installation_date": "2018-08-07T07:47:16.316Z",
"@timestamp": "2019-04-27T07:47:16.316Z",
"replaced_parts": 2
}
PUT widget/_doc/7
{
"widget_id": 1,
"installation_date": "2020-04-27T07:47:16.316Z",
"@timestamp": "2020-04-27T07:47:16.316Z",
"replaced_parts": 0
}
PUT widget/_doc/8
{
"widget_id": 2,
"installation_date": "2019-08-07T07:47:16.316Z",
"@timestamp": "2020-01-27T07:47:16.316Z",
"replaced_parts": 1
}
PUT widget/_doc/9
{
"widget_id": 3,
"installation_date": "2018-08-07T07:47:16.316Z",
"@timestamp": "2019-04-27T07:47:16.316Z",
"replaced_parts": 3
}
GET widget/_search
{
"size": 0,
"aggs": {
"widget": {
"terms": {
"field": "widget_id",
"size": 100
},
"aggs": {
"installation_date": {
"min": {
"field": "installation_date"
}
},
"repaired_parts": {
"sum": {
"field": "replaced_parts"
}
},
"ratio": {
"bucket_script": {
"buckets_path": {
"installation_date": "installation_date",
"repaired_parts": "repaired_parts"
},
"script": """
ZonedDateTime now = ZonedDateTime.ofInstant(Instant.ofEpochMilli(new Date().getTime()), ZoneId.of('Z'));
ZonedDateTime installation_date = ZonedDateTime.ofInstant(Instant.ofEpochMilli(params.installation_date.longValue()), ZoneId.of('Z'));
return params.repaired_parts / Duration.between(installation_date, now).toDays();
"""
}
}
}
}
}
}
{
"took" : 2,
"timed_out" : false,
"_shards" : {
"total" : 5,
"successful" : 5,
"skipped" : 0,
"failed" : 0
},
"hits" : {
"total" : 9,
"max_score" : 0.0,
"hits" : [ ]
},
"aggregations" : {
"widget" : {
"doc_count_error_upper_bound" : 0,
"sum_other_doc_count" : 0,
"buckets" : [
{
"key" : 1,
"doc_count" : 3,
"installation_date" : {
"value" : 1.585295236316E12,
"value_as_string" : "2020-03-27T07:47:16.316Z"
},
"repaired_parts" : {
"value" : 1.0
},
"ratio" : {
"value" : 0.029411764705882353
}
},
{
"key" : 2,
"doc_count" : 3,
"installation_date" : {
"value" : 1.565164036316E12,
"value_as_string" : "2019-08-07T07:47:16.316Z"
},
"repaired_parts" : {
"value" : 2.0
},
"ratio" : {
"value" : 0.00749063670411985
}
},
{
"key" : 3,
"doc_count" : 3,
"installation_date" : {
"value" : 1.533628036316E12,
"value_as_string" : "2018-08-07T07:47:16.316Z"
},
"repaired_parts" : {
"value" : 5.0
},
"ratio" : {
"value" : 0.007911392405063292
}
}
]
}
}
}
If you have to display a table, the closest result I got is the following, which requires defining a scripted field I named installation_since_days in the index pattern:
ZonedDateTime now = ZonedDateTime.ofInstant(Instant.ofEpochMilli(new Date().getTime()), ZoneId.of('Z'));
ZonedDateTime installation_date = ZonedDateTime.ofInstant(Instant.ofEpochMilli(doc['installation_date'][0].getMillis()), ZoneId.of('Z'));
return Duration.between(installation_date, now).toDays();
You will not get the ratio, but the raw numbers.
The enhanced table plugin by @fbaligand should help you compute the ratio.
{
"$schema": "https://vega.github.io/schema/vega-lite/v2.json",
"data": {
"url": {
"%context%": true,
"index": "widget",
"body": {
"size": 0,
"aggs": {
"widget": {
"terms": {"field": "widget_id", "size": 100},
"aggs": {
"installation_date": {"min": {"field": "installation_date"}},
"repaired_parts": {"sum": {"field": "replaced_parts"}},
"ratio": {
"bucket_script": {
"buckets_path": {
"installation_date": "installation_date",
"repaired_parts": "repaired_parts"
},
"script": "ZonedDateTime now = ZonedDateTime.ofInstant(Instant.ofEpochMilli(new Date().getTime()), ZoneId.of('Z'));ZonedDateTime installation_date = ZonedDateTime.ofInstant(Instant.ofEpochMilli(params.installation_date.longValue()), ZoneId.of('Z')); return params.repaired_parts / Duration.between(installation_date, now).toDays();"
}
}
}
}
}
}
},
"format": {"property": "aggregations.widget.buckets"}
},
"mark": "bar",
"encoding": {
"x": {"field": "key", "type": "ordinal", "axis": {"title": false}},
"y": {"field": "ratio.value", "type": "quantitative", "axis": {"title": "Ratio"}}
}
}
Visual result:
Elasticsearch SQL requires a Basic license.
This works only with 7.5+ because the DATE_DIFF was introduced on 7.5.
GET _sql?format=txt
{
"query": "SELECT widget_id, SUM(replaced_parts)/DATE_DIFF('days', MIN(installation_date), TODAY()) AS ratio FROM widget GROUP BY widget_id"
}
widget_id | ratio
---------------+--------------------
1 |0.030303030303030304
2 |0.007518796992481203
3 |0.00792393026941363
This enables you to use Canvas!
As a Table:
Expression code:
filters
| essql
query="SELECT widget_id, SUM(replaced_parts)/DATE_DIFF('days', MIN(installation_date), TODAY()) AS ratio FROM widget GROUP BY widget_id"
| table
| render

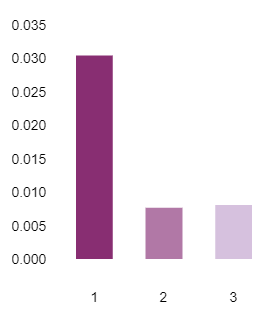

Or as a histogram:
Expression code:
filters
| essql
query="SELECT CAST(widget_id AS INTEGER), SUM(replaced_parts)/DATE_DIFF('days', MIN(installation_date), TODAY()) AS ratio FROM widget GROUP BY widget_id"
| alterColumn "widget_id" type="string"
| pointseries x="widget_id" y="ratio" color="widget_id"
| plot defaultStyle={seriesStyle bars=0.5} legend=false
| render

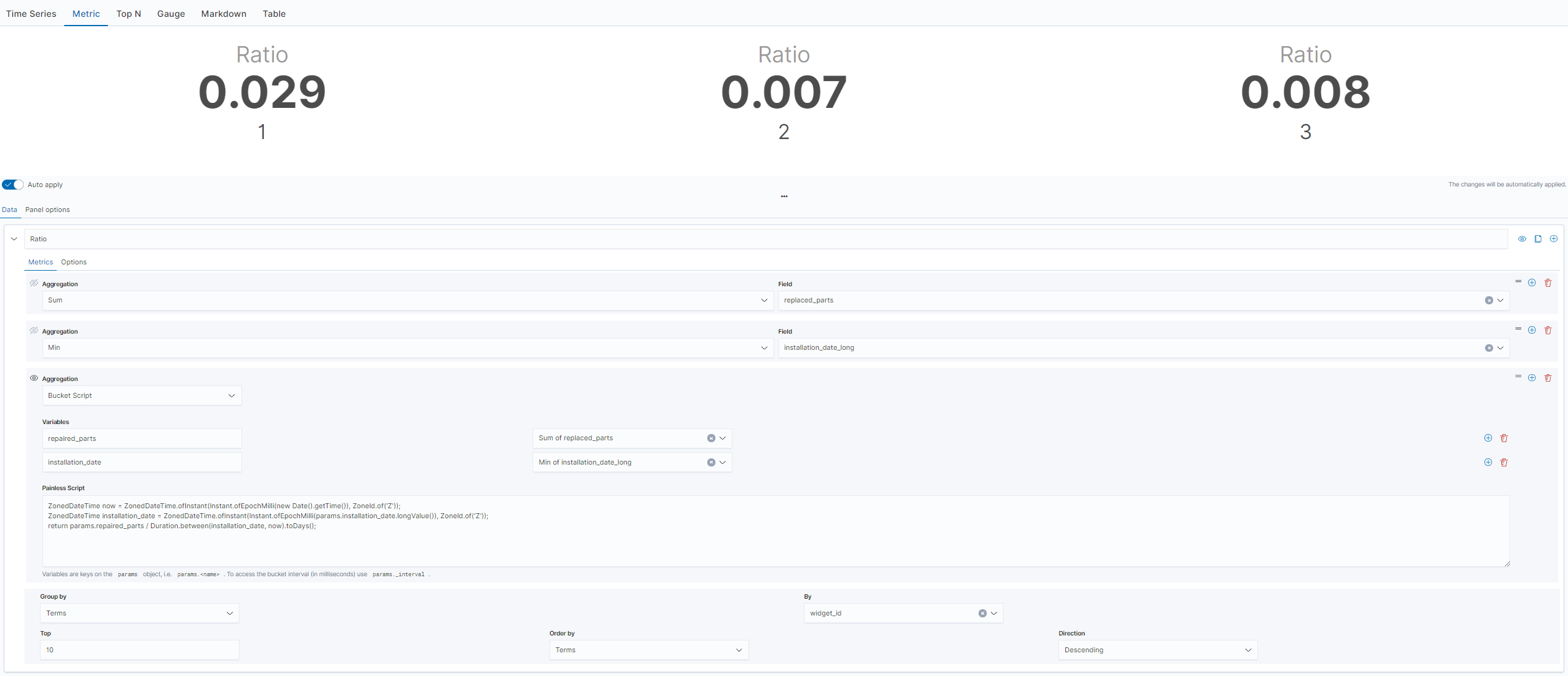

Another solution might exist with TSVB, but it requires to index the installation_date as long, expressed in epoch as min/max aggregations work only on numeric values.
This is an Ingest pipeline to index the installation_date converting it into a long into the field installation_date_long while indexing (you have to pass ?pipeline=convert_to_long):
PUT _ingest/pipeline/convert_to_long
{
"description": "converts the date to epochmilli (long)",
"processors": [
{
"script": {
"lang": "painless",
"source": "ctx.installation_date_long = ZonedDateTime.parse(ctx.installation_date).toInstant().toEpochMilli();"
}
}
]
}
It would work both for 6.8 and 7.x.
On 7.2+ we introduced Dataframes / Transform Jobs.
It is a way to define a continuous job which turns out time-based data into entity centric indices.
In your case, the entity is the widget.
POST _transform/_preview
{
"source": {
"index": [
"widget"
]
},
"pivot": {
"group_by": {
"widget_id": {
"terms": {
"field": "widget_id"
}
}
},
"aggregations": {
"installation_date": {
"min": {
"field": "installation_date"
}
},
"repaired_parts": {
"sum": {
"field": "replaced_parts"
}
},
"ratio" : {
"bucket_script": {
"buckets_path": {
"installation_date": "installation_date",
"repaired_parts": "repaired_parts"
},
"script": """
ZonedDateTime now = ZonedDateTime.ofInstant(Instant.ofEpochMilli(new Date().getTime()), ZoneId.of('Z'));
ZonedDateTime installation_date = ZonedDateTime.ofInstant(Instant.ofEpochMilli(params.installation_date.longValue()), ZoneId.of('Z'));
return params.repaired_parts / Duration.between(installation_date, now).toDays();
"""
}
}
}
}
}
Full transform:
PUT _transform/widget_process
{
"source": {
"index": [
"widget"
]
},
"pivot": {
"group_by": {
"widget_id": {
"terms": {
"field": "widget_id"
}
}
},
"aggregations": {
"installation_date": {
"min": {
"field": "installation_date"
}
},
"repaired_parts": {
"sum": {
"field": "replaced_parts"
}
},
"ratio": {
"bucket_script": {
"buckets_path": {
"installation_date": "installation_date",
"repaired_parts": "repaired_parts"
},
"script": "ZonedDateTime now = ZonedDateTime.ofInstant(Instant.ofEpochMilli(new Date().getTime()), ZoneId.of('Z')); ZonedDateTime installation_date = ZonedDateTime.ofInstant(Instant.ofEpochMilli(params.installation_date.longValue()), ZoneId.of('Z')); return params.repaired_parts / Duration.between(installation_date, now).toDays();"
}
}
}
},
"dest": {
"index": "widget_entity"
},
"sync": {
"time": {
"field": "@timestamp",
"delay": "1h"
}
}
}
Thank you Luca, this looks super cool!
