Table visualization with array data

Elastic Stack Kibana
1

Hi,
I'm using table visualization in ELK 8.17. The doc format are as following:

"_source": {
   "service": "service1",
   "detail": [
      {
        "name": "microservice1",
        "duration_time": 0.180120
      },
      {
        "name": "microservice2",
        "duration_time": 0.089255
      },
      {
        "name": "microservice3",
        "duration_time": 0.132267
      },
      ...
    ]
}

I want to get a table visulization as following:

Service Name Microservice Name Duration Time
service1 microservice3 0.082923
service1 microservice2 0.102923
service1 microservice1 0.182923
... ... ...

I tried with LENS by aggregation by service, name and duration_time, the result is not what I want. It's a cartesian product of name and duration_time. I also tried MV_ZIP name and duration first, then MV_EXPAND the zipped result with ESQL. It's not cartesian product now, but the name and duration_time are not in order. How can I get what I want?

2

Hi @richard2025 ,

Have you considered using Runtime Fields to create a calculated field that preserves the relationship between the data in the array?

3

Hi @Alex_Salgado-Elastic，

Thanks for your reply. I tried with Runtime Fields as following:

def details = params._source.detail;
def result = "";
if (details != null && details.length > 0) {
  for (int i = 0; i < details.length; i++) {
    result += details[i].name + ":" + details[i].duration_time + ";";
  }

  if (result.endsWith(";") {
    result = result.substring(0, result.length() - 1);
  }
}
emit(result)

The new field contains a string with the correct relationship of name and duration_time. How to split the new field into rows in visualization？

4

Hello @richard2025

Could you please try using below ES|QL and see if it meets your requirement :

FROM kib-dash
| EVAL service_name = service
| EVAL paired = MV_ZIP(detail.name, TO_STRING(detail.duration_time))
| MV_EXPAND paired
| EVAL microservice_name = MV_FIRST(SPLIT(paired, ",")),
       duration_time = TO_DOUBLE(MV_LAST(SPLIT(paired, ",")))
| KEEP service_name, microservice_name, duration_time
| SORT service_name ASC, microservice_name ASC
| LIMIT 1000

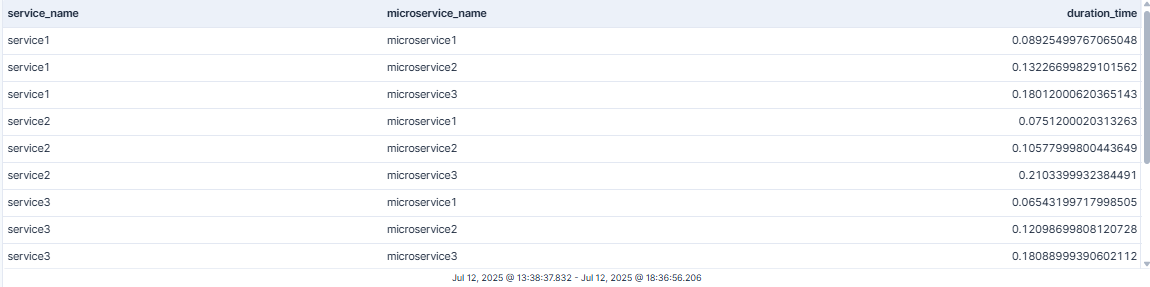

image1150×287 24.9 KB

Thanks!!

5

Hello @Tortoise

Thanks for your reply. This is not what I want as the relationship of name and duration_time is not preserved. According to the document, The order that multivalued fields are read from underlying storage is not guaranteed.
