Elastic Security is missing in kibana [9.0.2]

Elastic Security
1

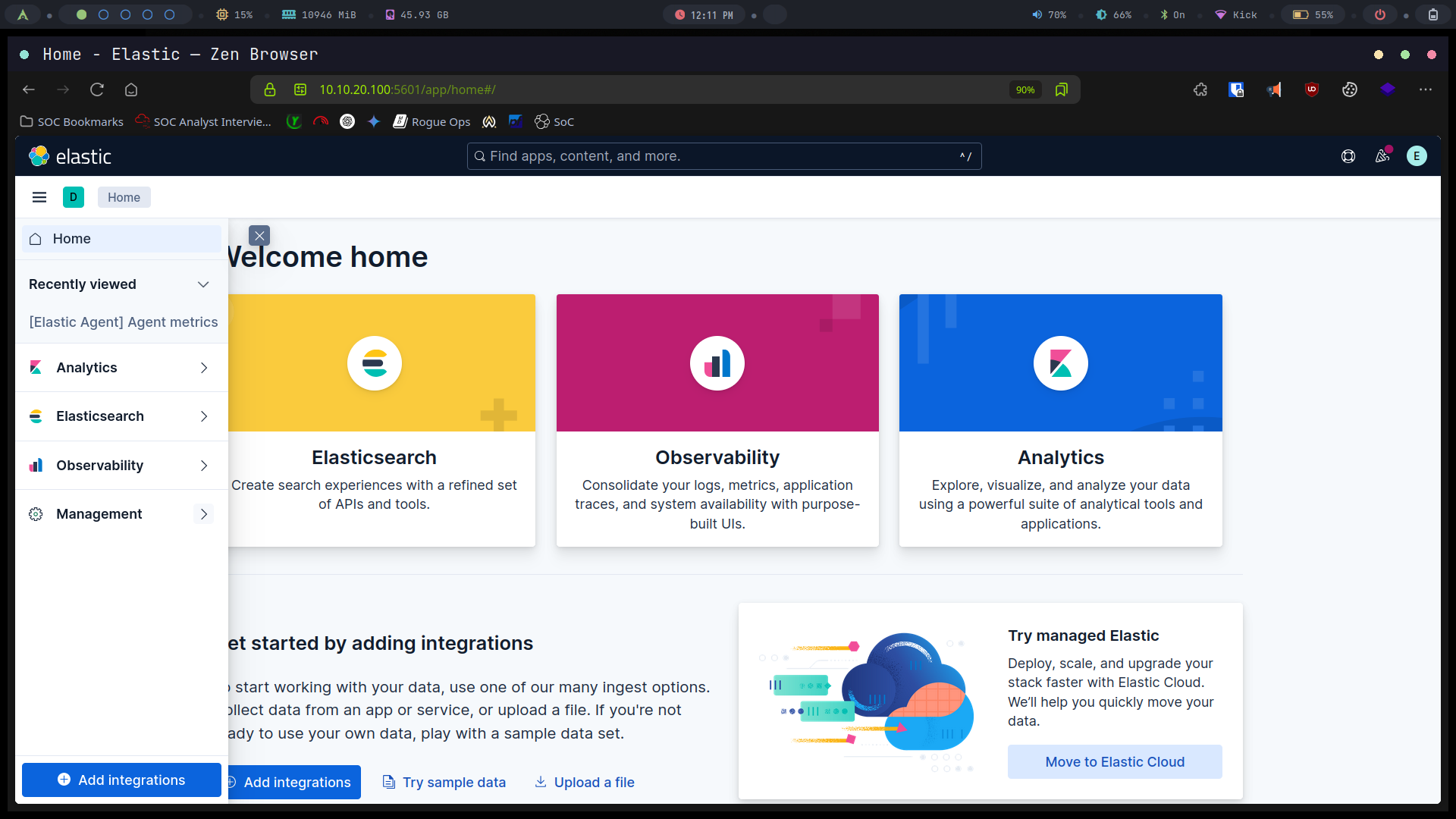

image1920×1080 296 KB

Elastic Security is not showing up, I installed via docker compose.

kibana.yml

server.host: "0.0.0.0"
telemetry.enabled: "false"
xpack.fleet.packages:
  - name: fleet_server
    version: latest
  - name: system
    version: latest
  - name: elastic_agent
    version: latest
xpack.fleet.agentPolicies:
  - name: Fleet-Server-Policy
    id: fleet-server-policy
    namespace: default
    monitoring_enabled:
      - logs
      - metrics
    package_policies:
      - name: fleet_server-1
        package:
          name: fleet_server
      - name: system-1
        package:
          name: system
      - name: elastic_agent-1
        package:
          name: elastic_agent

docker-compose.yml

  es01:
    depends_on:
      setup:
        condition: service_healthy
    image: docker.elastic.co/elasticsearch/elasticsearch:${STACK_VERSION}
    labels:
      co.elastic.logs/module: elasticsearch
    volumes:
      - certs:/usr/share/elasticsearch/config/certs
      - esdata01:/usr/share/elasticsearch/data
      - suricata_logs:/var/log/suricata
    ports:
      - ${ES_PORT}:9200
    environment:
      - node.name=es01
      - cluster.name=${CLUSTER_NAME}
      - discovery.type=single-node
      - ELASTIC_PASSWORD=${ELASTIC_PASSWORD}
      - bootstrap.memory_lock=true
      - xpack.security.enabled=true
      - xpack.security.authc.api_key.enabled=true
      - xpack.security.http.ssl.enabled=true
      - xpack.security.http.ssl.key=certs/es01/es01.key
      - xpack.security.http.ssl.certificate=certs/es01/es01.crt
      - xpack.security.http.ssl.certificate_authorities=certs/ca/ca.crt
      - xpack.security.transport.ssl.enabled=true
      - xpack.security.transport.ssl.key=certs/es01/es01.key
      - xpack.security.transport.ssl.certificate=certs/es01/es01.crt
      - xpack.security.transport.ssl.certificate_authorities=certs/ca/ca.crt
      - xpack.security.transport.ssl.verification_mode=certificate
      - xpack.license.self_generated.type=${LICENSE}
    mem_limit: ${ES_MEM_LIMIT}
    ulimits:
      memlock:
        soft: -1
        hard: -1
    healthcheck:
      test:
        [
          "CMD-SHELL",
          "curl -s --cacert config/certs/ca/ca.crt https://localhost:9200 | grep -q 'missing authentication credentials'",
        ]
      interval: 10s
      timeout: 10s
      retries: 120

  kibana:
    depends_on:
      es01:
        condition: service_healthy
    image: docker.elastic.co/kibana/kibana:${STACK_VERSION}
    labels:
      co.elastic.logs/module: kibana
    volumes:
      - certs:/usr/share/kibana/config/certs
      - kibanadata:/usr/share/kibana/data
      - ./kibana.yml:/usr/share/kibana/config/kibana.yml:ro
    ports:
      - ${KIBANA_PORT}:5601
    environment:
      - SERVERNAME=kibana
      - ELASTICSEARCH_HOSTS=https://es01:9200
      - ELASTICSEARCH_USERNAME=kibana_system
      - ELASTICSEARCH_PASSWORD=${KIBANA_PASSWORD}
      - ELASTICSEARCH_SSL_CERTIFICATEAUTHORITIES=config/certs/ca/ca.crt
      - XPACK_SECURITY_ENCRYPTIONKEY=${ENCRYPTION_KEY}
      - XPACK_ENCRYPTEDSAVEDOBJECTS_ENCRYPTIONKEY=${ENCRYPTION_KEY}
      - XPACK_REPORTING_ENCRYPTIONKEY=${ENCRYPTION_KEY}
      - XPACK_REPORTING_KIBANASERVER_HOSTNAME=localhost
      - SERVER_SSL_ENABLED=true
      - SERVER_SSL_CERTIFICATE=config/certs/kibana/kibana.crt
      - SERVER_SSL_KEY=config/certs/kibana/kibana.key
      - SERVER_SSL_CERTIFICATEAUTHORITIES=config/certs/ca/ca.crt
    mem_limit: ${KB_MEM_LIMIT}
    healthcheck:
      test:
        [
          "CMD-SHELL",
          "curl -I -s --cacert config/certs/ca/ca.crt https://localhost:5601 | grep 'location: /login'",
        ]
      interval: 10s
      timeout: 10s
      retries: 120
2

Hello @Anacleto_Barzetti

Welcome to the community.

Please go to Stack Management > Kibana > Spaces > Edit Space > Enable security so that it can be visible

image1543×415 37.4 KB

Thanks!!

3

Hello. First of all, thank you for such a quick response.

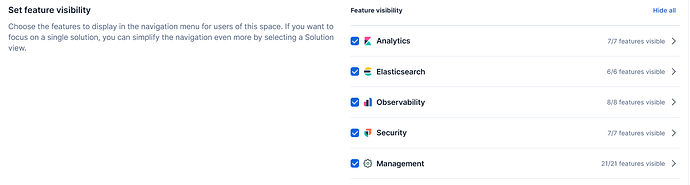

image1579×552 67.2 KB

I don't see the security feature here. I'm using 9.0.2 version.

Thank you.
