Painless Script not giving desired output

Elastic Stack Kibana
1

Hello,
I want to create an additional field in index having combined values of mount point
and hostname.
ex: /dev/run vxw001m001, / vas002m002 ....

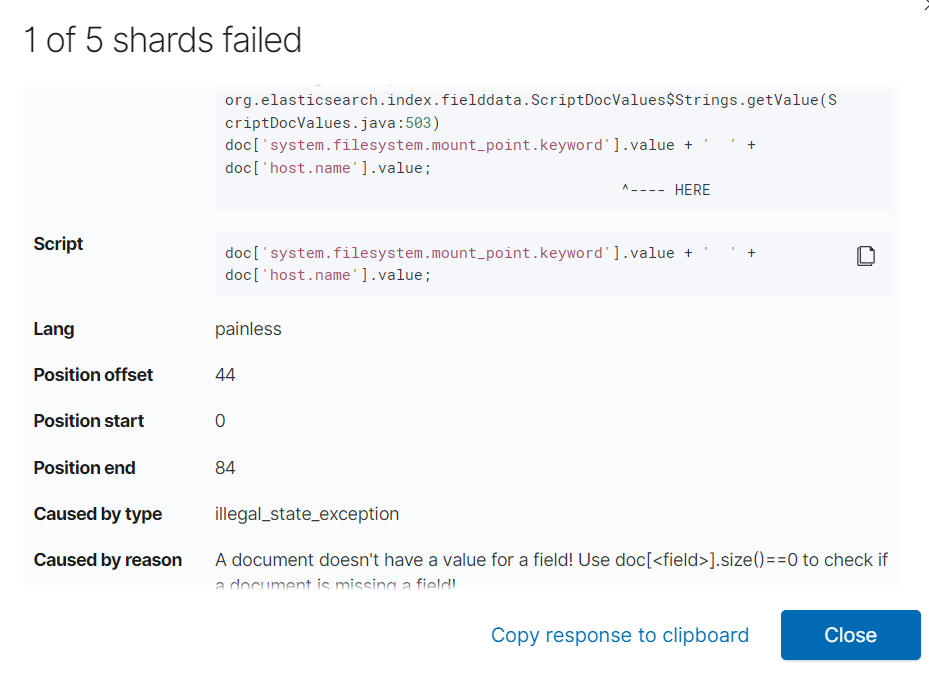

when tried to create scripted field in index patter in kibana,getting below exception,tried to work around it but unable to get output.Any suggestion would be helpful

doc['system.filesystem.mount_point.keyword'].value + ' ' + doc['host.name'].value;

Caused by type

illegal_state_exception

Caused by reason

A document doesn't have a value for a field! Use doc[].size()==0 to check if a document is missing a field!

Did tried to check for null values and size,but not sure about exact query
@spinscale can you plz help in this?

mp
mp875×579 42.8 KB

mp2
mp21234×745 49.7 KB

mp3
mp3929×674 47 KB

2

Are you sure that this field 'system.filesystem.mount_point.keyword' exists and has a value in every each document ?

3

@Yazid_S Thanks for your quick response! Yes it exists.

yes
yes838×923 65.9 KB

4

On your screenshot, it seems to be 'system.filesystem.mount_point' not 'system.filesystem.mount_point.keyword'

5

Mybad,you are correct its system.filesystem.mount_point and it does has mising values,what is the right way to get the desired output?

kk
kk360×646 28 KB

6

You just need to add an if statement on ' system.filesystem.mount_point' not null. Then you adapt your script and your output depending on if ' system.filesystem.mount_point' is null or not.

7

Below is the image I'm trying to achive in kibana...need to dispaly only critical mount points above
80% usage...for this I'm unable to get hostname in visual due to limited scope of elastic aggregation in kibana.The data is coming from metricbeat.

desired
desired721×294 5.97 KB

aggrs
aggrs1557×648 33.4 KB

8

You should adapt your topic. Your original question is about an error on Painless Script. Do you still have the same problem ?

9

I'm not sure how to make the exact script for this,still not getting the desired values.

if(doc['system.filesystem.mount_point'].value != null)
{
  return doc['system.filesystem.mount_point'].value + '  ' + doc['host.name'].value;
}
else
{
    return "null"
}

kkk
kkk1507×460 39.3 KB

10

You should also check that doc['host.name'] is not null.
Have you tried to replace doc['FieldName'] by params._source['FieldName'] ?

if(params._source['system.filesystem.mount_point'] != null && params._source['host.name'] != null)
{
  return params._source['system.filesystem.mount_point'] + '  ' + params._source['host.name'];
}
return "null";
11

Thanks again! Tried above script,now filed is created but all value are null.

12

That means that both fields are never not null in the same document.
