Rename field after transform with processor / pipeline does not work

Elastic Stack Kibana
1

Hello everybody

I have a transform job that writes the following fields from one index into a new index like so:

Group By:
ap.mac_address_normalized

Aggregated fields:
ap.hostname -> raw1.ap.hostname
ap.mac_address -> raw2.ap.mac_address
ap.radio_mac_address -> raw3.ap.radio_mac_address

This is the json of my transform job:

{
  "id": "ap_lookup",
  "authorization": {
    "roles": [
      "superuser"
    ]
  },
  "version": "10.0.0",
  "create_time": 1753697007593,
  "source": {
    "index": [
      "logs-network-devices.log-default"
    ],
    "query": {
      "match_all": {}
    }
  },
  "dest": {
    "index": "ap_lookup",
    "pipeline": "ap-lookup-flatten-fields"
  },
  "frequency": "60s",
  "sync": {
    "time": {
      "field": "@timestamp",
      "delay": "60s"
    }
  },
  "pivot": {
    "group_by": {
      "ap.mac_address_normalized": {
        "terms": {
          "field": "ap.mac_address_normalized"
        }
      }
    },
    "aggregations": {
      "raw1": {
        "top_metrics": {
          "metrics": [
            {
              "field": "ap.hostname"
            }
          ],
          "sort": {
            "@timestamp": "desc"
          }
        }
      },
      "raw2": {
        "top_metrics": {
          "metrics": [
            {
              "field": "ap.mac_address"
            }
          ],
          "sort": {
            "@timestamp": "desc"
          }
        }
      },
      "raw3": {
        "top_metrics": {
          "metrics": [
            {
              "field": "ap.radio_mac_address"
            }
          ],
          "sort": {
            "@timestamp": "desc"
          }
        }
      }
    }
  },
  "settings": {}
}

Afterwards I want to flatten the fields out to be just a keyword / no object.

raw1.ap.hostname -> hostname
raw2.ap.mac_address -> mac_address
raw3.ap.radio_mac_address -> radio_mac_address

The problem is that my ingest pipeline does nothing when I configure a rename processor that looks like this (this is just for mac_address but it should be the same for the others):

[
  {
    "rename": {
      "field": "raw2.ap.mac_address",
      "target_field": "mac_address",
      "ignore_failure": true
    }
  }
]

I have also tried a Set Processor with same result:

[
  {
    "set": {
      "field": "mac_address",
      "copy_from": "raw2.ap.mac_address",
      "ignore_failure": true
    }
  }
]

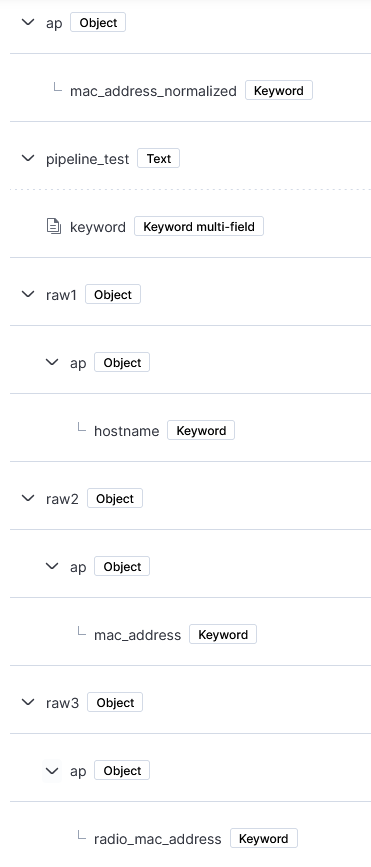

The mappings of the new index looks like this:

grafik
grafik371×867 21.9 KB

In Dev Tools with the command GET ap_lookup/_mapping it looks like this:

{
  "ap_lookup": {
    "mappings": {
      "_meta": {
        "created_by": "transform",
        "_transform": {
          "transform": "ap_lookup",
          "version": {
            "created": "10.0.0"
          },
          "creation_date_in_millis": 1753703871655
        }
      },
      "properties": {
        "ap": {
          "properties": {
            "mac_address_normalized": {
              "type": "keyword"
            }
          }
        },
        "pipeline_test": {
          "type": "text",
          "fields": {
            "keyword": {
              "type": "keyword",
              "ignore_above": 256
            }
          }
        },
        "raw1": {
          "properties": {
            "ap": {
              "properties": {
                "hostname": {
                  "type": "keyword"
                }
              }
            }
          }
        },
        "raw2": {
          "properties": {
            "ap": {
              "properties": {
                "mac_address": {
                  "type": "keyword"
                }
              }
            }
          }
        },
        "raw3": {
          "properties": {
            "ap": {
              "properties": {
                "radio_mac_address": {
                  "type": "keyword"
                }
              }
            }
          }
        }
      }
    }
  }
}

And this is a json from one document (I just have changed the values due to compliance reasons). For me the structure here looks different as for example ap.mac_address is on one level and does not look like an object:

{
  "_index": "ap_lookup",
  "_id": "IFGFIQFE121083jjfoef",
  "_version": 1,
  "_score": 0,
  "_source": {
    "raw1": {
      "ap.hostname": "AP-01"
    },
    "raw3": {
      "ap.radio_mac_address": "AB12.CD34.EF56"
    },
    "ap": {
      "mac_address_normalized": "AB12CD34EF56"
    },
    "raw2": {
      "ap.mac_address": "1ED1.2DC3.34ED"
    }
  },
  "fields": {
    "raw2.ap.mac_address": [
      "1ED1.2DC3.34ED"
    ],
    "raw1.ap.hostname": [
      "AP-01"
    ],
    "ap.mac_address_normalized": [
      "AB12CD34EF56"
    ],
    "raw3.ap.radio_mac_address": [
      "AB12.CD34.EF56"
    ]
  }
}

I assured, that the pipeline is working as expected as I created a test field via a set processor that creates a field pipeline_test with the value success. That worked so I know that the pipeline is used.

I also had the feeling, that the issue might be that the new field has the same name as the underlying field of the object (raw2.ap.mac_address <> mac_address) but i also tried different names for the target field like just address or mac without success.

It feels like that it can not find the field raw2.ap.mac_address although the mapping is defined as such. Here I also just tried ap.mac_address and mac_address.

I am fairly new to Elastic so please have mercy :slight_smile: I hope I explained it well enough. Please let me know if you need more details. Thank you very much in advance!

2

I have found a solution that works and I figured out the issue.

The transform job does not create an object from for example ap.hostname into an object like:

"raw1": {
 "ap": {
   "hostname": "AP-01",

But the ap.hostname is a key and the dot does not mean, that it is one level below of the object. ap.hostname is just the name of the field itself:

 "raw3": {
      "ap.hostname": "AP-01"

Therefore I can not use a simple set or rename processor as I can not address the field as the processor thinks I mean the field hostname in this object and not ap.hostname. I also tried a processor like this with \ to escape the dot but it does not understand what I mean:

{
  "set": {
    "field": "hostname",
    "value": "{{raw1.\\ap.hostname}}"
  }
}

Therefore I wrote a little script processor like this:

 if (ctx.raw1 != null && ctx.raw1.containsKey('ap.hostname')) {
        ctx.hostname = ctx.raw1['ap.hostname'];

This works fine but I would have been happy if I could have used the build in processors as I want to handle thinks as uncomplicated as can be.

Hope there is a better solution in the future to address those kind of fields. Thank you all nonetheless!

3

@StevenGR

Sorry just saw this

As you figured out on your own ingest pipeline/ processors cannot work on dotted field names.

So you can use this to expand them into objects

2 Likes
4

I have not seen this processor but this will work perfectly! Thank you so much for your help :slight_smile:

1 Like
