Row encoding and autosize makes chart not appear

[es_net (Ethan)]

Hi, I am attempting to make charts similar to Faceting a Plot into a Trellis Plot | Vega-Lite with multiple rows of charts, split using the row encoding.
(The link above should go to the section titled ' Row Facet (with Row Encoding)')

I don't want the chart to autosize, so have added autosize: none and height: 200 and width: 200.

However, then no chart appears, and in the debug it shows height and width as -10, with child_height and child_width at 200.

If I remove the row section it does work to resize the chart to 200x200.

Similarly if I remove autosize/height/width the chart renders multiple (v. large) charts in a row.

Vega spec (URL section removed as it contained data I can't share - the data request works fine):

{
  "$schema": "https://vega.github.io/schema/vega-lite/v4.json",
  "autosize": {
    "type": "none",
    "contains": "padding"
  },
  "height": 200,
  "width": 200,
  "data": {
    "format": {
      "property": "aggregations.time_buckets.buckets"
    },
    "url": {},
    "values": {
      "took": 4,
      "timed_out": false,
      "_shards": {
        "total": 1,
        "successful": 1,
        "skipped": 0,
        "failed": 0
      },
      "hits": {
        "total": 6316,
        "max_score": null,
        "hits": []
      },
      "aggregations": {
        "time_buckets": {
          "buckets": [
            {
              "key_as_string": "1614556800",
              "key": 1614556800000,
              "doc_count": 3540,
              "alarms": {
                "value": 0
              },
              "cols": {
                "buckets": {
                  "incident": {
                    "doc_count": 2506
                  },
                  "servicerequest": {
                    "doc_count": 942
                  }
                }
              }
            },
            {
              "key_as_string": "1617235200",
              "key": 1617235200000,
              "doc_count": 2682,
              "alarms": {
                "value": 0
              },
              "cols": {
                "buckets": {
                  "incident": {
                    "doc_count": 1879
                  },
                  "servicerequest": {
                    "doc_count": 728
                  }
                }
              }
            },
            {
              "key_as_string": "1619827200",
              "key": 1619827200000,
              "doc_count": 94,
              "alarms": {
                "value": 38523
              },
              "cols": {
                "buckets": {
                  "incident": {
                    "doc_count": 0
                  },
                  "servicerequest": {
                    "doc_count": 0
                  }
                }
              }
            }
          ]
        }
      }
    }
  },
  "transform": [
    {
      "calculate": "datum.cols.buckets.incident.doc_count",
      "as": "Incident"
    },
    {
      "calculate": "datum.cols.buckets.servicerequest.doc_count",
      "as": "Service Request"
    },
    {
      "calculate": "datum.alarms.value",
      "as": "Alarms"
    },
    {
      "calculate": "datum.key",
      "as": "Date"
    },
    {
      "fold": [
        "Alarms",
        "Incident",
        "Service Request"
      ]
    }
  ],
  "encoding": {
    "y": {
      "field": "key",
      "type": "nominal"
    },
    "x": {
      "field": "value",
      "type": "quantitative"
    },
    "color": {
      "field": "key",
      "type": "nominal"
    },
    "row": {
      "field": "Date",
      "type": "ordinal",
      "timeUnit": "monthyear"
    }
  },
  "mark": "bar",
  "resolve": {
    "axis": {
      "x": "independent"
    }
  },
  "config": {
    "range": {
      "category": {
        "scheme": "elastic"
      }
    },
    "mark": {
      "color": "#54B399"
    },
    "title": {
      "color": "#343741"
    },
    "style": {
      "guide-label": {
        "fill": "#69707d"
      },
      "guide-title": {
        "fill": "#343741"
      },
      "group-title": {
        "fill": "#343741"
      },
      "group-subtitle": {
        "fill": "#343741"
      }
    },
    "axis": {
      "tickColor": "#eef0f3",
      "domainColor": "#eef0f3",
      "gridColor": "#eef0f3"
    },
    "background": "transparent"
  }
}

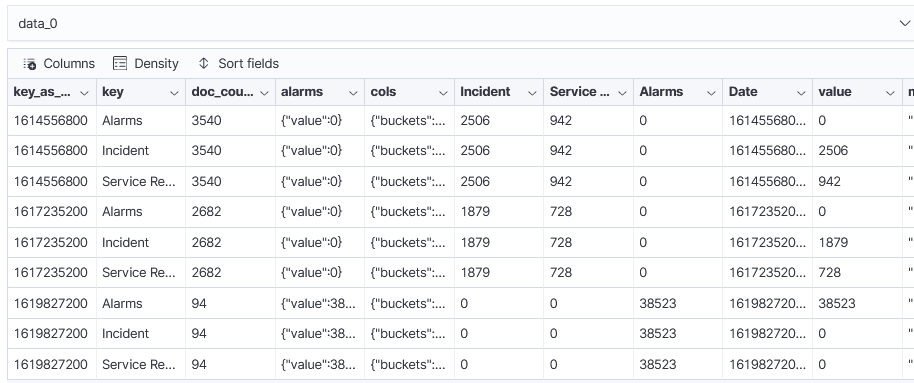

Here's the data after transform

Please let me know if there's any other info from the debug that is useful here.
Thanks!

[Stratoula_Kalafateli]

Hey @es_net!
From the documentation I can see that

The width and height of multi-view displays including concatenated, faceted, and repeated are determined based on the size of the composed unit and layered views. To adjust the size of multi-view displays, you can set the width and height properties of the inner unit and layered views

Have you tried this?

Customizing Size

[es_net (Ethan)]

Hi, thanks for the help. I am unsure where that would be set when using the row function.
I have tried setting it inside the row function i.e:

row:{
      field: Date
      type: ordinal
      timeUnit: monthyear
      height: 150
      width: 300
    }

However, the results were the same as the original signal values above.

Looking at this example from the docs the width/height are set within the base document (unsure of a better way to describe that) and within the signal values the main width/height are 0, while the child values are set to those set in the document.

This is similar to what I'm seeing except that my width/height are ending up at -10.

[Stratoula_Kalafateli]

Here is an example:

{
  "$schema": "https://vega.github.io/schema/vega-lite/v5.json",
  "title": "Event counts from all indexes",
  config: {
    kibana: {
      hideWarnings: true
    }
  },
  "data": {
    "url": {
      "%context%": true,
      "%timefield%": "@timestamp",
      "index": "kibana_sample_data_logs",
      "body": {
        "aggs": {
          "time_buckets": {
            "date_histogram": {
              "field": "@timestamp",
              "interval": {"%autointerval%": true},
              "extended_bounds": {
                "min": {"%timefilter%": "min"},
                "max": {"%timefilter%": "max"}
              },
              "min_doc_count": 0
            }
          }
        },
        "size": 0
      }
    },
    "format": {"property": "aggregations.time_buckets.buckets"}
  },
"facet": {"row": {"field": "doc_count"}},
  "spec": {
    "mark": "bar",
    "encoding": {
"x": {"field": "key", "type": "temporal", "axis": {"title": false}},
      "y": {
      "field": "doc_count",
      "type": "quantitative",
      "axis": {"title": "Document count"}
    }
    }
  }
}

I think that you can adapt it to your needs.

[es_net (Ethan)]

Hi, I appreciate the example. That did help me transform the spec to my needs. For reference, this is the relevant bit of my spec now:

facet: {row: {field: "Date", type:"Ordinal", timeUnit:"monthyear"}},
  spec: {
    height: 150
    width: 500
    encoding: {
      y: {
        field: key
        type: nominal
      }
      x: {
        field: value
        type: quantitative
      },
      color:{
        "field": "key", "type":"nominal"
      }
    }
    mark: bar
  }

The kibana hideWarnings item is also required as it throws the warning for autosize/height/width but still works.

config: {kibana: {hideWarnings: true}}

I appreciate your help!
