S3 backup configuration error

Elastic Stack Elasticsearch
#1

Hello,
I'm trying to configure AWS S3 repository for backups but facing access issues to the S3 bucket.
I did the following steps:

  1. Installed repository-s3 plugin on all cluster nodes
  2. restarted all nodes after the plugin installation
  3. I'm using elasticsearch-keystore to configure the credentials for S3, I have set up both s3.client.default.access_key and s3.client.default.secret_key.

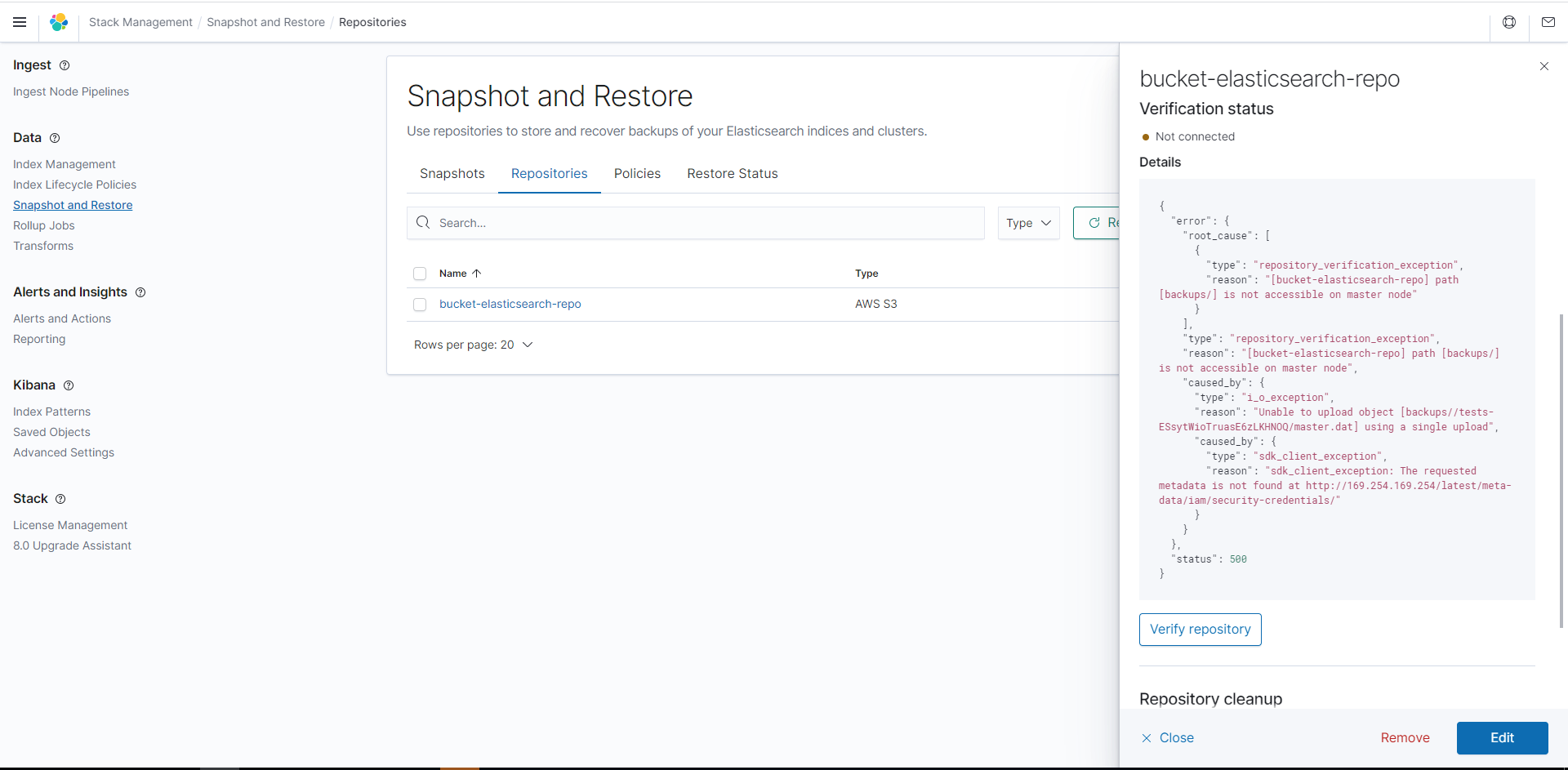

  4. Configuring the repository through Kibana and getting this error when I'm trying to test the repository:
    image1920×943 125 KB

    Seems that it tries to get the credentials from attached IAM role rather than using the credentials in the keystore.

How can I make it consider the keystore configuration?

Thanks,
Lior

#2

Hi @Lior_Yakobov,

Can you confirm that you've set up the S3 credentials in all ES nodes?

Thank you!

#3

Hey @afharo,
Yes I have created the keystore pairs on all cluster nodes.
Does the creation of keystore pairs also requires restart to Elasticsearch process in order for Elasticsearch to recognize it?

Thanks,
Lior

#4

There is no need to restart Elasticsearch, although you might need to call the /reload_secure_settings API to get all the nodes to re-read them: Secure settings | Elasticsearch Reference [7.10] | Elastic

#5

Hey @afharo,
Thanks for the heads-up, I probably missed it.
So after running the reload_secure_settings request I do see that test files were created in the S3 bucket, but still Kibana complains about something else now:

 {
  "error": {
    "root_cause": [
      {
        "type": "repository_verification_exception",
        "reason": "[bucket-elasticsearch-repo] [[DmPiHBoGSxWOxcAUnSEHKw, 'RemoteTransportException[[aws-elkdb22][10.128.115.52:9300][internal:admin/repository/verify]]; nested: RepositoryMissingException[[bucket-elasticsearch-repo] missing];']]"
      }
    ],
    "type": "repository_verification_exception",
    "reason": "[bucket-elasticsearch-repo] [[DmPiHBoGSxWOxcAUnSEHKw, 'RemoteTransportException[[aws-elkdb22][10.128.115.52:9300][internal:admin/repository/verify]]; nested: RepositoryMissingException[[bucket-elasticsearch-repo] missing];']]"
  },
  "status": 500
}

Is there something else I'm missing here?

Thanks again,
Lior

#6

What version are you running? Do you have any voting-only nodes in the cluster?

#7

Hey @DavidTurner,
our cluster is version 7.9.3, and I believe that by voting-only nodes you mean the Kibana nodes, as they configured this way:

node.data: false
node.master: false
node.ingest: true
node.ml: false

If that's what you meant, so yes we have 2 of these kind of nodes.

Thanks,
Lior

#8

No I meant nodes with node.voting_only: true. Any of them?

#9

Hey @DavidTurner,
actually I don't have nodes of this type in the cluster.

Lior

#10

Hey @DavidTurner , @afharo
despite the message I received from testing the repository, seems that I managed to perform a successful backup.
I will try to complete a recovery as well and if all goes well then we're good to go.

Thanks,
Lior

#11

Hey @DavidTurner, @afharo,

So I managed to perform both snapshot and restore, although when I'm pressing the repository verification I still get this error message:

 {
  "error": {
    "root_cause": [
      {
        "type": "repository_verification_exception",
        "reason": "[bucket-elasticsearch-repo] [[DmPiHBoGSxWOxcAUnSEHKw, 'RemoteTransportException[[aws-elkdb22][10.128.115.52:9300][internal:admin/repository/verify]]; nested: RepositoryMissingException[[bucket-elasticsearch-repo] missing];']]"
      }
    ],
    "type": "repository_verification_exception",
    "reason": "[bucket-elasticsearch-repo] [[DmPiHBoGSxWOxcAUnSEHKw, 'RemoteTransportException[[aws-elkdb22][10.128.115.52:9300][internal:admin/repository/verify]]; nested: RepositoryMissingException[[bucket-elasticsearch-repo] missing];']]"
  },
  "status": 500
}

Is there any reason for this error message to appear, even though snapshots are working?

Thanks,
Lior

#12

There's some kind of discrepancy with the config of aws-elkdb22 vs how it appears in the cluster state. If you restart that one node does the problem go away?

#13

@DavidTurner, Thank you for the help,
by restarting this node I noticed in the log file that it refuses to start since repository-s3 plugin was missing. I guess that somehow I missed the plugin installation on this specific node, but now everything looks just fine.

Thanks again and best regards,
Lior
