I managed to write requests to the console

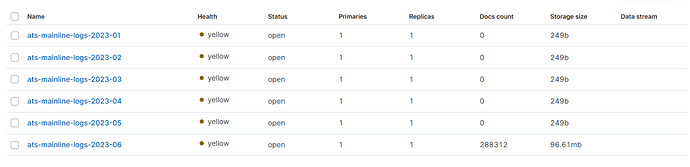

Could hence create more Indexes, with the defined mapping and pull off stuff like that from just using the console.

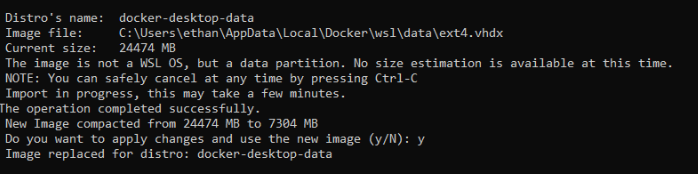

Earlier on, I also managed to compress the /.vhdx disk using the wslcompact utility.
I receive automatic stoppage of my ingestion pipeline despite logstash container still running, can cmd prompt it and no Error messages raised. I only realise the stoppage when the number of documents in the index fails to increase further (despite it not reaching end of the month yet).
Timezone is now a funny issue i would like to understand better.
In order to get @timestamp right, I had to In my pipeling config.
"date": {
"field": "sourcetime",
"timezone": "America/Los_Angeles",
"formats": [
"yyyy-MM-dd HH:mm:ss.SSS",
"yyyy-MM-dd HH:mm:ss.SS",
"yyyy-MM-dd HH:mm:ss",
"yyyy-MM-dd HH:mm:ss.S"

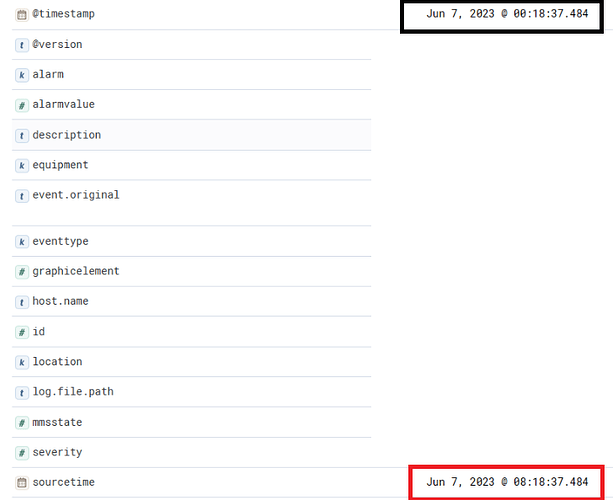

Which then gives me @timestamp in accordance to the correct and original sourcetime.
But, the sourcetime itself is now 8 hours ahead.
Why can't @timestamp and sourcetime be matching?
Please just post the first 10 Lines of one of your CSV files including the header line.
When I get to it, I'll provide you my solution. May not get to that until the next couple days.
I will tell you trying to parse it in both logstash and ingest pipeline is probably not going to work well for you.
You can make the timestamps out come out however you want. Just remember they're stored in UTC and then displayed in your local time zone
After this @Ethan777100 I think you're going to need to work on this yourself. I have to move on to other topics
I think if you're just slowed down and read the documents first you would have had a much better success, need to understand the concepts that we. Have discussed
Actually, I do think my understanding has improved over time. Pushing thru so much on an active thread to trial/error so much things was the most innovative process ever within a short, intense timespan.
Now I'm finding myself setting and forgetting the ingesting process because the past week was spent learning about best practices and peripheral context/troubleshoots that documentation doesn't necessarily tell you.
I could in theory just read documentation but fail to figure out anything or just absorb only 5% because I learn from pictorial and visual relevance specific to my use case.
Definitely I may encounter new issues moving down the road. I'll see how i can address them.
Your help has really gone a long way. Appreciate it.
id uniqueid alarm eventtype system subsystem sourcetime operator alarmvalue value equipment location severity description state mmsstate zone graphicelement
7133402 unique1 alarm1 event1 system1 subsystem1 00:00.3 null 0 >=1 OPEN equipment1 location1 0 description1 5 0 -1 -1
7133403 unique2 alarm2 event1 system1 subsystem1 00:00.3 null 0 NOT CLOSED & LOC equipment2 location1 0 description2 5 0 -1 -1
7133404 unique3 alarm3 event1 system1 subsystem1 00:00.5 null 0 CLOSED & LOCKED equipment3 location1 0 description3 5 0 -1 -1
7133405 unique4 alarm4 event1 system1 subsystem1 00:02.1 null 0 NO DOORS OPEN equipment4 location1 0 description4 5 0 -1 -1
7133406 unique5 alarm5 event1 system1 subsystem1 00:02.1 null 0 CLOSED & LOCKED equipment5 location1 0 description5 5 0 -1 -1
7133407 unique6 alarm6 event1 system2 subsystem2 00:02.3 TCO 0 equipment6 location2 0 description6 5 0 -1 -1
7133408 unique7 alarm7 event1 system2 subsystem2 00:02.3 TCO 0 equipment7 location2 0 description7 5 0 2 -1
7133409 unique8 alarm8 event1 system2 subsystem2 00:03.6 null 0 equipment8 location2 0 description8 5 0 -1 -1
7133410 unique9 alarm9 event1 system2 subsystem2 00:04.5 TCO 0 equipment9 location2 0 description9 5 0 -1 -1
do you want the source time and timestamp to be the same?
Explain to me how this is the source time
sourcetime
00:00.3
and you date processor looks like
"field": "sourcetime",
"timezone": "America/Los_Angeles",
"formats": [
"yyyy-MM-dd HH:mm:ss.SSS",
"yyyy-MM-dd HH:mm:ss.SS",
"yyyy-MM-dd HH:mm:ss",
"yyyy-MM-dd HH:mm:ss.S"
and why your csv definition say separated by comma , and the example above is not
If I was not clear I want the first 10 rows of the RAW csv
I did not say you have no understanding... anyways.... give a sample of the raw data I will take a look later...
BTW source time and timestamp can be the same you just need to treat them the same and add the timezone.
you can run source time through the same date processor logic but set target_
"target_field" : "sourcetime"
Date Format is a little peculiar for the csv files. Its populated in this manner. File Upload happened to detect several formats of the date within 1 day's worth of data.
For the date processor, "timezone": "Asia/Singapore" (UTC+8), but I changed it to "timezone": "America/Los_Angeles" (UTC-8), because I realised Elastic will +8 hours to each @timestamp and sourcetime.
Since I noticed @timestamp is the basis for visualisations esp for TSVB, I realised my timezone setting had to be UTC-8 in order to negate the offset.
Using timezone": "Asia/Singapore" (UTC+8)
@timestamp: 08:00:00
sourcetime: 16:00:00
Using timezone": "America/Los_Angeles, could give me the sourcetime original value parsed into @timestamp.
@timestamp: 00:00:00
sourcetime: 08:00:00
Copying out of the Data Grid in the Excel is not the raw CSV
Open the file in notepad and copy the first 10 lines and post, that is the raw data, that is what you need to understand to load the data ... not what shows in Excell grid
If there is no yyyy-MM-dd the day will be assumed to be today... s that what you want?
Above you show June 07 2023... , Then you show 1/6/2023
I would prefer if you are consistent with your posts and data...
Don't worry about the timezones... easy fix
Exactly which timezone is correct for the Data?
And do you want the timestamp equal to the source Time..
AND if your Kiabana will always show in Local Time Zone... unless you manually set it.
If you get me raw data. I will help... otherwise I can not...
1 Like
Now I understand. Sry about that. I provided 01-06-2023 over here.
Whether 1/6 or 7/6, the data is about the same format. No worries.
id,uniqueid,alarm,eventtype,system,subsystem,sourcetime,operator,alarmvalue,value,equipment,location,severity,description,state,mmsstate,zone,graphicelement
3432479,CCC_3432479,CCC_0,DIAG_IAllDoorModeStatus[2],RRR,DDDD,2023-06-01 00:00:00.035,null,0,NO DOORS OPEN,xxx800/RRR/DDD/ALL,xxx,0,Summary of,5,0,-1,-1
3432480,CCC_3432480,CCC_0,DIAG_IAllDoorModeStatus[2],RRR,DDD,2023-06-01 00:00:00.439,null,0,NO DOORS OPEN,xx030/RRR/DDD/ALL,xx030,0,Summary of Status with Open,5,0,-1,-1
3432481,CCC_3432481,CCC_0,DIAG_IAllDoorModeStatus[1],RRR,DDD,2023-06-01 00:00:04.108,null,0,CLOSED & LOCKED,xx140/RRR/DDD/ALL,xx140,0,Summary ofStatus with Closed & Locked,5,0,-1,-1
3432482,CCC_3432482,CCC_0,DIAG_IHndovr1Radio,SSS,ATC,2023-06-01 00:00:04.614,null,0,ALARM,xx022/SSS/ATC/AAA_SYS,xx022,0,Auto Norm: performed handover with one radio only,5,0,-1,-1
3432483,CCC_3432483,CCC_0,COMMAND_RECEIVED_CCC,SSS,AAA,2023-06-01 00:00:04.923,null,0,,GGG/SSS/AAA/CCCAAA_SVR,GGG,0,Command SET ROUTE Received Status with Closed & Locked,5,0,-1,-1
3432485,CCC_3432485,CCC_0,DIAG_IAllDoorModeStatus[1],RRR,DDD,2023-06-01 00:00:06.143,null,0,CLOSED & LOCKED,xx030/RRR/DDD/ALL,xx030,0,Summary of Status with Closed & Locked,5,0,-1,-1
3432486,CCC_3432486,CCC_0,DIAG_IAllDoorModeStatus[2],RRR,DDD,2023-06-01 00:00:06.642,null,0,>=1 OPEN,xx210/RRR/DDD/ALL,xx210,0,Summary of Status with Open,5,0,-1,-1
3432487,CCC_3432487,CCC_0,DIAG_IAllDoorModeStatus[1],RRR,DDD,2023-06-01 00:00:06.644,null,0,NOT CLOSED & LOC,xx210/RRR/DDD/ALL,xx210,0,Summary of Status with Closed & Locked,5,0,-1,-1
Exactly which timezone is correct for the Data?
Asia/Singapore
And do you want the timestamp equal to the source Time..
Preferably yes
AND if your Kiabana will always show in Local Time Zone... unless you manually set it.
I dont think I did. I just dug my Settings. Didnt know u could do that actually.
Ok THATTSSSS more like it .... I will try later tonight or tomorrow.... I should have just asked for this in the beginning
1 Like
Here is my code that works.
This works from my directories etc, you will need to adjust the paths in the logstash.conf
I made some subtle changes in the mappings and ingest pipeline for the dates... see if you can spot them
Also you need a carriage return after the last line in the csv or the last line will not be read
You will get 1 parsing error per file as it reads the header you should just ignore that.
You can run these commands
This is for the template which will set the mappings for indices that match the pattern
And the ingest pipeline.
DELETE _index_template/ats-event-template
PUT _index_template/ats-event-template
{
"index_patterns": [
"ats-events-*"
],
"template": {
"mappings": {
"properties": {
"@timestamp": {
"type": "date",
"format": "strict_date_optional_time||yyyy-MM-dd HH:mm:ss.SSS||yyyy-MM-dd HH:mm:ss.SS||yyyy-MM-dd HH:mm:ss||yyyy-MM-dd HH:mm:ss.S"
},
"alarm": {
"type": "keyword"
},
"alarmvalue": {
"type": "long"
},
"description": {
"type": "text"
},
"equipment": {
"type": "keyword"
},
"eventtype": {
"type": "keyword"
},
"graphicelement": {
"type": "long"
},
"id": {
"type": "long"
},
"location": {
"type": "keyword"
},
"mmsstate": {
"type": "long"
},
"operator": {
"type": "keyword"
},
"severity": {
"type": "long"
},
"sourcetime": {
"type": "date",
"format": "strict_date_optional_time||yyyy-MM-dd HH:mm:ss.SSS||yyyy-MM-dd HH:mm:ss.SS||yyyy-MM-dd HH:mm:ss||yyyy-MM-dd HH:mm:ss.S"
},
"state": {
"type": "long"
},
"subsystem": {
"type": "keyword"
},
"system": {
"type": "keyword"
},
"uniqueid": {
"type": "keyword"
},
"value": {
"type": "keyword"
},
"zone": {
"type": "long"
}
}
}
}
}
DELETE _ingest/pipeline/ats-events-pipeline
PUT _ingest/pipeline/ats-events-pipeline
{
"description": "Ingest pipeline created by text structure finder",
"processors": [
{
"csv": {
"field": "message",
"target_fields": [
"id",
"uniqueid",
"alarm",
"eventtype",
"system",
"subsystem",
"sourcetime",
"operator",
"alarmvalue",
"value",
"equipment",
"location",
"severity",
"description",
"state",
"mmsstate",
"zone",
"graphicelement"
],
"ignore_missing": false
}
},
{
"date": {
"field": "sourcetime",
"timezone": "Asia/Singapore",
"formats": [
"strict_date_optional_time",
"yyyy-MM-dd HH:mm:ss.SSS",
"yyyy-MM-dd HH:mm:ss.SS",
"yyyy-MM-dd HH:mm:ss",
"yyyy-MM-dd HH:mm:ss.S"
]
}
},
{
"date": {
"field": "sourcetime",
"timezone": "Asia/Singapore",
"target_field": "sourcetime",
"formats": [
"strict_date_optional_time",
"yyyy-MM-dd HH:mm:ss.SSS",
"yyyy-MM-dd HH:mm:ss.SS",
"yyyy-MM-dd HH:mm:ss",
"yyyy-MM-dd HH:mm:ss.S"
]
}
},
{
"convert": {
"field": "alarmvalue",
"type": "long",
"ignore_missing": true
}
},
{
"convert": {
"field": "graphicelement",
"type": "long",
"ignore_missing": true
}
},
{
"convert": {
"field": "id",
"type": "long",
"ignore_missing": true
}
},
{
"convert": {
"field": "mmsstate",
"type": "long",
"ignore_missing": true
}
},
{
"convert": {
"field": "severity",
"type": "long",
"ignore_missing": true
}
},
{
"convert": {
"field": "state",
"type": "long",
"ignore_missing": true
}
},
{
"convert": {
"field": "zone",
"type": "long",
"ignore_missing": true
}
},
{
"remove": {
"field": "message"
}
}
]
}
The logstash.conf note NO filter and does have the pipeline
input {
file {
path => "/usr/share/logstash/csv_files/events2023-06-01.csv"
start_position => "beginning"
sincedb_path => "/dev/null"
}
}
output {
elasticsearch {
index => "ats-events-2023-06"
hosts => ["https://es01:9200"]
user => "elastic"
password => "mypassword"
pipeline => "ats-events-pipeline"
ssl_verification_mode=> "none"
}
# stdout{ codec => "rubydebug"}
}
Then this is the results with the data you provide (plus carriage return at the end)
GET ats-events-2023-06
GET ats-events-2023-06/_search
# Results
# GET ats-events-2023-06 200 OK
{
"ats-events-2023-06": {
"aliases": {},
"mappings": {
"properties": {
"@timestamp": {
"type": "date",
"format": "strict_date_optional_time||yyyy-MM-dd HH:mm:ss.SSS||yyyy-MM-dd HH:mm:ss.SS||yyyy-MM-dd HH:mm:ss||yyyy-MM-dd HH:mm:ss.S"
},
"@version": {
"type": "text",
"fields": {
"keyword": {
"type": "keyword",
"ignore_above": 256
}
}
},
"alarm": {
"type": "keyword"
},
"alarmvalue": {
"type": "long"
},
"description": {
"type": "text"
},
"equipment": {
"type": "keyword"
},
"event": {
"properties": {
"original": {
"type": "text",
"fields": {
"keyword": {
"type": "keyword",
"ignore_above": 256
}
}
}
}
},
"eventtype": {
"type": "keyword"
},
"graphicelement": {
"type": "long"
},
"host": {
"properties": {
"name": {
"type": "text",
"fields": {
"keyword": {
"type": "keyword",
"ignore_above": 256
}
}
}
}
},
"id": {
"type": "long"
},
"location": {
"type": "keyword"
},
"log": {
"properties": {
"file": {
"properties": {
"path": {
"type": "text",
"fields": {
"keyword": {
"type": "keyword",
"ignore_above": 256
}
}
}
}
}
}
},
"mmsstate": {
"type": "long"
},
"operator": {
"type": "keyword"
},
"severity": {
"type": "long"
},
"sourcetime": {
"type": "date",
"format": "strict_date_optional_time||yyyy-MM-dd HH:mm:ss.SSS||yyyy-MM-dd HH:mm:ss.SS||yyyy-MM-dd HH:mm:ss||yyyy-MM-dd HH:mm:ss.S"
},
"state": {
"type": "long"
},
"subsystem": {
"type": "keyword"
},
"system": {
"type": "keyword"
},
"uniqueid": {
"type": "keyword"
},
"value": {
"type": "keyword"
},
"zone": {
"type": "long"
}
}
},
"settings": {
"index": {
"routing": {
"allocation": {
"include": {
"_tier_preference": "data_content"
}
}
},
"number_of_shards": "1",
"provided_name": "ats-events-2023-06",
"creation_date": "1700621578430",
"number_of_replicas": "1",
"uuid": "PPJNj8bTR4SevVlbYY23JQ",
"version": {
"created": "8500003"
}
}
}
}
}
# GET ats-events-2023-06/_search 200 OK
{
"took": 6,
"timed_out": false,
"_shards": {
"total": 1,
"successful": 1,
"skipped": 0,
"failed": 0
},
"hits": {
"total": {
"value": 8,
"relation": "eq"
},
"max_score": 1,
"hits": [
{
"_index": "ats-events-2023-06",
"_id": "V-7y9IsBNa_axXWiVeWb",
"_score": 1,
"_source": {
"severity": 0,
"log": {
"file": {
"path": "/usr/share/logstash/csv_files/events2023-06-01.csv"
}
},
"graphicelement": -1,
"sourcetime": "2023-06-01T00:00:06.644+08:00",
"subsystem": "DDD",
"equipment": "xx210/RRR/DDD/ALL",
"description": "Summary of Status with Closed & Locked",
"operator": "null",
"mmsstate": 0,
"@timestamp": "2023-06-01T00:00:06.644+08:00",
"system": "RRR",
"zone": -1,
"alarmvalue": 0,
"@version": "1",
"host": {
"name": "6e71e0dd4966"
},
"alarm": "CCC_0",
"eventtype": "DIAG_IAllDoorModeStatus[1]",
"location": "xx210",
"id": 3432487,
"state": 5,
"event": {
"original": "3432487,CCC_3432487,CCC_0,DIAG_IAllDoorModeStatus[1],RRR,DDD,2023-06-01 00:00:06.644,null,0,NOT CLOSED & LOC,xx210/RRR/DDD/ALL,xx210,0,Summary of Status with Closed & Locked,5,0,-1,-1"
},
"value": "NOT CLOSED & LOC",
"uniqueid": "CCC_3432487"
}
},
{
"_index": "ats-events-2023-06",
"_id": "UO7x9IsBNa_axXWi9OVZ",
"_score": 1,
"_source": {
"severity": 0,
"log": {
"file": {
"path": "/usr/share/logstash/csv_files/events2023-06-01.csv"
}
},
"graphicelement": -1,
"sourcetime": "2023-06-01T00:00:04.923+08:00",
"subsystem": "AAA",
"equipment": "GGG/SSS/AAA/CCCAAA_SVR",
"description": "Command SET ROUTE Received Status with Closed & Locked",
"operator": "null",
"mmsstate": 0,
"@timestamp": "2023-06-01T00:00:04.923+08:00",
"system": "SSS",
"zone": -1,
"alarmvalue": 0,
"@version": "1",
"host": {
"name": "6e71e0dd4966"
},
"alarm": "CCC_0",
"eventtype": "COMMAND_RECEIVED_CCC",
"location": "GGG",
"id": 3432483,
"state": 5,
"event": {
"original": "3432483,CCC_3432483,CCC_0,COMMAND_RECEIVED_CCC,SSS,AAA,2023-06-01 00:00:04.923,null,0,,GGG/SSS/AAA/CCCAAA_SVR,GGG,0,Command SET ROUTE Received Status with Closed & Locked,5,0,-1,-1"
},
"uniqueid": "CCC_3432483"
}
},
{
"_index": "ats-events-2023-06",
"_id": "Ue7x9IsBNa_axXWi9OVY",
"_score": 1,
"_source": {
"severity": 0,
"log": {
"file": {
"path": "/usr/share/logstash/csv_files/events2023-06-01.csv"
}
},
"graphicelement": -1,
"sourcetime": "2023-06-01T00:00:06.642+08:00",
"subsystem": "DDD",
"equipment": "xx210/RRR/DDD/ALL",
"description": "Summary of Status with Open",
"operator": "null",
"mmsstate": 0,
"@timestamp": "2023-06-01T00:00:06.642+08:00",
"system": "RRR",
"zone": -1,
"alarmvalue": 0,
"@version": "1",
"host": {
"name": "6e71e0dd4966"
},
"alarm": "CCC_0",
"eventtype": "DIAG_IAllDoorModeStatus[2]",
"location": "xx210",
"id": 3432486,
"state": 5,
"event": {
"original": "3432486,CCC_3432486,CCC_0,DIAG_IAllDoorModeStatus[2],RRR,DDD,2023-06-01 00:00:06.642,null,0,>=1 OPEN,xx210/RRR/DDD/ALL,xx210,0,Summary of Status with Open,5,0,-1,-1"
},
"value": ">=1 OPEN",
"uniqueid": "CCC_3432486"
}
},
{
"_index": "ats-events-2023-06",
"_id": "Vu7x9IsBNa_axXWi9OVZ",
"_score": 1,
"_source": {
"severity": 0,
"log": {
"file": {
"path": "/usr/share/logstash/csv_files/events2023-06-01.csv"
}
},
"graphicelement": -1,
"sourcetime": "2023-06-01T00:00:04.108+08:00",
"subsystem": "DDD",
"equipment": "xx140/RRR/DDD/ALL",
"description": "Summary ofStatus with Closed & Locked",
"operator": "null",
"mmsstate": 0,
"@timestamp": "2023-06-01T00:00:04.108+08:00",
"system": "RRR",
"zone": -1,
"alarmvalue": 0,
"@version": "1",
"host": {
"name": "6e71e0dd4966"
},
"alarm": "CCC_0",
"eventtype": "DIAG_IAllDoorModeStatus[1]",
"location": "xx140",
"id": 3432481,
"state": 5,
"event": {
"original": "3432481,CCC_3432481,CCC_0,DIAG_IAllDoorModeStatus[1],RRR,DDD,2023-06-01 00:00:04.108,null,0,CLOSED & LOCKED,xx140/RRR/DDD/ALL,xx140,0,Summary ofStatus with Closed & Locked,5,0,-1,-1"
},
"value": "CLOSED & LOCKED",
"uniqueid": "CCC_3432481"
}
},
{
"_index": "ats-events-2023-06",
"_id": "Uu7x9IsBNa_axXWi9OVZ",
"_score": 1,
"_source": {
"severity": 0,
"log": {
"file": {
"path": "/usr/share/logstash/csv_files/events2023-06-01.csv"
}
},
"graphicelement": -1,
"sourcetime": "2023-06-01T00:00:06.143+08:00",
"subsystem": "DDD",
"equipment": "xx030/RRR/DDD/ALL",
"description": "Summary of Status with Closed & Locked",
"operator": "null",
"mmsstate": 0,
"@timestamp": "2023-06-01T00:00:06.143+08:00",
"system": "RRR",
"zone": -1,
"alarmvalue": 0,
"@version": "1",
"host": {
"name": "6e71e0dd4966"
},
"alarm": "CCC_0",
"eventtype": "DIAG_IAllDoorModeStatus[1]",
"location": "xx030",
"id": 3432485,
"state": 5,
"event": {
"original": "3432485,CCC_3432485,CCC_0,DIAG_IAllDoorModeStatus[1],RRR,DDD,2023-06-01 00:00:06.143,null,0,CLOSED & LOCKED,xx030/RRR/DDD/ALL,xx030,0,Summary of Status with Closed & Locked,5,0,-1,-1"
},
"value": "CLOSED & LOCKED",
"uniqueid": "CCC_3432485"
}
},
{
"_index": "ats-events-2023-06",
"_id": "Ve7x9IsBNa_axXWi9OVZ",
"_score": 1,
"_source": {
"severity": 0,
"log": {
"file": {
"path": "/usr/share/logstash/csv_files/events2023-06-01.csv"
}
},
"graphicelement": -1,
"sourcetime": "2023-06-01T00:00:04.614+08:00",
"subsystem": "ATC",
"equipment": "xx022/SSS/ATC/AAA_SYS",
"description": "Auto Norm: performed handover with one radio only",
"operator": "null",
"mmsstate": 0,
"@timestamp": "2023-06-01T00:00:04.614+08:00",
"system": "SSS",
"zone": -1,
"alarmvalue": 0,
"@version": "1",
"host": {
"name": "6e71e0dd4966"
},
"alarm": "CCC_0",
"eventtype": "DIAG_IHndovr1Radio",
"location": "xx022",
"id": 3432482,
"state": 5,
"event": {
"original": "3432482,CCC_3432482,CCC_0,DIAG_IHndovr1Radio,SSS,ATC,2023-06-01 00:00:04.614,null,0,ALARM,xx022/SSS/ATC/AAA_SYS,xx022,0,Auto Norm: performed handover with one radio only,5,0,-1,-1"
},
"value": "ALARM",
"uniqueid": "CCC_3432482"
}
},
{
"_index": "ats-events-2023-06",
"_id": "U-7x9IsBNa_axXWi9OVZ",
"_score": 1,
"_source": {
"severity": 0,
"log": {
"file": {
"path": "/usr/share/logstash/csv_files/events2023-06-01.csv"
}
},
"graphicelement": -1,
"sourcetime": "2023-06-01T00:00:00.439+08:00",
"subsystem": "DDD",
"equipment": "xx030/RRR/DDD/ALL",
"description": "Summary of Status with Open",
"operator": "null",
"mmsstate": 0,
"@timestamp": "2023-06-01T00:00:00.439+08:00",
"system": "RRR",
"zone": -1,
"alarmvalue": 0,
"@version": "1",
"host": {
"name": "6e71e0dd4966"
},
"alarm": "CCC_0",
"eventtype": "DIAG_IAllDoorModeStatus[2]",
"location": "xx030",
"id": 3432480,
"state": 5,
"event": {
"original": "3432480,CCC_3432480,CCC_0,DIAG_IAllDoorModeStatus[2],RRR,DDD,2023-06-01 00:00:00.439,null,0,NO DOORS OPEN,xx030/RRR/DDD/ALL,xx030,0,Summary of Status with Open,5,0,-1,-1"
},
"value": "NO DOORS OPEN",
"uniqueid": "CCC_3432480"
}
},
{
"_index": "ats-events-2023-06",
"_id": "VO7x9IsBNa_axXWi9OVZ",
"_score": 1,
"_source": {
"severity": 0,
"log": {
"file": {
"path": "/usr/share/logstash/csv_files/events2023-06-01.csv"
}
},
"graphicelement": -1,
"sourcetime": "2023-06-01T00:00:00.035+08:00",
"subsystem": "DDDD",
"equipment": "xxx800/RRR/DDD/ALL",
"description": "Summary of",
"operator": "null",
"mmsstate": 0,
"@timestamp": "2023-06-01T00:00:00.035+08:00",
"system": "RRR",
"zone": -1,
"alarmvalue": 0,
"@version": "1",
"host": {
"name": "6e71e0dd4966"
},
"alarm": "CCC_0",
"eventtype": "DIAG_IAllDoorModeStatus[2]",
"location": "xxx",
"id": 3432479,
"state": 5,
"event": {
"original": "3432479,CCC_3432479,CCC_0,DIAG_IAllDoorModeStatus[2],RRR,DDDD,2023-06-01 00:00:00.035,null,0,NO DOORS OPEN,xxx800/RRR/DDD/ALL,xxx,0,Summary of,5,0,-1,-1"
},
"value": "NO DOORS OPEN",
"uniqueid": "CCC_3432479"
}
}
]
}
}
1 Like
Studying your code now.
I see the difference. One json has target_field and the other doesnt.
"date": {
"field": "sourcetime",
"timezone": "Asia/Singapore",
"formats": [
"strict_date_optional_time",
"yyyy-MM-dd HH:mm:ss.SSS",
"yyyy-MM-dd HH:mm:ss.SS",
"yyyy-MM-dd HH:mm:ss",
"yyyy-MM-dd HH:mm:ss.S"
]
}
},
{
"date": {
"field": "sourcetime",
"timezone": "Asia/Singapore",
"target_field": "sourcetime",
"formats": [
"strict_date_optional_time",
"yyyy-MM-dd HH:mm:ss.SSS",
"yyyy-MM-dd HH:mm:ss.SS",
"yyyy-MM-dd HH:mm:ss",
"yyyy-MM-dd HH:mm:ss.S"
]
Look closely they are not duplicates.... Read the docs...
Right so no target_field defaults to @timestamp...
Or you can explicitly set it so it clear...
1 Like
| Name | Required | Default | Description |
|---|---|---|---|
field |
yes | - | The field to get the date from. |
target_field |
no | @timestamp | The field that will hold the parsed date. |
I saw this under Date processor | Elasticsearch Guide [8.11] | Elastic
Broadly, I saw having 2 of the same objects as a means to offset the Time Difference? ITs an interesting technique u did if I understood correctly.
I use date processor to set the timezones for both sourcetime and the @timestamp ....what you asked for ... It's just code to do that ... If this is clearer
"date": {
"field": "sourcetime",
"target_field": "@timestamp",
"timezone": "Asia/Singapore",
"formats": [
"strict_date_optional_time",
"yyyy-MM-dd HH:mm:ss.SSS",
"yyyy-MM-dd HH:mm:ss.SS",
"yyyy-MM-dd HH:mm:ss",
"yyyy-MM-dd HH:mm:ss.S"
]
}
},
{
"date": {
"field": "sourcetime",
"timezone": "Asia/Singapore",
"target_field": "sourcetime",
"formats": [
"strict_date_optional_time",
"yyyy-MM-dd HH:mm:ss.SSS",
"yyyy-MM-dd HH:mm:ss.SS",
"yyyy-MM-dd HH:mm:ss",
"yyyy-MM-dd HH:mm:ss.S"
]
Don't overthink it......
processor are functions not objects...
I'm Just applying the code / functions
1 Like
OpenSearch/OpenDistro are AWS run products and differ from the original Elasticsearch and Kibana products that Elastic builds and maintains. You may need to contact them directly for further assistance.
(This is an automated response from your friendly Elastic bot. Please report this post if you have any suggestions or concerns
)
Made A New Topic
Sorry this is going to be a little stupid but now I get a parsing error in my csv files for an unknown reason.
Illegal character inside unquoted field at 197 ?
I was doing some data cleaning work on my files this evening. Ran my files into python utility scripts. However, they can still be opened normally.
Using Elastic's File Upload didnt raise any errors as well.
[2023-11-22T14:57:58,035][WARN ][logstash.outputs.elasticsearch][main][b657bd83de5d7d68e3f96ca1f75d1568be3cf9df7470bb420f842091e1681f72] Could not index event to Elasticsearch. {:status=>400, :action=>["index", {:_id=>nil, :_index=>"ats-mainline-logs-2023-01", :routing=>nil, :pipeline=>"ats-mainline-logs-pipeline"}, {"@timestamp"=>2023-11-22T14:57:56.352619127Z, "event"=>{"original"=>"54150475,CCC_54150475,CCC_0,DIAG_IAllDoorModeStatus[1],CSC,DRS,2023-01-01 00:31:44.733,null,0,NOT CLOSED & LOC,x0030/RSC/DRS/ALL,x0030,0,Summary of xxxxx Doors Status with Closed & Locked,5,0,-1,-1\r"}, "message"=>"54150475,CCC_54150475,CCC_0,DIAG_IAllDoorModeStatus[1],RRR,DRS,2023-01-01 00:31:44.733,null,0,NOT CLOSED & LOC,x00x0/RSC/DRS/ALL,900x0,0,Summary of xxxxx Doors Status with Closed & Locked,5,0,-1,-1\r", "host"=>{"name"=>"677b632d35c5"}, "@version"=>"1", "log"=>{"file"=>{"path"=>"/usr/share/logstash/ats-logs-mainline/2023/01-Jan-23/events2023-01-01.csv"}}}], :response=>{"index"=>{"status"=>400, "error"=>{"type"=>"illegal_argument_exception", "reason"=>"Illegal character inside unquoted field at 197"}}}}
My own logstash pipeline now broken. Im not sure what I broke
Managed to capture a console entry
{
"@timestamp" => 2023-11-22T15:43:21.000370288Z,
"log" => {
"file" => {
"path" => "/usr/share/logstash/ats-logs-mainline/2023/01-Jan-23/events2023-01-01.csv"
}
},
"@version" => "1",
"message" => "54146161,OCC_54146161,OCC_0,DIAG_IAllDoorModeStatus[2],RSC,DRS,2023-01-01 00:00:34.672,null,0,>=1 OPEN,90390/RSC/DRS/ALL,90390,0,Summary of Train Doors Status with Open,5,0,-1,-1\r",
"host" => {
"name" => "41d44a8cb286"
},
"event" => {
"original" => "54146161,OCC_54146161,OCC_0,DIAG_IAllDoorModeStatus[2],RSC,DRS,2023-01-01 00:00:34.672,null,0,>=1 OPEN,90390/RSC/DRS/ALL,90390,0,Summary of Train Doors Status with Open,5,0,-1,-1\r"
}
}
Is the \r" causing this?
UPDATE: This still occurs even if I piped in my original csv files. Hence the issue is not related to my data cleaning work...
Everything just looks so flawless and correct i dont even know what's wrong.
This why I'm scared to break code and try new things into unchartered
Yup you can easily see this with a _simulate
POST _ingest/pipeline/ats-events-pipeline/_simulate
{
"docs": [
{
"_source": {
"message": "54146161,OCC_54146161,OCC_0,DIAG_IAllDoorModeStatus[2],RSC,DRS,2023-01-01 00:00:34.672,null,0,>=1 OPEN,90390/RSC/DRS/ALL,90390,0,Summary of Train Doors Status with Open,5,0,-1,-1\r"
}
},
{
"_source": {
"message": "54146161,OCC_54146161,OCC_0,DIAG_IAllDoorModeStatus[2],RSC,DRS,2023-01-01 00:00:34.672,null,0,>=1 OPEN,90390/RSC/DRS/ALL,90390,0,Summary of Train Doors Status with Open,5,0,-1,-1"
}
}
]
}
# results 1st one with \r second not
{
"docs": [
{
"error": {
"root_cause": [
{
"type": "illegal_argument_exception",
"reason": "Illegal character inside unquoted field at 178"
}
],
"type": "illegal_argument_exception",
"reason": "Illegal character inside unquoted field at 178"
}
},
{
"doc": {
"_index": "_index",
"_version": "-3",
"_id": "_id",
"_source": {
"severity": 0,
"graphicelement": -1,
"sourcetime": "2023-01-01T00:00:34.672+08:00",
"subsystem": "DRS",
"equipment": "90390/RSC/DRS/ALL",
"description": "Summary of Train Doors Status with Open",
"operator": "null",
"mmsstate": 0,
"system": "RSC",
"@timestamp": "2023-01-01T00:00:34.672+08:00",
"zone": -1,
"alarmvalue": 0,
"alarm": "OCC_0",
"eventtype": "DIAG_IAllDoorModeStatus[2]",
"location": "90390",
"id": 54146161,
"state": 5,
"value": ">=1 OPEN",
"uniqueid": "OCC_54146161"
},
"_ingest": {
"timestamp": "2023-11-22T18:30:41.586762844Z"
}
}
}
]
}
This is scary.
Its apparently still happening with my original (uncleaned) csv files that worked earlier today.
Let me try investigate further
I suspect you "Saved" your data with Excell or Notepad++ or something and it changed the carriage returns or something...
Man you are running into everything!!!
