Dear Community,
Im running Kibana 8.4.3 and I noticed a deprecation warning. So I used the new way for Controls.
I have two fields, where I can add email addresses (sender and recipient). When Im looking for "jira@" then I see tha email in the list. But when I want to search for it and type it into the searchbar and press enter, my result is empty.
How can I solve this problem?
Can you share a screenshot or recording of what you are trying to achieve?

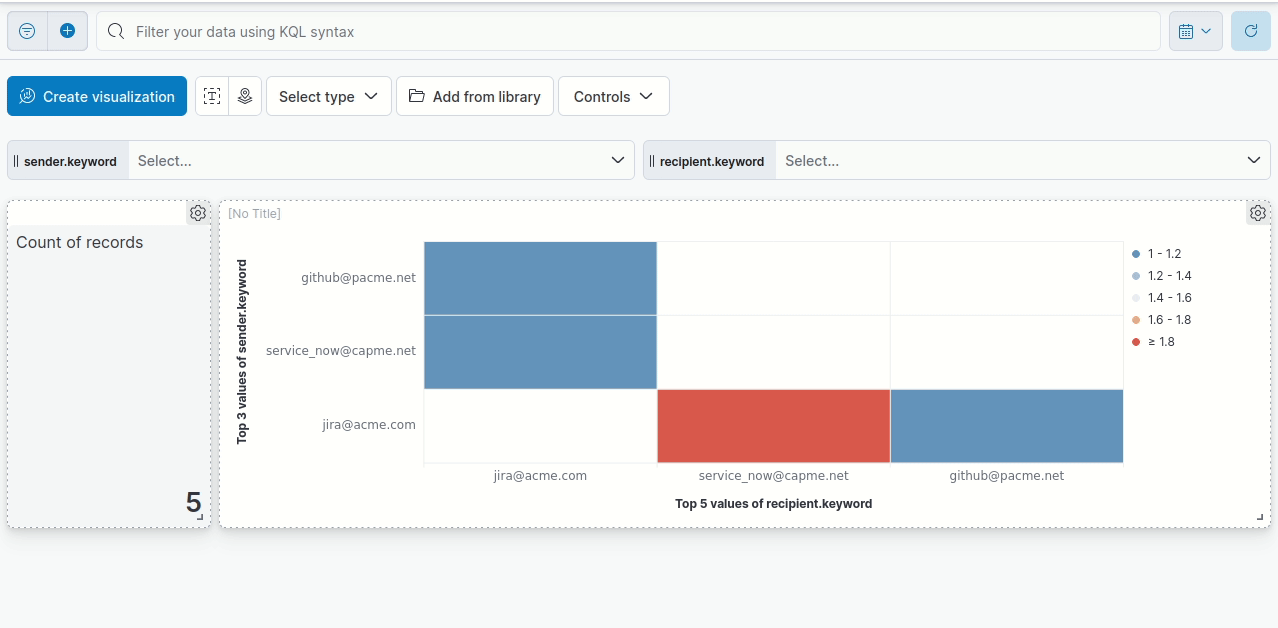

I added some sample data on 8.5.0 and created a dashboard and I can't replicate the error
# Create an index storing both text and keyword values
# to search and aggregate
PUT discuss-320882
{
"mappings": {
"properties": {
"sender": { "type": "text",
"fields": {
"keyword": {
"type": "keyword"
}
}
},
"recipient": { "type": "text",
"fields": {
"keyword": {
"type": "keyword"
}
}
}
}
},
"settings": {
"number_of_replicas": 1
}
}
# Ingest some data, including a field witouht a process_xxx
# field to test things
POST discuss-320882/_bulk
{ "index":{}}
{ "sender":"jira@acme.com", "recipient": "github@pacme.net"}
{ "index":{}}
{ "sender":"jira@acme.com", "recipient": "service_now@capme.net"}
{ "index":{}}
{ "sender":"jira@acme.com", "recipient": "service_now@capme.net"}
{ "index":{}}
{ "sender":"github@pacme.net", "recipient": "jira@acme.com"}
{ "index":{}}
{ "sender":"service_now@capme.net", "recipient": "jira@acme.com"}
# Test the results
GET discuss-320882/_search
# Create a Kibana data view
POST kbn:/api/data_views/data_view
{
"data_view": {
"title": "discuss-320882",
"name": "Discuss 320882 data"
}
}
Does this help?
You need to use KQL syntax in the search bar perhaps that is the issue
fieldname: "jira@mydomain.com"
Plus if you already "filtered the email with the control" another email will not show up in the search result.... the control filters the entire dashboard and search
Hello @jsanz
here is an older screenshot. You see the controls on the top and a filter over time/filter over a state. It should be possible to get an drilldown, focus on a second page with a table and specific fields (@timestamp, exim_msg_id, exim_sender, exim_recipient and exim_msg_state).
Hello @stephenb
thx you I will test the KQL syntax next year.
Hey there,
I opened my dashboard in Kibana and tried to create a two searches. I had one search exim_recipient : * and exim_semder : * .
How can I filter this to my dashboard?
Thx

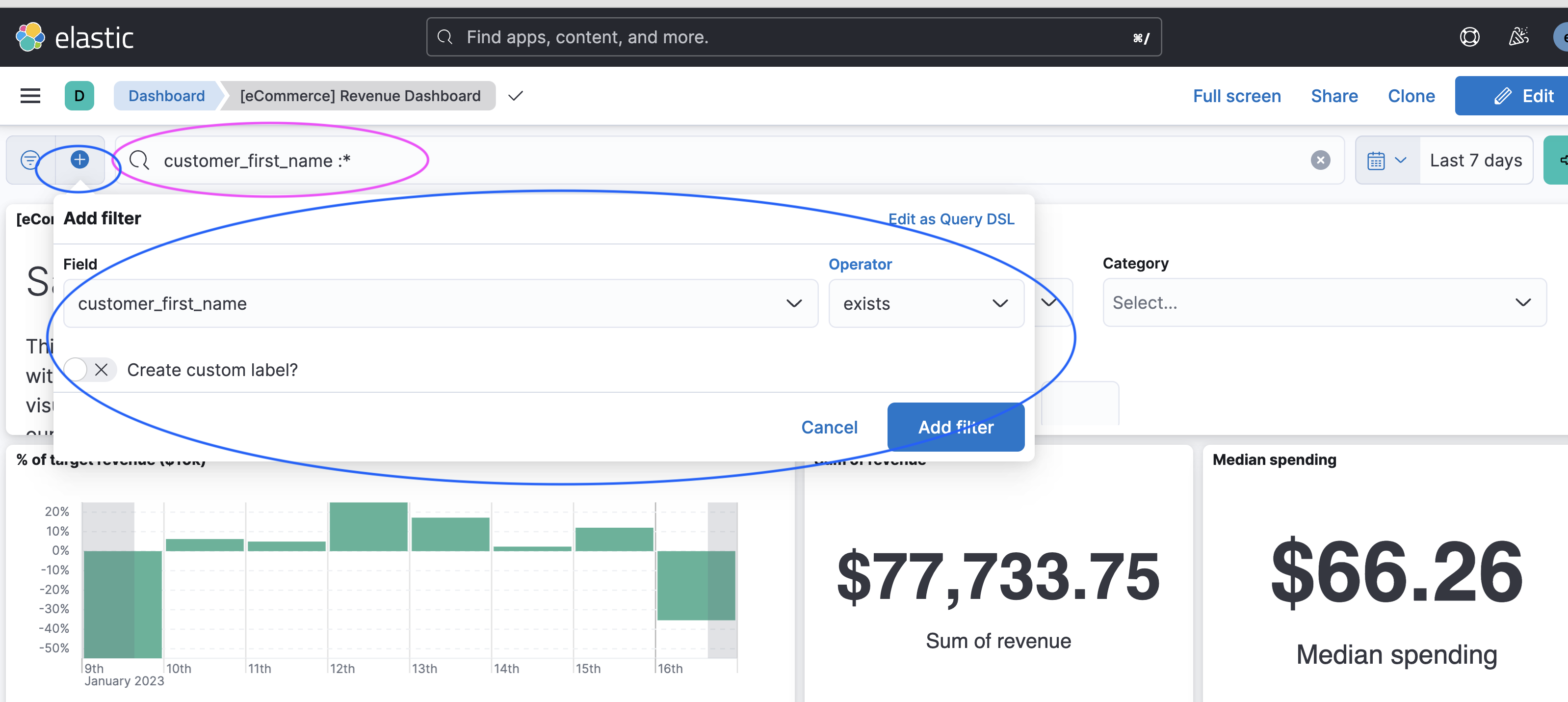

Hi am a bit confused you can either:
You do not need both.
See here:
I used the blue version and saved my both querys.
Afaik as I understood this filter is added to the full dashboard, right? Because I want to search for a recipient and also for a sender. But when the filter for both is on exists, then my wanted result isn't visible.
How can I add this filter/search for my controls?
thank you!
Each filter applies to every visualization on the dashboard, unless you have specifically configured a visualization to "ignore global filters"
And
When you apply the 2 filters they are ANDed ...
Apologies I don't understand ... do both sender and recipient exist at the same time... in the same document?
You will need to provide more information / clarity.
If you really mean if
exim_recipient : * OR exim_semder : * then that is different.... and take a little more work.
Try this in the KQL Bar, if this is what you want I will help construct a filter...
exim_recipient : * or exim_semder : *
What do you want?
Let my explain what I want to to: I want to build with two controls a raw filter on my mail traffic. E.g. all traffic between noreply@domain.net and custumer@foo.com. I get a list of MSGIDs and can choose one and build a drill down to find asap the wanted information.
Unless you provide fairly complete samples of your data. I don't think I can help.
I still don't understand if you're trying to filter on whether the field exists or an exact value.
It's Unclear.
You should be able to use two controls with the drop down list each filtered on the field you want.... But then again I'm not sure because You have not provided actual samples of the data any detail description of what you want.
here are some sample logs:
2023-01-10 13:04:42 23HkTd-0007I3-QZ <= jira@evil.corp H=server1.evil.corp [1.1.1.1] P=esmtps X=TLS1.3:ECDHE_RSA_AES_256_GCM_SHA384:256 CV=no S=10000 id=CONFLUENCE
2023-01-10 13:04:42 23pHkTd-0007I3-QZ => /var/spool/vmail/evil.corp/max.headroom/Maildir (max.headroom@evil.corp) <max.headroom@evil.corp> R=virtual_domains T=dovecot_virtual_delivery
I use the grok pattern of exim and filter for the flags ( => <= **) and get both mail adresses in it own var.
Apologies I want to see what the processed data looks like in elasticsearch, not the raw log lines.
What do the JSON documents look like in Elasticsearch?
Ah…
where can I find the JSON view in Elastic, that I can share it?
thx

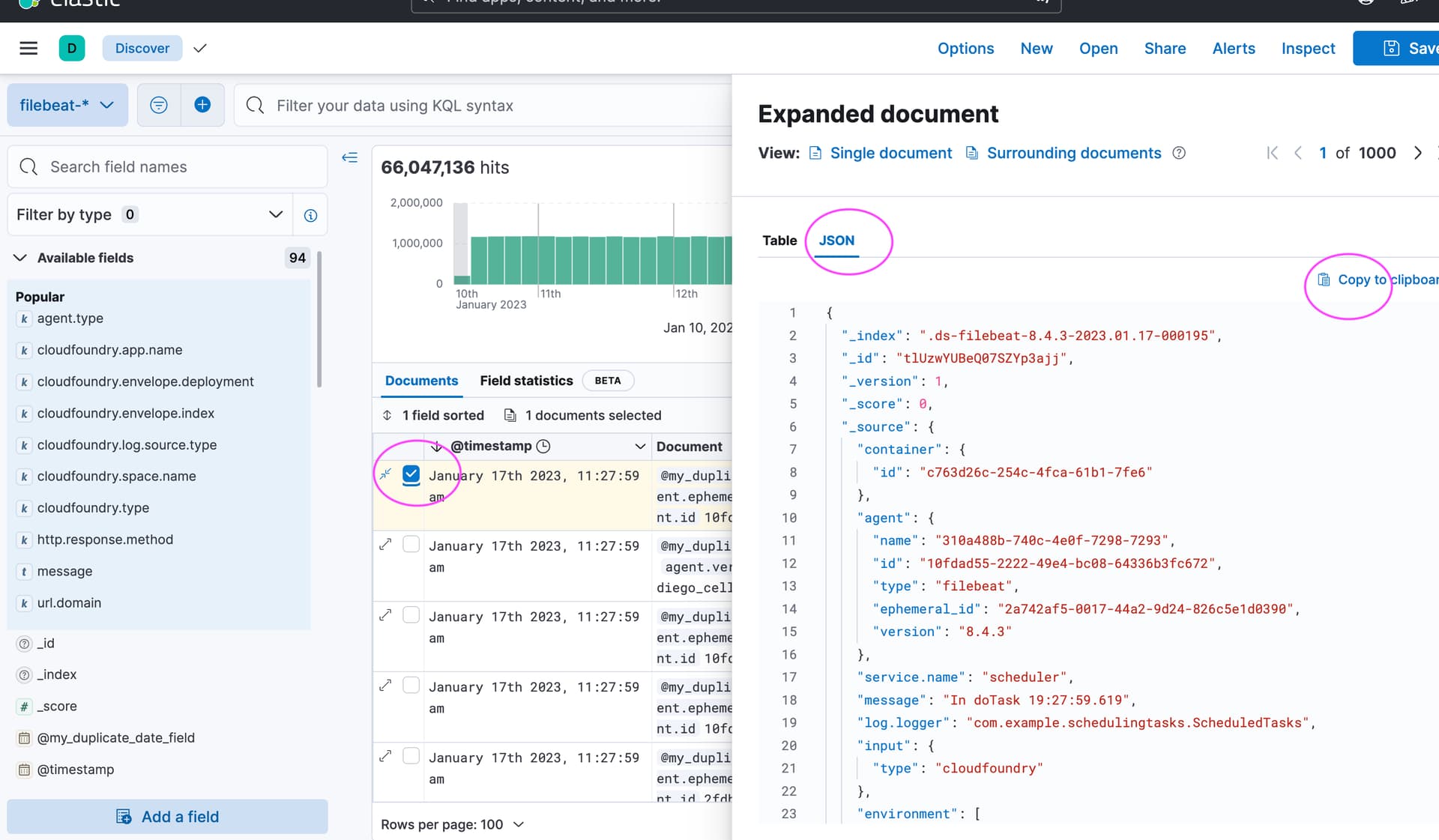

Kibana -> Discover, Select a Document, and Look at the JSON
Just to be sure:
Mark at the right side (mouse over: Click or hit enter to interact with cell content) and then Copy to clipboard in JSON structure?
Sorry for the delay…
is there a (easy) way to prevent the publication of sensitive data here?
No you will need to anonymize manually...
Please do not post any sensitive data.
We only need a few docs and then what you want the results to be.
# field example, where exim_flags: **
{
"_index": "logstash-exim-001234",
"_id": "MmWk2oUB1Y2dhY6YBV85",
"_version": 1,
"_score": 0,
"_source": {
"exim_msg_state": "routing defer",
"tags": [
"beats__codec_plain_applied"
],
"next_grok": " input@mail.net routing defer (-51): retry time not reached",
"exim_year": "2023",
"event": {
"timezone": "+01:00"
},
"@version": "1",
"exim_time": "19:00:52",
"state": "mainlog",
"@timestamp": "2023-01-10T18:00:59.389Z",
"real_exim_date": "2023-01-10 19:00:52",
"host": {
"mac": [
"XXX"
],
"os": {
"version": "X",
"codename": "X",
"family": "X",
"kernel": "X",
"type": "linux",
"name": "X",
"platform": "X"
},
"containerized": false,
"architecture": "x86_64",
"id": "528e142b0f17415ab7f1efe333385a85",
"ip": [
"1.2.3.4"
],
"name": "SERVER1",
"hostname": "SERVER1"
},
"exim_day": "22",
"exim_flags": "==",
"agent": {
"version": "7.17.6",
"ephemeral_id": "92978d0c-30c8-4aac-9bbe-86fc2c7ccea2",
"type": "filebeat",
"id": "866641e8-1fa9-4a7e-a33f-b2ee251bc205",
"name": "SERVER1",
"hostname": "SERVER1"
},
"exim_month": "01",
"exim_recipient": "input@mail.net",
"exim_msg_id": "1pIlON-0006A7-iA",
"ecs": {
"version": "1.12.0"
},
"": {
"type": "filestream"
},
"log": {
"offset": 10561162,
"file": {
"path": "/var/log/exim4/mainlog"
}
},
"message": "1pIlON-0006A7-iA == input@mail.net routing defer (-51): retry time not reached"
},
"fields": {
"agent.version.keyword": [
"7.17.6"
],
"exim_month.keyword": [
"01"
],
"exim_recipient.keyword": [
"input@mail.net"
],
"exim_flags": [
"=="
],
"host.architecture.keyword": [
"x86_64"
],
"host.name.keyword": [
"SERVER1"
],
"exim_msg_id.keyword": [
"1pIlON-0006a6-iA"
],
"exim_year": [
"2023"
],
"host.hostname": [
"SERVER1"
],
"host.mac": [
"X"
],
"agent.hostname.keyword": [
"SERVER1"
],
"exim_msg_state.keyword": [
"routing defer"
],
"real_exim_date": [
"2023-01-10 19:00:52"
],
"ecs.version.keyword": [
"1.12.0"
],
"host.ip.keyword": [
"1.2.3.4"
],
"host.os.version": [
"X"
],
"host.os.name": [
"X"
],
"exim_month": [
"01"
],
"exim_time": [
"19:00:52"
],
"host.id.keyword": [
"X"
],
"agent.name": [
"SERVER1"
],
"state": [
"mainlog"
],
"host.name": [
"SERVER1"
],
"real_exim_date.keyword": [
"2023-01-10 19:00:52"
],
"host.os.version.keyword": [
"X"
],
"exim_time.keyword": [
"19:00:52"
],
"host.os.type": [
"linux"
],
"agent.id.keyword": [
"X"
],
"@version.keyword": [
"1"
],
".type": [
"filestream"
],
"log.offset": [
X
],
"agent.hostname": [
"SERVER1"
],
"tags": [
"beats__codec_plain_applied"
],
"host.architecture": [
"x86_64"
],
"agent.id": [
"X"
],
"ecs.version": [
"1.12.0"
],
"host.containerized": [
false
],
"message.keyword": [
"1pIlON-0006a6-iA == input@mail.net routing defer (-51): retry time not reached"
],
"state.keyword": [
"mainlog"
],
"host.hostname.keyword": [
"SERVER1"
],
"agent.version": [
"7.17.6"
],
"exim_recipient": [
"input@mail.net"
],
"exim_year.keyword": [
"2023"
],
"host.os.family": [
"X"
],
"event.timezone.keyword": [
"+01:00"
],
".type.keyword": [
"filestream"
],
"tags.keyword": [
"beats__codec_plain_applied"
],
"exim_msg_id": [
"1pIlON-0006a6-iA"
],
"host.ip": [
"1.2.3.4"
],
"agent.type": [
"filebeat"
],
"next_grok": [
" @ routing defer (-51): retry time not reached"
],
"host.os.kernel.keyword": [
"X"
],
"host.os.kernel": [
"X"
],
"exim_msg_state": [
"routing defer"
],
"@version": [
"1"
],
"host.os.name.keyword": [
"X"
],
"host.id": [
"528e142b0f17415affe5d262385a85"
],
"log.file.path.keyword": [
"/var/log/exim4/mainlog"
],
"event.timezone": [
"+01:00"
],
"agent.type.keyword": [
"filebeat"
],
"agent.ephemeral_id.keyword": [
"X"
],
"host.os.codename.keyword": [
"X"
],
"host.mac.keyword": [
"X"
],
"agent.name.keyword": [
"SERVER1"
],
"exim_flags.keyword": [
"=="
],
"host.os.codename": [
"X"
],
"exim_day": [
"10"
],
"message": [
"1pIlON-0006a6-iA == input@mail.net routing defer (-51): retry time not reached"
],
"exim_day.keyword": [
"10"
],
"host.os.family.keyword": [
"x"
],
"host.os.type.keyword": [
"linux"
],
"@timestamp": [
"2023-01-10T18:00:59.389Z"
],
"host.os.platform.keyword": [
"X"
],
"host.os.platform": [
"X"
],
"log.file.path": [
"/var/log/exim4/mainlog"
],
"agent.ephemeral_id": [
"9sdrrtc-3rr8-4aac-9bbe-98fc2c7ccea2"
],
"next_grok.keyword": [
" input@mail.net routing defer (-51): retry time not reached"
]
}
}
# field example, where exim_flags: =>
{
"_index": "logstash-exim-000017",
"_id": "lV5f2oUBUskX8assdfU2qk",
"_version": 1,
"_score": 0,
"_source": {
"state": "mainlog",
"real_exim_date": "2023-01-10 17:45:53",
"exim_day": "22",
"exim_flags": "=>",
"agent": {
"hostname": "SERVER1",
"ephemeral_id": "92978d0c-30c8-4aac-9bbe-96fc2c7ccea2",
"type": "filebeat",
"id": "866641e8-1fa9-4a7e-a33f-a3ee251bc205",
"name": "SERVER1",
"version": "7.17.6"
},
"exim_month": "01",
"exim_recipient": "foo@bar.net",
"exim_msg_id": "1pJdTc-0002AR-Ma",
"exim_ciphers": "ECDHE_RSA_AES_256_GCM_SHA384:256",
"": {
"type": "filestream"
},
"log": {
"offset": 10459499,
"file": {
"path": "/var/log/exim4/mainlog"
}
},
"exim_remote_smtp": "remote_smtp",
"exim_msg_state": "delivered",
"tags": [
"beats__codec_plain_applied"
],
"next_grok": " foo@bar.net R=dnslookup T=remote_smtp H=mail.bar.net [198.27.92.8] X=TLS1.0:ECDHE_RSA_AES_256_GCM_SHA384:256 CV=no C=\"250 OK id=1pJdTd-0007FL-1Z\"",
"exim_year": "2023",
"remote_host": "198.27.92.8",
"event": {
"timezone": "+01:00"
},
"@version": "1",
"exim_time": "17:45:53",
"@timestamp": "2023-01-10T16:45:55.104Z",
"host": {
"mac": [
"X"
],
"os": {
"version": "X",
"codename": "X",
"family": "X",
"kernel": "X",
"type": "linux",
"name": "X",
"platform": "X"
},
"containerized": false,
"architecture": "x86_64",
"id": "528e142b0rtrassddt8899efd262385a85",
"ip": [
"1.10.1.2"
],
"name": "SERVER1",
"hostname": "SERVER1"
},
"exim_router": "dnslookup",
"exim_cv_value": "no",
"ecs": {
"version": "1.12.0"
},
"remote_hostname": "mail.bar.net",
"exim_tls": "TLS1.0",
"message": " => foo@bar.net R=dnslookup T=remote_smtp H=mail.bar.net [198.27.92.8] X=TLS1.0:ECDHE_RSA_AES_256_GCM_SHA384:256 CV=no C=\"250 OK id=1pJdTd-0007FL-1Z\""p
},
"fields": {
"agent.version.keyword": [
"7.17.6"
],
"exim_month.keyword": [
"01"
],
"exim_recipient.keyword": [
"foo@bar.net"
],
"exim_flags": [
"=>"
],
"host.architecture.keyword": [
"x86_64"
],
"remote_hostname.keyword": [
"mail.bar.net"
],
"host.name.keyword": [
"SERVER1"
],
"exim_msg_id.keyword": [
"1pJdTd-0007FL-1Z"
],
"exim_year": [
"2023"
],
"host.hostname": [
"SERVER1"
],
"exim_cv_value.keyword": [
"no"
],
"host.mac": [
"X"
],
"exim_ciphers": [
"ECDHE_RSA_AES_256_GCM_SHA384:256"
],
"agent.hostname.keyword": [
"SERVER1"
],
"exim_msg_state.keyword": [
"delivered"
],
"real_exim_date": [
"2023-01-10 17:45:53"
],
"ecs.version.keyword": [
"1.12.0"
],
"host.ip.keyword": [
"10.23.24.25"
],
"host.os.version": [
"X"
],
"exim_router": [
"dnslookup"
],
"exim_tls.keyword": [
"TLS1.0"
],
"host.os.name": [
"X"
],
"exim_month": [
"01"
],
"exim_time": [
"17:45:53"
],
"host.id.keyword": [
"528e142b046ajgj7f1efd262385a85"
],
"agent.name": [
"SERVER1"
],
"state": [
"mainlog"
],
"host.name": [
"SERVER1"
],
"real_exim_date.keyword": [
"2023-01-10 17:45:53"
],
"host.os.version.keyword": [
"x"
],
"exim_time.keyword": [
"17:45:53"
],
"host.os.type": [
"linux"
],
"exim_cv_value": [
"no"
],
"agent.id.keyword": [
"861234-1wa9-4a7e-a33f-b2ee251bc205"
],
"@version.keyword": [
"1"
],
".type": [
"filestream"
],
"remote_hostname": [
"mail.bar.net"
],
"log.offset": [
10459499
],
"agent.hostname": [
"SERVER1"
],
"remote_host": [
"198.27.92.8"
],
"tags": [
"beats__codec_plain_applied"
],
"remote_host.keyword": [
"198.27.92.8"
],
"host.architecture": [
"x86_64"
],
"agent.id": [
"866641erafffed-4a7e-a33f-b2ee251bc205"
],
"ecs.version": [
"1.12.0"
],
"host.containerized": [
false
],
"message.keyword": [
"1pJdTc-0001AR-Ma => foo@bar.net R=dnslookup T=remote_smtp H=mail.bar.net [198.27.92.8] X=TLS1.0:ECDHE_RSA_AES_256_GCM_SHA384:256 CV=no C=\"250 OK id=1pJdTd-0007FL-1Z\""
],
"state.keyword": [
"mainlog"
],
"host.hostname.keyword": [
"SERVER1"
],
"agent.version": [
"7.17.6"
],
"exim_recipient": [
"foo@bar.net"
],
"exim_year.keyword": [
"2023"
],
"host.os.family": [
"x"
],
"event.timezone.keyword": [
"+01:00"
],
"exim_remote_smtp.keyword": [
"remote_smtp"
],
".type.keyword": [
"filestream"
],
"tags.keyword": [
"beats__codec_plain_applied"
],
"exim_msg_id": [
"1pJdTd-0007FL-1Z"
],
"exim_tls": [
"TLS1.0"
],
"exim_remote_smtp": [
"remote_smtp"
],
"host.ip": [
"10.21.22.24"
],
"agent.type": [
"filebeat"
],
"next_grok": [
" foo@bar.net R=dnslookup T=remote_smtp H=mail.bar.net [198.27.92.8] X=TLS1.0:ECDHE_RSA_AES_256_GCM_SHA384:256 CV=no C=\"250 OK id=1pJdTd-0007FL-1Z\""
],
"host.os.kernel.keyword": [
"x"
],
"host.os.kernel": [
"x"
],
"exim_msg_state": [
"delivered"
],
"@version": [
"1"
],
"host.os.name.keyword": [
"x"
],
"host.id": [
"52344b0f17415cdfetefd262385a85"
],
"log.file.path.keyword": [
"/var/log/exim4/mainlog"
],
"event.timezone": [
"+01:00"
],
"agent.type.keyword": [
"filebeat"
],
"agent.ephemeral_id.keyword": [
"98878d0c-30c8-4aac-affe-86fc2c7ccea2"
],
"host.os.codename.keyword": [
"xr"
],
"host.mac.keyword": [
"x"
],
"agent.name.keyword": [
"SERVER1"
],
"exim_flags.keyword": [
"=>"
],
"host.os.codename": [
"x"
],
"exim_day": [
"22"
],
"message": [
"1pJdTd-0007FL-1Z => foo@bar.net R=dnslookup T=remote_smtp H=mail.bar.net [198.27.92.8] X=TLS1.0:ECDHE_RSA_AES_256_GCM_SHA384:256 CV=no C=\"250 OK id=1pJdTd-0007FL-1Z\""
],
"exim_day.keyword": [
"22"
],
"host.os.family.keyword": [
"x"
],
"exim_ciphers.keyword": [
"ECDHE_RSA_AES_256_GCM_SHA384:256"
],
"host.os.type.keyword": [
"linux"
],
"@timestamp": [
"2023-01-10T16:45:55.104Z"
],
"host.os.platform.keyword": [
"x"
],
"host.os.platform": [
"x"
],
"log.file.path": [
"/var/log/exim4/mainlog"
],
"agent.ephemeral_id": [
"97890c-30c8-4aac-9bbe-86fc25askjdea2"
],
"exim_router.keyword": [
"dnslookup"
],
"next_grok.keyword": [
" foo@bar.net R=dnslookup T=remote_smtp H=mail.bar.net [198.27.92.8] X=TLS1.0:ECDHE_RSA_AES_256_GCM_SHA384:256 CV=no C=\"250 OK id=1pJdTd-0007FL-1Z\""
]
}
}
# field example, where exim_flags: <=
{
"_index": "logstash-exim-000135",
"_id": "8fdf2oUBrnnsddllHTC",
"_version": 1,
"_score": 0,
"_source": {
"protocol": "esmtpa",
"state": "mainlog",
"real_exim_date": "2023-01-10 17:45:52",
"exim_day": "10",
"exim_flags": "<=",
"agent": {
"hostname": "SERVER1",
"ephemeral_id": "929789asoid-40c8-4aac-9bbe-86gf3c7ccea2",
"type": "filebeat",
"id": "866e41e8-1fa9-445e-a44g-b2ff251bc346",
"name": "SERVER1",
"version": "7.17.6"
},
"exim_month": "01",
"exim_msg_id": "1pJdTc-0001AR-Ma",
"": {
"type": "filestream"
},
"log": {
"offset": 10459142,
"file": {
"path": "/var/log/exim4/mainlog"
}
},
"exim_msg_state": "received",
"tags": [
"beats__codec_plain_applied"
],
"next_grok": " noreply@domain.net H=local.domain.net (local.domain.net) [1.20.0.137] P=esmtpa A=login_virtual_exim:spool@domain.net S=15678,
"exim_year": "2023",
"remote_host": "10.10.0.137",
"event": {
"timezone": "+01:00"
},
"@version": "1",
"exim_time": "17:45:52",
"@timestamp": "2023-01-10T16:45:53.103Z",
"remote_heloname": "local.domain.net",
"host": {
"mac": [
"X"
],
"os": {
"version": "X",
"codename": "X",
"family": "X",
"kernel": "X",
"type": "linux",
"name": "X",
"platform": "X"
},
"containerized": false,
"architecture": "x86_64",
"id": "528e142b04567afd5ab7f1efd262385a85",
"ip": [
"10.10.0.137"
],
"name": "SERVER1",
"hostname": "SERVER1"
},
"exim_mtaspooler": "login_virtual_exim:spool@domain.net",
"ecs": {
"version": "1.12.0"
},
"exim_msg_size": "1147",
"exim_sender": "noreply@domain.net",
"remote_hostname": "local.domain.net",
"message": "1pJdTc-0001AR-Ma <= noreply@domain.net H=local.domain.net (local.domain.net) [1.20.0.137] P=esmtpa A=login_virtual_exim:spooler@domain.net S=15678"
},
"fields": {
"agent.version.keyword": [
"7.17.6"
],
"exim_mtaspooler.keyword": [
"login_virtual_exim:spooler@domain.net"
],
"exim_month.keyword": [
"01"
],
"exim_flags": [
"<="
],
"host.architecture.keyword": [
"x86_64"
],
"remote_hostname.keyword": [
"local.domain.net""
],
"host.name.keyword": [
"SERVER1"
],
"exim_msg_id.keyword": [
"1pJdTc-0001AR-Ma"
],
"exim_year": [
"2023"
],
"host.hostname": [
"SERVER1"
],
"host.mac": [
"x"
],
"agent.hostname.keyword": [
"SERVER1"
],
"exim_msg_state.keyword": [
"received"
],
"protocol": [
"esmtpa"
],
"real_exim_date": [
"2023-01-10 17:45:52"
],
"ecs.version.keyword": [
"1.12.0"
],
"host.ip.keyword": [
"1.2.3.4"
],
"host.os.version": [
"x"
],
"host.os.name": [
"x"
],
"exim_month": [
"01"
],
"exim_time": [
"17:45:52"
],
"host.id.keyword": [
"528ashbk5917415ab7f1efd262385a85"
],
"agent.name": [
"SERVER1"
],
"state": [
"mainlog"
],
"host.name": [
"SERVER1"
],
"real_exim_date.keyword": [
"2023-01-10 17:45:52"
],
"host.os.version.keyword": [
"x"
],
"exim_time.keyword": [
"17:45:52"
],
"host.os.type": [
"linux"
],
"agent.id.keyword": [
"8684591e8-1fa9-4a7e-a33f-b2ee251bc205"
],
"@version.keyword": [
"1"
],
".type": [
"filestream"
],
"remote_hostname": [
"local.domain.net"
],
"log.offset": [
10459142
],
"agent.hostname": [
"SERVER1"
],
"remote_host": [
"10.20.0.137"
],
"tags": [
"beats__codec_plain_applied"
],
"remote_host.keyword": [
"10.1.0.22"
],
"host.architecture": [
"x86_64"
],
"agent.id": [
"866641e9-1fa9-4a7e-a33f-b2ff2dfc205"
],
"ecs.version": [
"1.12.0"
],
"host.containerized": [
false
],
"message.keyword": [
"1pJdTc-0001AR-Ma <= noreply@domain.net H=local.domain.net (local.domain.net) [10.20.0.137] P=esmtpa A=login_virtual_exim:spooler@domain.net S=15678"
],
"state.keyword": [
"mainlog"
],
"host.hostname.keyword": [
"SERVER1"
],
"agent.version": [
"7.17.6"
],
"protocol.keyword": [
"esmtpa"
],
"exim_year.keyword": [
"2023"
],
"host.os.family": [
"x"
],
"event.timezone.keyword": [
"+01:00"
],
".type.keyword": [
"filestream"
],
"exim_msg_size": [
"15678"
],
"tags.keyword": [
"beats__codec_plain_applied"
],
"remote_heloname.keyword": [
"local.domain.net"
],
"exim_msg_id": [
"1pJdTc-0001AR-Ma"
],
"host.ip": [
"1.2.1.1",
],
"agent.type": [
"filebeat"
],
"remote_heloname": [
"local.domain.net"
],
"next_grok": [
" noreply@domain.net H=local.domain.net (local.domain.net) [10.20.0.137] P=esmtpa A=login_virtual_exim:spooler@domain.net S=15678"
],
"exim_sender": [
"noreply@domain.net"
],
"host.os.kernel.keyword": [
"x"
],
"host.os.kernel": [
"x"
],
"exim_msg_state": [
"received"
],
"@version": [
"1"
],
"host.os.name.keyword": [
"x"
],
"host.id": [
"528e112340f13815ab7f1efd262385a85"
],
"log.file.path.keyword": [
"/var/log/exim4/mainlog"
],
"event.timezone": [
"+01:00"
],
"agent.type.keyword": [
"filebeat"
],
"agent.ephemeral_id.keyword": [
"92978d0c-40c8-4bbc-9bbe-86fc2c7ccea2"
],
"host.os.codename.keyword": [
"x"
],
"host.mac.keyword": [
"x"
],
"agent.name.keyword": [
"SERVER1"
],
"exim_flags.keyword": [
"<="
],
"host.os.codename": [
"x"
],
"exim_day": [
"10"
],
"exim_msg_size.keyword": [
""
],
"message": [
"1pJdTc-0001AR-Ma <= noreply@domain.net H=local.domain.net (local.domain.net) [10.20.0.137] P=esmtpa A=login_virtual_exim:spooler@domain.net S=15678"
],
"exim_day.keyword": [
"22"
],
"host.os.family.keyword": [
"x"
],
"exim_mtaspooler": [
"login_virtual_exim:spooler@domian.net"
],
"exim_sender.keyword": [
"noreply@domain.net"
],
"host.os.type.keyword": [
"linux"
],
"@timestamp": [
"2023-01-10T16:45:53.103Z"
],
"host.os.platform.keyword": [
"x"
],
"host.os.platform": [
"x"
],
"log.file.path": [
"/var/log/exim4/mainlog"
],
"agent.ephemeral_id": [
"98978d0c-30c8-4aac-9bbe-86fc2c7ccea2"
],
"next_grok.keyword": [
" noreply@domain.net H=local.domain.net (local.domain.net) [10.20.0.137] P=esmtpa A=login_virtual_exim:spooler@domain.net S=15678"
]
}
}
# field example, where exim_flags: **
{
"_index": "logstash-exim-000245",
"_id": "jA9JTYUBUskXasfdf5kzG1",
"_version": 1,
"_score": 0,
"_ignored": [
"message.keyword",
"next_grok.keyword"
],
"_source": {
"event": {
"timezone": "+01:00"
},
"": {
"type": "filestream"
},
"tags": [
"beats__codec_plain_applied",
"_grokparsefailure"
],
"exim_msg_state": "rejected",
"@version": "1",
"log": {
"file": {
"path": "/var/log/exim4/mainlog"
},
"offset": 7020686
},
"state": "mainlog",
"exim_year": "2022",
"host": {
"mac": [
"x"
],
"os": {
"kernel": "x",
"family": "x",
"codename": "x",
"version": "x",
"type": "linux",
"name": "x",
"platform": "x"
},
"containerized": false,
"architecture": "x86_64",
"ip": [
"1.2.3.4",
],
"id": "528e14skdflkdfb7f1efd262385a85",
"name": "SERVER1",
"hostname": "SERVER1"
},
"exim_month": "12",
"exim_day": "26",
"exim_time": "08:15:43",
"@timestamp": "2022-12-10T07:15:44.076Z",
"exim_flags": "**",
"exim_sender": [
"jane.doe@elasticsearch.com",
"jane.doe@elasticsearch.com"
],
"ecs": {
"version": "1.12.0"
},
"agent": {
"id": "866641e8-1fa9-4a7e-a33f-b2ee251bc205",
"ephemeral_id": "92978d0c-30c8-4aac-9bbe-86fc2c7ccea2",
"type": "filebeat",
"version": "7.17.6",
"name": "SERVER1",
"hostname": "SERVER1"
},
"exim_msg_id": "1p9hi2-0005BO-EM",
"next_grok": " jane.doe@elasticsearch.com <Jane.Doe@elasticsearch.com> R=dnslookup T=remote_smtp H=mail.elasticsearch.com [54.149.131.206] X=TLS1.2:DHE_RSA_AES_256_GCM_SHA384:256 CV=yes: SMTP error from remote mail server after RCPT TO:<Jane.Doe@elasticsearch.com>: 550 #5.1.0 Address rejected.",
"real_exim_date": "2022-12-10 08:15:43",
"message": "1p9hi2-0005BO-EM ** jane.doe@elasticsearch.com <Jane.Doe@elasticsearch.com> R=dnslookup T=remote_smtp H=mail.elasticsearch.com [54.149.131.206] X=TLS1.2:DHE_RSA_AES_256_GCM_SHA384:256 CV=yes: SMTP error from remote mail server after RCPT TO:<Jane.Doe@elasticsearch.com>: 550 #5.1.0 Address rejected."
},
"fields": {
"agent.version.keyword": [
"7.17.6"
],
"exim_month.keyword": [
"12"
],
"exim_flags": [
"**"
],
"host.architecture.keyword": [
"x86_64"
],
"host.name.keyword": [
"SERVER1"
],
"exim_year": [
"2022"
],
"host.hostname": [
"SERVER1"
],
"exim_msg_id.keyword": [
"1p9hi2-0005BO-EM"
],
"host.mac": [
"x"
],
"agent.hostname.keyword": [
"SERVER1"
],
"exim_msg_state.keyword": [
"rejected"
],
"real_exim_date": [
"2022-12-10 08:15:43"
],
"host.ip.keyword": [
"1.2.3.4"
],
"ecs.version.keyword": [
"1.12.0"
],
"host.os.version": [
"x"
],
"exim_month": [
"12"
],
"host.os.name": [
"x"
],
"exim_time": [
"08:15:43"
],
"host.id.keyword": [
"52567sjadfgb0f17415ab7f1efd262385a85"
],
"agent.name": [
"SERVER1"
],
"host.name": [
"SERVER1"
],
"state": [
"mainlog"
],
"real_exim_date.keyword": [
"2022-12-10 08:15:43"
],
"exim_time.keyword": [
"08:15:43"
],
"host.os.version.keyword": [
"x"
],
"host.os.type": [
"linux"
],
"agent.id.keyword": [
"869941e8-1fa9-4a7e-a33f-b2ee251bc205"
],
"@version.keyword": [
"1"
],
".type": [
"filestream"
],
"log.offset": [
7020686
],
"agent.hostname": [
"SERVER1"
],
"tags": [
"beats__codec_plain_applied",
"_grokparsefailure"
],
"host.architecture": [
"x86_64"
],
"agent.id": [
"86669238e8-1fa9-4a7e-a33f-b2ee251bc205"
],
"ecs.version": [
"1.12.0"
],
"host.containerized": [
false
],
"state.keyword": [
"mainlog"
],
"host.hostname.keyword": [
"SERVER1"
],
"agent.version": [
"7.17.6"
],
"exim_year.keyword": [
"2022"
],
"host.os.family": [
"x"
],
"event.timezone.keyword": [
"+01:00"
],
".type.keyword": [
"filestream"
],
"tags.keyword": [
"beats__codec_plain_applied",
"_grokparsefailure"
],
"exim_msg_id": [
"1p9hi2-0005BO-EM"
],
"host.ip": [
"1.2.3.4"
],
"agent.type": [
"filebeat"
],
"next_grok": [
"jane.doe@elasticsearch.com <Jane.Doe@elasticsearch,com> R=dnslookup T=remote_smtp H=mail.elesticsearch.com [54.149.131.206] X=TLS1.2:DHE_RSA_AES_256_GCM_SHA384:256 CV=yes: SMTP error from remote mail server after RCPT TO:<Jane.Doe@eleasticsearch.com>: 550 #5.1.0 Address rejected."
],
"host.os.kernel.keyword": [
"x"
],
"exim_sender": [
"jane.doe@elasticsearch.com",
"jane.doe@elasticsearch.com"
],
"host.os.kernel": [
"x"
],
"exim_msg_state": [
"rejected"
],
"@version": [
"1"
],
"host.os.name.keyword": [
"x"
],
"host.id": [
"567hs42b0f17415ab7f1efd262385a85"
],
"log.file.path.keyword": [
"/var/log/exim4/mainlog"
],
"event.timezone": [
"+01:00"
],
"agent.type.keyword": [
"filebeat"
],
"agent.ephemeral_id.keyword": [
"92988d0c-30c8-4aac-9bbe-86fc2c7ccea2"
],
"host.os.codename.keyword": [
"x"
],
"host.mac.keyword": [
"x"
],
"agent.name.keyword": [
"SERVER1"
],
"exim_flags.keyword": [
"**"
],
"host.os.codename": [
"xr"
],
"exim_day": [
"26"
],
"message": [
"1p9hi2-0005BO-EM ** jane.doe@elasticsearch.com <Jane.Doe@elasticsearch.com> R=dnslookup T=remote_smtp H=mail.elasticsearch.com [54.149.131.206] X=TLS1.2:DHE_RSA_AES_256_GCM_SHA384:256 CV=yes: SMTP error from remote mail server after RCPT TO:<Jane.Doe@elasticsearch.com>: 550 #5.1.0 Address rejected."
],
"exim_day.keyword": [
"10"
],
"host.os.family.keyword": [
"x"
],
"exim_sender.keyword": [
"jane.doe@elasticsearch.com",
"jane.doe@elasticsearch.com"
],
"@timestamp": [
"2022-12-10T07:15:44.076Z"
],
"host.os.type.keyword": [
"linux"
],
"host.os.platform": [
"x"
],
"host.os.platform.keyword": [
"x"
],
"log.file.path": [
"/var/log/exim4/mainlog"
],
"agent.ephemeral_id": [
"92978d0c-30c8-4aac-9bbe-86fc2c7ccea2"
]
},
"ignored_field_values": {
"message.keyword": [
"1p9hi2-0005BO-EM ** jane.doe@elasticsearch.com <Jane.Doe@elasticsearch.com> R=dnslookup T=remote_smtp H=mail.elasticsearch.com [54.149.131.206] X=TLS1.2:DHE_RSA_AES_256_GCM_SHA384:256 CV=yes: SMTP error from remote mail server after RCPT TO:<Jane.Doe@elasticsearch.com>: 550 #5.1.0 Address rejected."
],
"next_grok.keyword": [
" jane.doe@elasticsearch.com <Jane.Doe@elasticsearch.com> R=dnslookup T=remote_smtp H=mail.elasticsearch.com [54.149.131.206] X=TLS1.2:DHE_RSA_AES_256_GCM_SHA384:256 CV=yes: SMTP error from remote mail server after RCPT TO:<Jane.Doe@elasticsearch.com>: 550 #5.1.0 Address rejected."
]
}
}
And now using those examples what is the logic and outcome you want?
© 2020. All Rights Reserved - Elasticsearch
Apache, Apache Lucene, Apache Hadoop, Hadoop, HDFS and the yellow elephant logo are trademarks of the Apache Software Foundation in the United States and/or other countries.
