Hi All,
I have the template siem_alarm created in my kibana index pattern but i have this error "Error: No indices match pattern "siem_alarms" at url/bundles/commons.bundle.js:3:1337196"
Does anyone know what could be responsible for this.
thanks
pero
Hi @pero. What part of Kibana were you accessing when this error came up? Can you run GET /_cat/indices in your Kibana Dev Tools and share the results?
Hi @nickpeihl,
Am getting this from when I click on "index pattern, followed by me selecting the specific pattern then I click on the fresh Icon which then open up the 'refresh field list box' then click on refresh button, this will popup an 'error fetching fields with a 'see the full error' button.
if I run 'GET /_cat/indices' I get
"error": "Incorrect HTTP method for uri [/_cat/indices?pretty] and method [POST], allowed: [GET]",
"status": 405
In which version are you? Can you share a screenshot of that page?
This is an weird error for something in Kibana to make a POST request for _cat/indices.
Hi @nickpeihl /@leandrojmp,

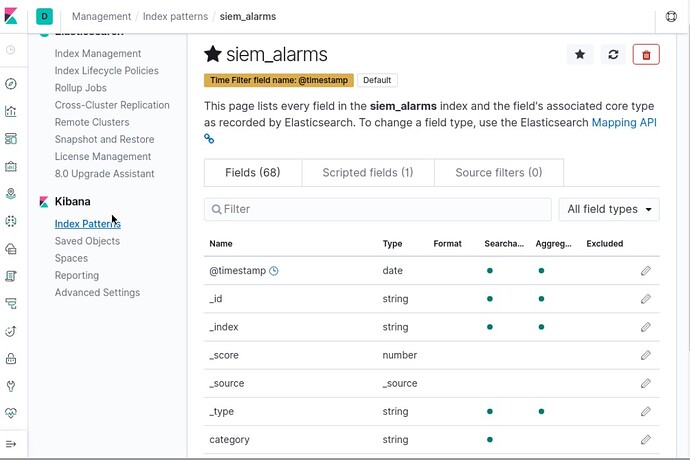

Here are screenshots that can be helpful
when I run 'GET /_cat/indices' on the Kibana Dev Tools this is what I get
Thanks for the help
And where is this from? You didn't share anything like this.
Also, from what you shared you do not have any indice named siem_alarms anymore, you have an indice named siem_events-*, but I do not see any siem_alarms.
Please run GET _cat/indices again and share the result but as plain text using the preformatted text button, the </> button.

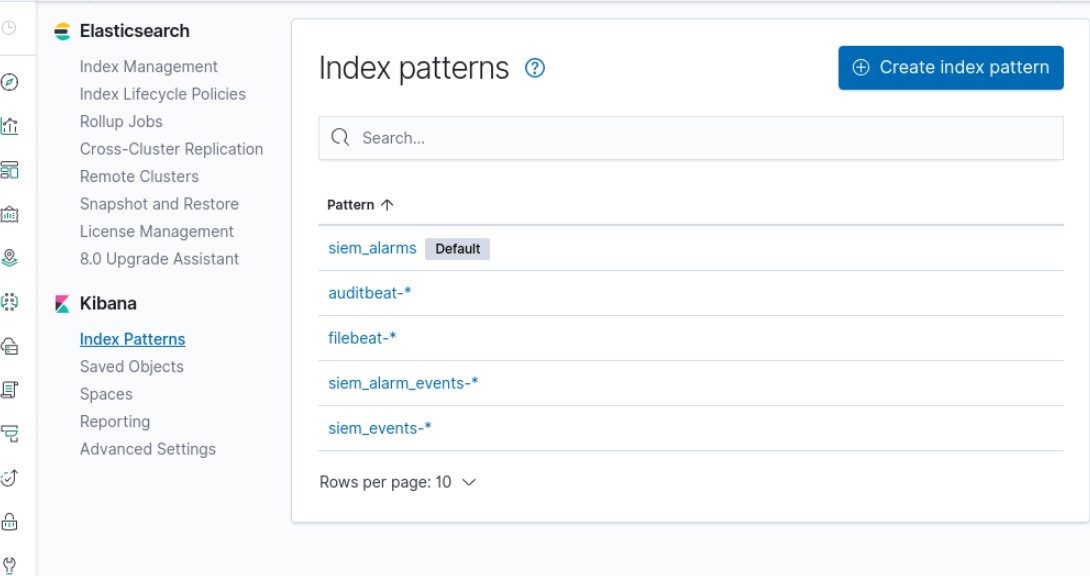

The first index pattern you see as default is 'siem_alarms' but when I run GET _cat/indices I do not see the 'siem_alarms' and 'siem_alarm_events-*'
Hi @leandrojmp,
when I run GET /_cat/indices it get this
green open siem_events-2023.07.05 CiM3kFJfSPi_2kisxalL8Q 1 0 288433 0 100.6mb 100.6mb
green open auditbeat-7.4.1-2023.06.30 PUMFLxGIQkmVBc6_S6GrxQ 1 0 334040 0 84.2mb 84.2mb
green open auditbeat-7.4.1-2023.06.27 O6-LaJ9bSQ2FkbCWldNbPA 1 0 297846 0 70.6mb 70.6mb
green open auditbeat-7.4.1-2023.06.26 beqNST1_QSGkQO4iYtppzQ 1 0 63423 0 16mb 16mb
green open auditbeat-7.4.1-2023.06.25 PJgbYcnGR1GIn1lcjVtwNA 1 0 0 0 283b 283b
yellow open %{[@metadata][beat]}-%{[@metadata][version]}-2023.06.29 gWoZN_IuShiwjoWtI43HRA 1 1 6 0 226.6kb 226.6kb
green open auditbeat-2023.07.05 -gKf1Cq2QlCZe3iMP982JA 1 0 332985 0 176mb 176mb
green open auditbeat-2023.07.04 R_-I9uO7RV-lSHYsgl3rsA 1 0 406238 0 230.4mb 230.4mb
green open siem_events-2023.07.01 YH15ewWYQnusW4SYQtXklg 1 0 323862 0 92.1mb 92.1mb
yellow open %{[@metadata][beat]}-%{[@metadata][version]}-2023.06.27 EOyW0xuURlm1KpO7crAeZA 1 1 4 0 110.4kb 110.4kb
green open siem_events-2023.07.02 KhJkRX3ySNyqnGlWEzehPw 1 0 317982 0 90.4mb 90.4mb
green open .kibana_task_manager_1 02WrViHKT_KVpoL1UfR2Rw 1 0 2 0 13.5kb 13.5kb
green open siem_events-2023.07.03 jYLTD6v1SVKmJHt42WLFSQ 1 0 311485 0 88.9mb 88.9mb
green open siem_events-2023.07.04 DfGozML6RY-hLYnDgpBZvg 1 0 219720 0 62.9mb 62.9mb
yellow open %{[@metadata][beat]}-%{[@metadata][version]}-2023.06.26 admFJphwTDqBBxiDHoJgNg 1 1 9 0 56kb 56kb
green open auditbeat-2023.06.30 ct1Cq917TEC1gjsRNqWaXA 1 0 599131 0 324.8mb 324.8mb
green open auditbeat-2023.07.03 CQH4f02jRoek6hEj7mgS4w 1 0 565842 0 313.9mb 313.9mb
green open auditbeat-2023.07.02 PBsPBlrcS1yFoFGqH5-sTw 1 0 576752 0 314mb 314mb
green open siem_events-2023.06.30 Btjlox98QOuOEBmPWOm_hg 1 0 334040 0 95.7mb 95.7mb
green open auditbeat-2023.07.01 LWF5MzgZQdyVUFJWKYsK7A 1 0 586212 0 316mb 316mb
yellow open %{[@metadata][beat]}-%{[@metadata][version]}-2023.05.30 70KyapVHRpa0VhzfJjbDqA 1 1 2 0 127.6kb 127.6kb
green open auditbeat-7.4.1-2023.06.29 eVHINF0WTiiKgx8LNjSa1Q 1 0 323585 0 81.9mb 81.9mb
green open auditbeat-7.4.1-2023.06.28 1C4RviUwQr-2BUMqVgAfJg 1 0 468926 0 114.8mb 114.8mb
green open siem_events-2023.06.29 S0mjQNVrTiKUUtd6IKddog 1 0 323585 0 92.9mb 92.9mb
green open siem_events-2023.06.28 lLICYO8IQX2lVHxmq0hXMg 1 0 468926 0 133.7mb 133.7mb
green open siem_events-2023.06.27 5BEn2fZ7RZugDeP0Zls2Fw 1 0 297846 0 83.4mb 83.4mb
green open siem_events-2023.06.26 rswSpbDPS8ub4Ku49UbEXw 1 0 63423 0 18.3mb 18.3mb
green open .apm-agent-configuration mMiItdNzTHOG9d49CNMtjQ 1 0 0 0 283b 283b
green open .kibana_1 5wZ9F7aVRq-Vj0ENYTX_HA 1 0 1031 101 512kb 512kb
green open auditbeat-2023.06.27 eQ_rvQ8pRrCRpd0tloQBbw 1 0 348909 0 179mb 179mb
green open auditbeat-2023.06.28 e1QzxPWrSZ-lPX1GvzjMoQ 1 0 615016 0 338.4mb 338.4mb
green open auditbeat-7.4.1-2023.07.05 gK1Xi86LRL2RsqlgxFUEuQ 1 0 288419 0 70.5mb 70.5mb
green open filebeat-2023.06.23 N_iFrRl3Rdal9EWB-OT7sw 1 0 1706 0 765.2kb 765.2kb
green open auditbeat-7.4.1-2023.07.04 a6rjMzrzSeyhmMz628ziDQ 1 0 219720 0 55.9mb 55.9mb
green open auditbeat-2023.06.25 7tgoi0FvRmOSGfxgpaDqDQ 1 0 12316 0 7.3mb 7.3mb
green open auditbeat-2023.06.26 cPyoN8ovRAm_1bZKP1P6Yg 1 0 520260 0 266.4mb 266.4mb
green open auditbeat-7.4.1-2023.07.03 k54x8kpPQz-UeaU4msiTVg 1 0 311485 0 78.3mb 78.3mb
green open auditbeat-7.4.1-2023.07.02 CGGczPy9SVyqXMneR-Fy4Q 1 0 317982 0 79.4mb 79.4mb
green open auditbeat-7.4.1-2023.07.01 RvFYqN4YTqiYhZGNMs9HOA 1 0 323862 0 81mb 81mb
green open auditbeat-2023.06.29 ulJ1y7ipQuK0fj8hg3i78w 1 0 572598 0 321mb 321mb
green open siem_events-2023.06.25 tQQVKlXwQiadk_cmK-vyoQ 1 0 0 0 283b 283b
yellow open %{[@metadata][beat]}-%{[@metadata][version]}-2023.07.03 fPMo-M5vQXy_GNaD40iyDw 1 1 5 0 363.8kb 363.8kb
green open filebeat-7.4.0-2023.06.23-000001 O_j3Rof0STKkHwR6qCEV9A 1 0 0 0 283b 283b
green open siem_events-2023.06.22 p59TvpB4Q5W3uXOZi-oNmg 1 0 192714 0 55.1mb 55.1mb
yellow open %{[@metadata][beat]}-%{[@metadata][version]}-2023.06.30 BHHsslugSv6QI8HgA69qOg 1 1 3 0 120.5kb 120.5kb
green open auditbeat-2023.06.23 8EDAy-K0RgWo1iDy4Y30xg 1 0 520740 0 297.2mb 297.2mb
green open auditbeat-2023.06.24 E1BaHTRFRti1_4JE7LBQDA 1 0 338259 0 199.2mb 199.2mb
yellow open localhost;9200 Bq81Ji1fRCmeM2MKtGvzTA 1 1 0 0 283b 283b
This means that someone with access to your Elasticsearch cluster created the index pattern siem_alarms and set it as the default index pattern when there was at least one index that matched that index pattern.
For some reason you do not have any index that matches this index pattern anymore, but only you can answer why, maybe someone deleted it or those indices are not being created anymore, or it was an alias that it is not present on your data anymore, you will need to investigate what happened.
Do you have an index pattern for the indices siem_events-*? If not you just need to create one and set it as default.
Also, 7.4 is pretty old, you should look into update to 7.17 and after date upgrade to 8.8.2.
Hi @leandrojmp, @nickpeihl
this was an error from something else please. so ignore it
["error": "Incorrect HTTP method for uri [/_cat/indices?pretty] and method [POST], allowed: [GET]",
"status": 405"]
No problem.
But as I said, there is no issue in Elasticsearch in this case.
You just have a default index pattern and your cluster does not have any indices that matches that index pattern anymore, so the message is expected.
Hi @leandrojmp,
I have the index pattern for the 'siem_alarms and siem_alarm_events created in elasticsearch and I can actually see the logs of this two patterns. Am very new to ELK. And am trying to integrate it with Dsiem
Can you show where you are seeing it? From what you shared you do not have any index named siem_alarms, so you do not have any index that matches that index pattern.
The logs from both the 'siem_alarms and siem_alarm_events' are in the dsiem application.
As you can see, these are being index to elasticsearch I believe
I can't see the images and I do not know what is dsiem.
Also, do not tag people, there is no need, if they are in a conversation they will be already notified.
Hi @leandrojmp; @nickpeihl ,
here are the patterns using GET /_template/siem_alarms-*
{
"siem_alarms-*" : {
"order" : 0,
"version" : 1,
"index_patterns" : [
"siem_alarms-*"
],
"settings" : {
"index" : {
"number_of_shards" : "1",
"number_of_replicas" : "0",
"refresh_interval" : "1s"
}
},
"mappings" : {
"dynamic_templates" : [
{
"string_as_keywords" : {
"mapping" : {
"norms" : false,
"type" : "text",
"fields" : {
"keyword" : {
"ignore_above" : 256,
"type" : "keyword"
}
}
},
"match_mapping_type" : "string"
}
}
],
"properties" : {
"src_ips" : {
"type" : "ip"
},
"dst_ips" : {
"type" : "ip"
}
}
},
"aliases" : {
"siem_alarms" : { },
"siem_alarms_id_lookup" : { }
}
}
}
GET /_template/siem_alarms
{
"siem_alarms" : {
"order" : 0,
"version" : 1,
"index_patterns" : [
"siem_alarms-*"
],
"settings" : {
"index" : {
"number_of_shards" : "1",
"number_of_replicas" : "0",
"refresh_interval" : "1s"
}
},
"mappings" : {
"dynamic_templates" : [
{
"strings_as_keywords" : {
"mapping" : {
"norms" : false,
"type" : "text",
"fields" : {
"keyword" : {
"ignore_above" : 256,
"type" : "keyword"
}
}
},
"match_mapping_type" : "string"
}
}
],
"properties" : {
"src_ips" : {
"type" : "ip"
},
"dst_ips" : {
"type" : "ip"
}
}
},
"aliases" : {
"siem_alarms" : { },
"siem_alarms_id_lookup" : { }
}
}
}
GET /_template/siem_alarm_events
{
"siem_alarm_events" : {
"order" : 0,
"version" : 1,
"index_patterns" : [
"siem_alarm_events-*"
],
"settings" : {
"index" : {
"number_of_shards" : "1",
"number_of_replicas" : "0",
"refresh_interval" : "1s"
}
},
"mappings" : {
"dynamic_templates" : [
{
"strings_as_keywords" : {
"mapping" : {
"norms" : false,
"type" : "text",
"fields" : {
"keyword" : {
"ignore_above" : 256,
"type" : "keyword"
}
}
},
"match_mapping_type" : "string"
}
}
]
},
"aliases" : { }
}
}
However I can see index patterns GET /_template/siem_alarms-* and GET /_template/siem_alarms
could that be the cause of the problem because I only need one
Dsiem is a correlation engine like Ossim
No, this is not the cause of the problem, the cause of the problem was already explained, you do not have any indice in your cluster that match your index pattern.
Those templates will be applied to any index named siem_alarms-* like siem_alarms-2023.07, and they have an alias to siem_alarms.
So if you have an index named siem_alarms-2023.07.05 the index pattern will match this indice because of the alias.
But you do not have any index named siem_alarms-* in Elasticsearch.
If you have this data in other tool you need to explain how you get the data from that other tool and send them to Elasticsearch, because currently you do not have this data in Elasticsearch.
So the main issue is, how do you get data from Dsiem into Elasticsearch? What tool do you use? This processos is probably not working anymore.
Also, please do not tag people as already asked.
will look at my logstash pipeline then. because am using logstash to send my data from filebeat.
I have it resolved. Am really grateful for the quick response from you all
