Kibana CSV Export – Large Stacktraces Splitting into Multiple Records

Elastic Stack Kibana
1

I’m facing an issue while exporting records from Kibana (v8.8.2) via CSV.

I have a field, os.log.message, that contains large stacktraces — sometimes over 1,000 words, including new lines, spaces, etc. In some cases, these stacktraces export correctly, with the entire content contained in a single cell for that record.

In Kibana, the stacktrace/message is properly ingested in the field.

However, in certain scenarios — especially when exporting a large dataset — the same stacktraces get truncated, and each newline within the message is treated as a separate record.

Why would this happen only in specific cases? Could this be related to log ingestion or is it a limitation/bug in Kibana’s reporting/export feature? What’s the best approach to handle or work around this? @stephenb @carly.richmond

os.log.message:

java.sql.SQLException: ORA-01722: invalid numberat oracle.jdbc.driver.T4CTTIoer.processError(T4CTTIoer.java:450)at oracle.jdbc.driver.T4CTTIoer.processError(T4CTTIoer.java:399)at oracle.jdbc.driver.T4C8Oall.receive(T4C8Oall.java:890)at oracle.jdbc.driver.T4CPreparedStatement.doOall8(T4CPreparedStatement.java:209)at oracle.jdbc.driver.T4CPreparedStatement.executeForDescribe(T4CPreparedStatement.java:870)at oracle.jdbc.driver.OracleStatement.executeMaybeDescribe(OracleStatement.java:1198)at oracle.jdbc.driver.OracleStatement.doExecuteWithTimeout(OracleStatement.java:1307)at oracle.jdbc.driver.OraclePreparedStatement.executeInternal(OraclePreparedStatement.java:3735)at oracle.jdbc.driver.OraclePreparedStatement.executeQuery(OraclePreparedStatement.java:3772)

Query:SELECT customer_id, order_date, total_amount, payment_statusFROM dummy_ordersWHERE order_status = 'PENDING'AND order_date >= TO_DATE('2025-01-01', 'YYYY-MM-DD')AND total_amount > 'ABC123';

-- Simulated log message for debugging purposes:[DEBUG] Executing database call for fetchPendingOrders()

Caused by: java.lang.NumberFormatException: For input string: "ABC123"at java.base/java.lang.NumberFormatException.forInputString(NumberFormatException.java:67)at java.base/java.lang.Integer.parseInt(Integer.java:668)at com.example.db.OrderRepository.mapRowToOrder(OrderRepository.java:142)at com.example.db.OrderRepository.getOrders(OrderRepository.java:110)at com.example.service.OrderService.fetchPendingOrders(OrderService.java:98)at com.example.controller.OrderController.listPendingOrders(OrderController.java:57)... 42 more

Caused by: java.lang.NullPointerException: Cannot invoke "Session.getAttribute(String)" because "session" is nullat com.example.auth.AuthManager.validateSession(AuthManager.java:61)at com.example.filter.AuthFilter.doFilter(AuthFilter.java:45)at org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)at org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)

[INFO] End of simulated stacktrace for testing CSV export handling.at oracle.jdbc.driver.T4CTTIoer.processError(T4CTTIoer.java:450)at

oracle.jdbc.driver.T4CTTIoer.processError(T4CTTIoer.java:399)at

oracle.jdbc.driver.T4C8Oall.receive(T4C8Oall.java:890)at

oracle.jdbc.driver.T4CPreparedStatement.doOall8(T4CPreparedStatement.java:209)at oracle.jdbc.driver.T4CPreparedStatement.executeForDescribe(T4CPreparedStatement.java:870)at
oracle.jdbc.driver.OracleStatement.executeMaybeDescribe(OracleStatement.java:1198)at
oracle.jdbc.driver.OracleStatement.doExecuteWithTimeout(OracleStatement.java:1307)at
oracle.jdbc.driver.OraclePreparedStatement.executeInternal(OraclePreparedStatement.java:3735)at
oracle.jdbc.driver.OraclePreparedStatement.executeQuery(OraclePreparedStatement.java:3772)at oracle.jdbc.driver.T4CTTIoer.processError(T4CTTIoer.java:450)at oracle.jdbc.driver.T4CTTIoer.processError(T4CTTIoer.java:399)at
oracle.jdbc.driver.T4C8Oall.receive(T4C8Oall.java:890)at
oracle.jdbc.driver.T4CPreparedStatement.doOall8(T4CPreparedStatement.java:209)at
oracle.jdbc.driver.T4CPreparedStatement.executeForDescribe(T4CPreparedStatement.java:870)at

oracle.jdbc.driver.OracleStatement.executeMaybeDescribe(OracleStatement.java:1198)at
oracle.jdbc.driver.OracleStatement.doExecuteWithTimeout(OracleStatement.java:1307)at
oracle.jdbc.driver.OraclePreparedStatement.executeInternal(OraclePreparedStatement.java:3735)at
oracle.jdbc.driver.OraclePreparedStatement.executeQuery(OraclePreparedStatement.java:3772)

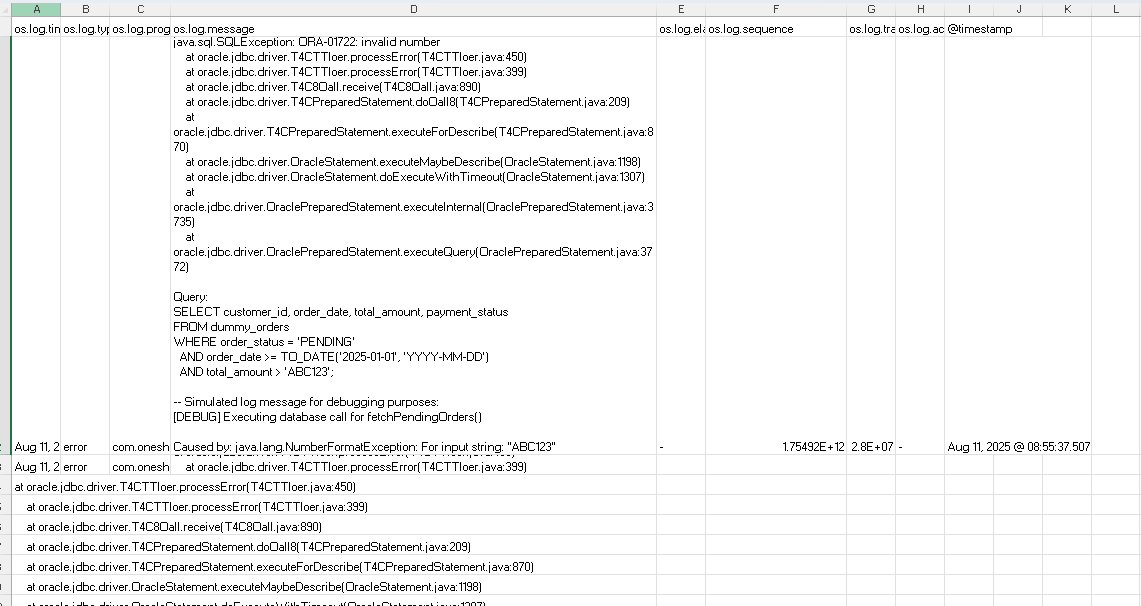

image1141×606 11.4 KB

2

Please be patient in waiting for responses to your question and refrain from pinging multiple times asking for a response or opening multiple topics for the same question. This is a community forum, it may take time for someone to reply to your question. For more information please refer to the Community Code of Conduct specifically the section "Be patient". Also, please refrain from pinging folks directly, this is a forum and anyone that participates might be able to assist you.

If you are in need of a service with an SLA that covers response times for questions then you may want to consider talking to us about a subscription.

It's fine to answer on your own thread after 2 or 3 days (not including weekends) if you don't have an answer.

1 Like
3

Hello @nkf_123

In this scenario if the export is working correctly for some scenarios without any issue which means we need to check below :

  1. Compare the field content between successful and failed exports to identify any anomalies.
  2. Try exporting just the problematic record to isolate whether the issue is record-specific or volume-related.
  3. If the data is simply wrapped to the next line in CSV, it may be a formatting issue rather than data loss.

Thanks!!

4

Hello @Tortoise

1 & 2. When I try to export just that single record, the CSV format is proper, but if I export that same record with other records (Small bulk export), the format is messed up

  1. So does that mean it is a CSV issue and not an ELK stack issue??
    I am still confused about the root cause.
5

Hello @nkf_123

  1. This means the issue is not related to the record & it is exported without any issues (single record)
  2. When you say (small bulk export) , could you please share record count?
  3. Maybe can try to open the downloaded csv file in another machine to see if it is related to format?

Thanks!!

6

Hi @Tortoise
2. Small as in 3 records only. With just 3 records the format got disrupted.

  1. The issue is also seen by other users.

FYI, I have tried downloading from the Discover panel (Share → CSV Reports → Generate CSV)
Also, I have tried downloading the CSV from a dashboard which has a Discover panel ( 3dots: More → Download CSV)
And the issue arises for both scenarios

1 Like
7

Hello @nkf_123

Could you please share the JSON record to see why it is causing the issue , as confirmed by you single export of this record works fine. When we try to export this same record with 2-3+records it breaks & writes new line in different cell, right?

I tried for 5 records of below type & export was fine (Kibana 9.1.0). If you can share 1 test record in similar format with all the fields as below than can see what could be the issue.

"timestamp": "2025-08-18T07:10:00Z","os.log.message": "java.sql.SQLException: ORA-01722: invalid number\n\tat oracle.jdbc.driver.T4CTTIoer.processError(T4CTTIoer.java:450)\n\tat oracle.jdbc.driver.T4CTTIoer.processError(T4CTTIoer.java:399)\n\tat oracle.jdbc.driver.T4C8Oall.receive(T4C8Oall.java:890)\n\tat oracle.jdbc.driver.T4CPreparedStatement.doOall8(T4CPreparedStatement.java:209)\n\tat oracle.jdbc.driver.T4CPreparedStatement.executeForDescribe(T4CPreparedStatement.java:870)\n\tQuery: SELECT customer_id, order_date, total_amount, payment_status FROM dummy_orders WHERE order_status = 'PENDING' AND order_date >= TO_DATE('2025-01-01', 'YYYY-MM-DD') AND total_amount > 'ABC123';\n-- Simulated log message for debugging purposes:\n[DEBUG] Executing database call for fetchPendingOrders()\nCaused by: java.lang.NumberFormatException: For input string: "ABC123"\n\tat java.base/java.lang.NumberFormatException.forInputString(NumberFormatException.java:67)\n\tat java.base/java.lang.Integer.parseInt(Integer.java:668)\n\tat com.example.db.OrderRepository.mapRowToOrder(OrderRepository.java:142)\n\tat com.example.db.OrderRepository.getOrders(OrderRepository.java:110)\n\tat com.example.service.OrderService.fetchPendingOrders(OrderService.java:98)\n\tat com.example.controller.OrderController.listPendingOrders(OrderController.java:57)\n... 42 more\nCaused by: java.lang.NullPointerException: Cannot invoke "Session.getAttribute(String)" because "session" is null\n\tat com.example.auth.AuthManager.validateSession(AuthManager.java:61)\n\tat com.example.filter.AuthFilter.doFilter(AuthFilter.java:45)\n\tat org.apache.catalina.core.ApplicationFilterChain.internalDoFilter(ApplicationFilterChain.java:193)\n\tat org.apache.catalina.core.ApplicationFilterChain.doFilter(ApplicationFilterChain.java:166)\n[INFO] End of simulated stacktrace for testing CSV export handling."

Thanks!!

8

@Tortoise
When we try to export this same record with 2-3+records, it breaks & writes new line in a different cell, right?

  • Yes, it takes some data (Maybe 100chars) in 1 cell of 1 row, but then the rest as a new records. Refer to the Screenshot provided at the beginning.

I have shared the sample JSON.

FYI, I’m using v8.8.2
