TSVB Descending Order not working as expected

Hello,

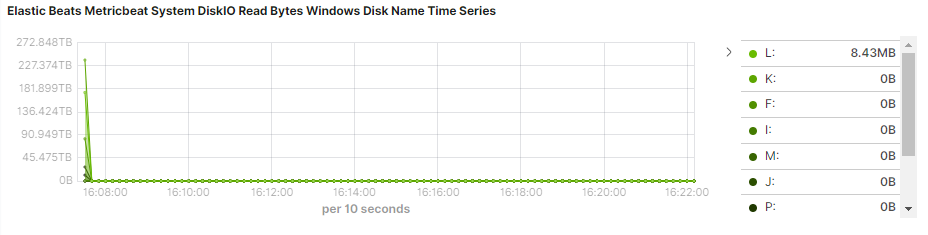

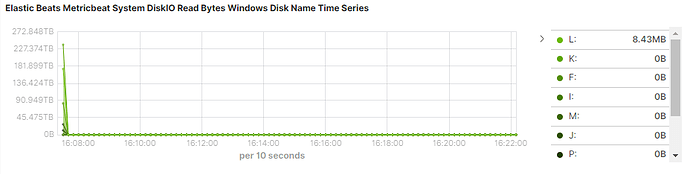

For some reason when I create 7.3.2 tsvb timeseries chart and select order by "Max of system.diksio.read.bytes", the legend is not sorted at all:

Json export of the visualisation:

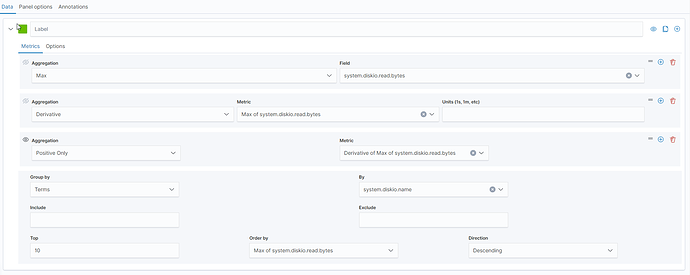

{"attributes":{"description":"","kibanaSavedObjectMeta":{"searchSourceJSON":"{\"query\":{\"query\":\"\",\"language\":\"kuery\"},\"filter\":[]}"},"title":"Elastic Beats Metricbeat System DiskIO Read Bytes Windows Disk Name Time Series","uiStateJSON":"{}","version":1,"visState":"{\"title\":\"Elastic Beats Metricbeat System DiskIO Read Bytes Windows Disk Name Time Series\",\"type\":\"metrics\",\"params\":{\"id\":\"61ca57f0-469d-11e7-af02-69e470af7417\",\"type\":\"timeseries\",\"series\":[{\"id\":\"61ca57f1-469d-11e7-af02-69e470af7417\",\"color\":\"#68BC00\",\"split_mode\":\"terms\",\"metrics\":[{\"id\":\"61ca57f2-469d-11e7-af02-69e470af7417\",\"type\":\"max\",\"field\":\"system.diskio.read.bytes\"},{\"unit\":\"\",\"id\":\"b4c50a50-dec0-11e9-8645-256c9a1c014d\",\"type\":\"derivative\",\"field\":\"61ca57f2-469d-11e7-af02-69e470af7417\"},{\"unit\":\"\",\"id\":\"ee8a5100-dec0-11e9-8645-256c9a1c014d\",\"type\":\"positive_only\",\"field\":\"b4c50a50-dec0-11e9-8645-256c9a1c014d\"}],\"separate_axis\":0,\"axis_position\":\"right\",\"formatter\":\"bytes\",\"chart_type\":\"line\",\"line_width\":1,\"point_size\":1,\"fill\":\"0.2\",\"stacked\":\"none\",\"label\":\"\",\"terms_field\":\"system.diskio.name\",\"terms_order_by\":\"61ca57f2-469d-11e7-af02-69e470af7417\",\"terms_size\":\"10\",\"terms_direction\":\"desc\"}],\"time_field\":\"@timestamp\",\"index_pattern\":\"metricbeat\",\"interval\":\"auto\",\"axis_position\":\"left\",\"axis_formatter\":\"number\",\"axis_scale\":\"normal\",\"show_legend\":1,\"show_grid\":1,\"default_index_pattern\":\"metricbeat\",\"default_timefield\":\"@timestamp\",\"filter\":{\"query\":\"event.dataset : \\\"system.diskio\\\" AND host.os.family : \\\"windows\\\"\",\"language\":\"kuery\"}},\"aggs\":[]}"},"id":"d1982970-dec3-11e9-8536-f91cecc85017","migrationVersion":{"visualization":"7.3.1"},"references":[],"type":"visualization","updated_at":"2019-09-24T12:07:02.791Z","version":"WzU1MDUsMV0="}~

I'm guessing the reason is that system.diskio.read.bytes is a incrementing counter or sth like that? Is there some way to make the sort work on the derivative instead of on the raw value?

Another issue I noted with this visualisation is that sometimes it looke like this:


This seems to happen mostly on small time ranges. Is there any way to prevent this?

Tx

Willem

Hi @willemdh
can you please an issue here for the first problem (legend ordering)?https://github.com/elastic/kibana/issues/new?template=Bug_report.md
Seems like a legit bug but It's better to track it down first.

Instead for the second issue, can you please describe a bit what is the desired output instead? Because it really depends on the nature of your data.

Hi Marco,

@markov00 Thanks for the fast answer. See https://github.com/elastic/kibana/issues/46466. For the second issue, I'll try to explain with 2 visualisations:

  1. Last 30 minutes range:

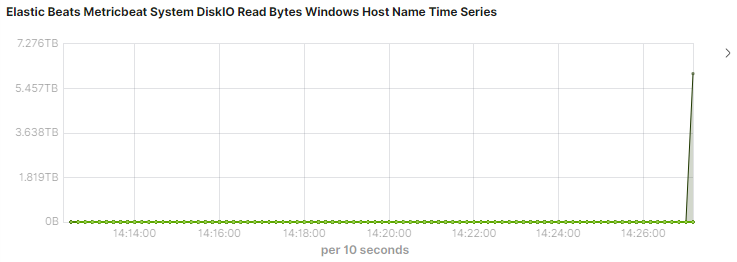

  1. Same visualisation, last 15 minutes range:

Metrics are gathered every 10 seconds, so there is definitely data. Visualizing the same data in Grafana works perfectly..

Grtz

Willem
