Kibana - How to customize split Chart

Elastic Stack Kibana
1

I choose the Line Chart and use split chart function as following:

image1062×651 80 KB

I have four items and each item has its value scale as the y-axis. For example, the value of item_1 is between 4~10, however, item_2 is between 40~80.

When I use the split chart, the y-axis on all of these charts are locked between 20~60 liked the following:

Q1. Is there any way to set the upper and lower bound of the y-axis for each subplot chart individually?

Q2. Each subplot chart seems that size too small. Can I set the width, height on the split chart function? Or maybe some ways that can make the chart not so close.

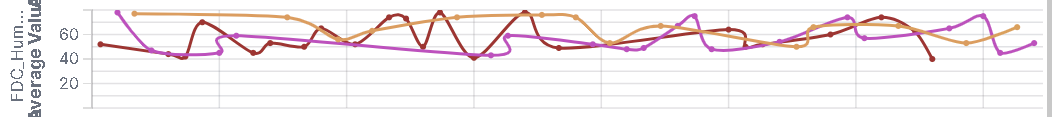

Q3. I also used the split series functions and each subplot has three lines.

image1052×117 21.6 KB

Can the kibana support us to assign the color we want for each line?

Q4. My y-axis setting screenshot liked the following:

I choose Average on my field: Value, However, each y-axis on the subplot has the redundant word:

image1071×156 16.6 KB

How can I eliminate these words?

Q5.

There is a function called Threshold Line on Panel settings

image491×597 13.3 KB

When I use the function, for example, When I set the threshold value as 20, it will add a horizontal line at 20 (y-axis) on each subplot.

However, I want to set the threshold line for each subplot chart individually. Is there any way can meet my requirements?

2

We don't currently have support for customizing these features for each series / split chart. I believe the most practical option would be to create each of these charts individually with the settings appropriate for each split chart.

3

Hi joshdover,
each data format I insert to es liked the following:

ITEM: A , Value:4, @timestamp:Jan 11, 2020
ITEM: B , Value:5, @timestamp:Jan 11, 2020
ITEM: C , Value:6, @timestamp:Jan 11, 2020
...

As you said create each chart individually, How can I plot each chart of ITEM A,B,C in my data format with kibana visualize?

For example, I want to plot Value (y-axis) of Item A with @timestamp (x-axis), but kibana setting only support us to set the field ITEM.

Or should I change my data format like the following:

A: 4, B:null, C: null, @timestamp:Jan 11, 2020
A: null, B:null, 5: null, @timestamp:Jan 11, 2020
A: null, B:null, C: 6, @timestamp:Jan 11, 2020

I don't want to do this since I have lots of these ITEM (eg. A, B, C.... ).

4
