Strange behaviour with filters not working

Elastic Stack Kibana
1

Hi,
I'm experiencing strange behaviour and hoping someone could help me out.

We've recently migrated to es 6.1.2 and imported all of our dashboards and visualisations from kibana 5.

We've got some very strange behaviour however where visualisations aren't working unless we change the filter type to something else, then back to what it was?!

For example, clicking search on the visualistion shows this in console:

47
Screen Shot 2018-01-28 at 13.30.47.png1350×600 147 KB

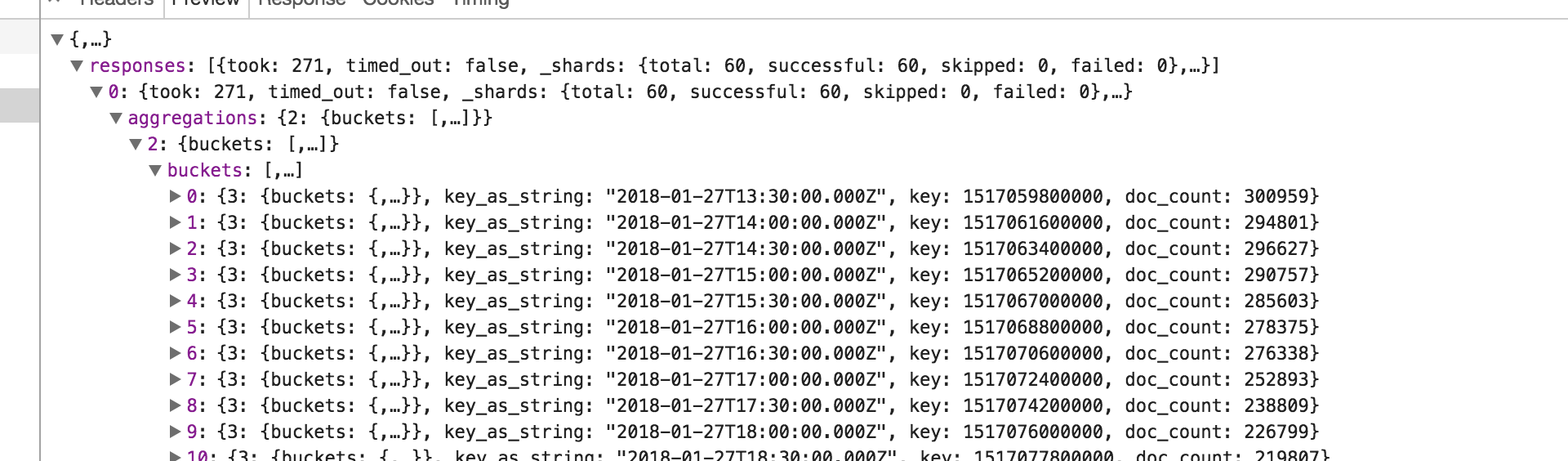

You can see the search/json seemed to return ok:

58
Screen Shot 2018-01-28 at 13.30.58.png1920×564 151 KB

If I toggle the filter from "Term" to something else, then back to "Term", it's fine:
33

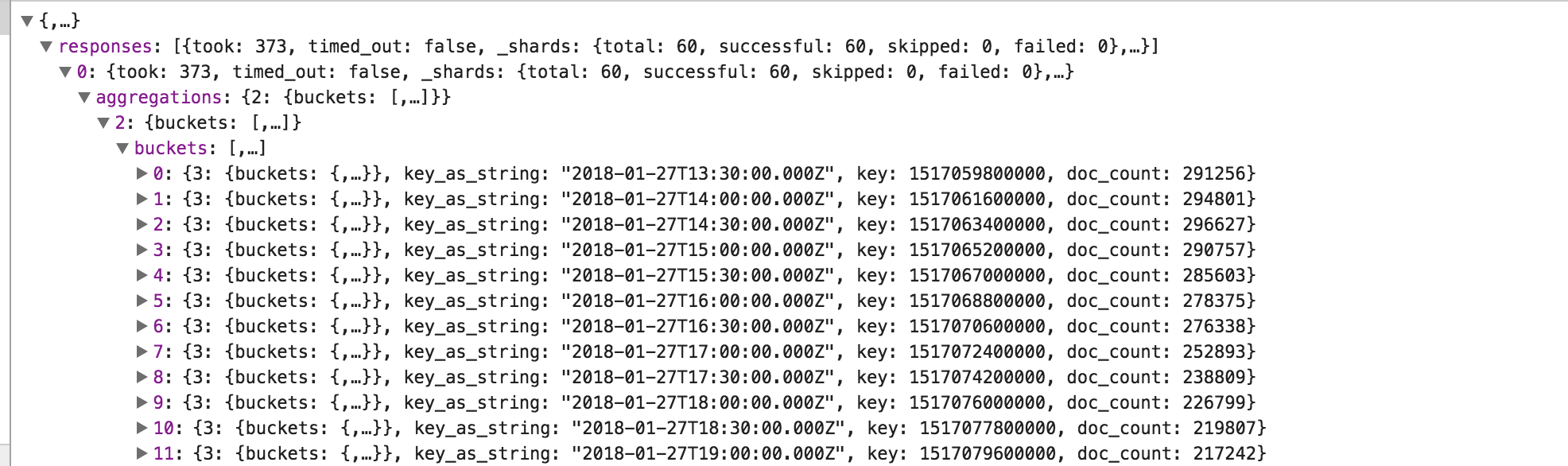

Can't really see any difference in the response!:

48
Screen Shot 2018-01-28 at 13.31.48.png1972×586 163 KB

So I started to look at the differences in the stored JSON between an "unfixed" and "fixed" visualisation.
Problem state:

{ title: 'retail-check.vehicles added to stock',
  type: 'histogram',
  params:
   { shareYAxis: true,
     addTooltip: true,
     addLegend: true,
     scale: 'linear',
     mode: 'stacked',
     times: [],
     addTimeMarker: false,
     defaultYExtents: false,
     setYExtents: false,
     yAxis: {} },
  aggs:
   [ { id: '1', type: 'count', schema: 'metric', params: [Object] },
     { id: '2',
       type: 'date_histogram',
       schema: 'segment',
       params: [Object] },
     { id: '3', type: 'filters', schema: 'group', params: [Object] } ],
  listeners: {} }

After a save (working state):

{ title: 'retail-check.vehicles added to stock',
  type: 'histogram',
  params:
   { shareYAxis: true,
     addTooltip: true,
     addLegend: true,
     scale: 'linear',
     mode: 'stacked',
     times: [],
     addTimeMarker: false,
     defaultYExtents: false,
     setYExtents: false,
     yAxis: {},
     type: 'histogram',
     grid: { categoryLines: false, style: [Object] },
     categoryAxes: [ [Object] ],
     valueAxes: [ [Object] ],
     seriesParams: [ [Object] ],
     legendPosition: 'right' },
  aggs:
   [ { id: '1',
       enabled: true,
       type: 'count',
       schema: 'metric',
       params: [Object] },
     { id: '2',
       enabled: true,
       type: 'date_histogram',
       schema: 'segment',
       params: [Object] },
     { id: '3',
       enabled: true,
       type: 'filters',
       schema: 'group',
       params: [Object] } ] }

So there are some differences... We've got 1000's of visualisations so would rather not have to manually toggle the filters on them all!

Anyone got any ideas how to ease this pain?

3

Digging into this a little more I see a difference in the way the filters are being stored:

broken:

> a.aggs[2].params.filters[0]
{ input: { query: { query_string: [Object] } }, label: '' }

working:

> a.aggs[2].params.filters[0]
{ input:
   { query: 'dotted-name-by-all:at-portal.live.by-all.counter.status.2??.api.appraisal-vehicle.add-to-stock' },
  label: '' }
4

I moved this over to the Kibana forum, as that question seems to be more appropriate over here.

5

Hi Karl,

just to confirm I get you correctly: This only effects visualizations, that uses the Filter Bucket aggregation? Not filters attached to any visualization?

Cheers,
Tim
