Need to make logs in order

cool999 · October 27, 2021, 6:02pm

Hi,

I have below app logs, like below but they are not in oder in kibana i.e the last log line below is not the first in kibana discover.

2021-10-27 16:51:14.864 | INFO  |  |  |  |  | [http-nio-8080-exec-32] | next-concapcont - selected account ids : [GB22QNBA0935005402|4303004002]
2021-10-27 16:51:15.138 | INFO  |  |  |  |  | [http-nio-8080-exec-32] | QueryTranslatorFactoryInitiator - HHH000397: Using ASTQueryTranslatorFactory
2021-10-27 16:51:15.358 | INFO  | next-con | bce8dbe3-0f-4365-b906-48b2e794a6 |  |  | [http-nio-8080-exec-32] | next-concapcont - user_unit_id: LMS
2021-10-27 16:51:15.358 | INFO  | next-con | bce8dbe3-0f-4365-b906-48b2e794a6 |  |  | [http-nio-8080-exec-32] | next-concapcont - corporate_id: null
2021-10-27 16:51:15.358 | INFO  | next-con | bce8dbe3-0f-4365-b906-48b2e794a6 |  |  | [http-nio-8080-exec-32] | next-concapcont - consentStatus: accept

This is /etc/filebeat/filebeat.yml capturing logs.

- type: log
      fields_under_root: true
      fields:
         log_type:  nextgen-api_app_server1
         app_id: app
      multiline.pattern: ^[[:space:]]+(at|\.{3})\b|^Caused by:|^java|^...|^-
      multiline.negate: true
      multiline.match: after
      paths:
        - /opt/tomcat/logs/catalina.out

below is the pattern file /etc/logstash/patterns/custom.txt.

MY_DATE_PATTERN %{YEAR}-%{MONTHNUM}-%{MONTHDAY}[T ]%{HOUR}:%{MINUTE}(?::?%{SECOND})

custom.txt is used in /etc/logstash/conf.d/logstash.conf file,

if [log_type] == "nextgen-api_app_server1" and [app_id] == "app"
  {
    mutate { gsub => ["message","\|"," "] } grok { patterns_dir => ["/etc/logstash/patterns"] match => { "message" => "%{MY_DATE_PATTERN:timestamp}%{SPACE}%{LOGLEVEL:level}%{SPACE}%{UUID:ConsentID}%{SPACE}%{WORD:TraceID}%{SPACE}%{WORD:TransactionID}%{SPACE}%{GREEDYDATA:messagetext}" } }
    mutate {
             replace => {
               "[type]" => "nextgen-api_app_server1"
             }
           }
  }

I want to order the logs as per the timestamp in message.

I know above MY_DATE_PATTERN Is not correct, I have changed it like below, but this is not working.

MY_DATE_PATTERN %{YEAR}-%{MONTHNUM}-%{MONTHDAY} %{HOUR}:%{MINUTE}:%{SECOND}.%{SSS}

there is no date filter used in logstash so I assume currently the logs are getting ordered in with the time they are coming in the pipeline and hence they not appearing in order and hence I want to oder them based on the timestamp in message.

Badger · October 27, 2021, 7:22pm

Not even that. logstash does not preserve the order of events by default.

You need to use a date filter to parse the date that you extract using grok.

What does "this is not working" mean?

cool999 · October 27, 2021, 7:35pm

Hi @Badger,

Thanks for reply.

I mean the modified MY_DATE_PATTERN is not helping in order of logs.

Thanks,

cool999 · October 27, 2021, 7:53pm

@Badger

If date filter is only option to get this done,

Will below work? I haven't test yet.

date {
       match => ["@timestamp", "%{YEAR}-%{MONTHNUM}-%{MONTHDAY} %{HOUR}:%{MINUTE}:%{SECOND}.%{SSS}]
}

If yes, need to remove below as well,

{ patterns_dir => ["/etc/logstash/patterns"] match => { "message" => "%{MY_DATE_PATTERN:timestamp}

Badger · October 27, 2021, 10:33pm

Remove the mutate. It results in messages like

2021-10-27 16:51:15.138   INFO                [http-nio-8080-exec-32]   QueryTranslatorFactoryInitiator ...
2021-10-27 16:51:15.358   INFO    next-con   bce8dbe3-0f-4365-b906-48b2e794a6

The first has no UUID, the second has a word between the log level and the UUID. Your grok pattern does not make fields optional.

Your "UUID" does not match grok's idea of what a UUID should look like, so you need a custom pattern. The "D" pattern allows for one or more spaces between the log level and the following pipe. For INFO logs you have two spaces but I suspect ERROR logs will have one.

    grok {
        pattern_definitions => {
            "MY_DATE_PATTERN" => "%{YEAR}-%{MONTHNUM}-%{MONTHDAY}[T ]%{HOUR}:%{MINUTE}:%{SECOND}"
            "MY_UUID" => "[A-Fa-f0-9]{8}-[A-Fa-f0-9]{2}-(?:[A-Fa-f0-9]{4}-){2}[A-Fa-f0-9]{10}"
            "D" => " +\| "
         }
        match => { "message" => "%{MY_DATE_PATTERN:timestamp}%{D}%{LOGLEVEL:level}%{D}%{DATA}%{D}(%{MY_UUID:ConsentID}){0,1}%{D}%{D}%{DATA:TraceID}%{D}%{DATA:TransactionID}%{D}%{GREEDYDATA:messagetext}" }
    }
    date { match => [ "timestamp", "YYYY-MM-dd HH:mm:ss.SSS" ] }

You will end up with events like

    "timestamp" => "2021-10-27 16:51:15.358",
   "@timestamp" => 2021-10-27T20:51:15.358Z,
        "level" => "INFO",
    "ConsentID" => "bce8dbe3-0f-4365-b906-48b2e794a6",
"TransactionID" => "[http-nio-8080-exec-32]",
  "messagetext" => "next-concapcont - consentStatus: accept",

cool999 · October 28, 2021, 3:43pm

Hi @Badger,

I have modified pipeline config for this application as suggested.

if [log_type] == "next-api_app_server1" and [app_id] == "app"
  {
    grok {
        pattern_definitions => {
            "MY_DATE_PATTERN" => "%{YEAR}-%{MONTHNUM}-%{MONTHDAY}[T ]%{HOUR}:%{MINUTE}:%{SECOND}"
            "MY_UUID" => "[A-Fa-f0-9]{8}-[A-Fa-f0-9]{2}-(?:[A-Fa-f0-9]{4}-){2}[A-Fa-f0-9]{10}"
            "D" => " +\| "
         }
         match => { "message" => "%{MY_DATE_PATTERN:timestamp}%{D}%{LOGLEVEL:level}%{D}%{DATA}%{D}(%MY_UUID:ConsentID}){0,1}%{D}%{D}%{DATA:TraceID}%{D}%{DATA:TransactionID}%{D}%{GREEDYDATA:messagetext}" }
   }
   date { match => [ "timestamp", "YYYY-MM-dd HH:mm:ss.SSS"] }
   mutate {
             replace => {
               "[type]" => "next-api_app_server1"
             }
           }
  }

Restated the App to generate logs. Below are last lines of logs.

I have notice now, It has two different types of timestamps below.

.
.
.
2021-10-28 17:35:49.743 | INFO  |  |  |  |  | [localhost-startStop-1] | Application - Started Application in 10.788 seconds (JVM running for 78.11)
28-Oct-2021 17:35:49.761 INFO [localhost-startStop-1] org.apache.catalina.startup.HostConfig.deployWAR Deployment of web application archive [/opt/tomcat/webapps/next-is.war] has finished in [15,937] ms
28-Oct-2021 17:35:49.776 INFO [main] org.apache.coyote.AbstractProtocol.start Starting ProtocolHandler ["http-nio-8080"]
28-Oct-2021 17:35:49.808 INFO [main] org.apache.coyote.AbstractProtocol.start Starting ProtocolHandler ["ajp-nio-8009"]
28-Oct-2021 17:35:49.821 INFO [main] org.apache.catalina.startup.Catalina.start Server startup in 76863 ms
2021-10-28 17:35:50.247 | INFO  |  |  |  |  | [http-nio-8080-exec-18] | o.s.w.s.DispatcherServlet - Initializing Servlet 'dispatcherServlet'
2021-10-28 17:35:50.277 | INFO  |  |  |  |  | [http-nio-8080-exec-18] | o.s.w.s.DispatcherServlet - Completed initialization in 28 ms

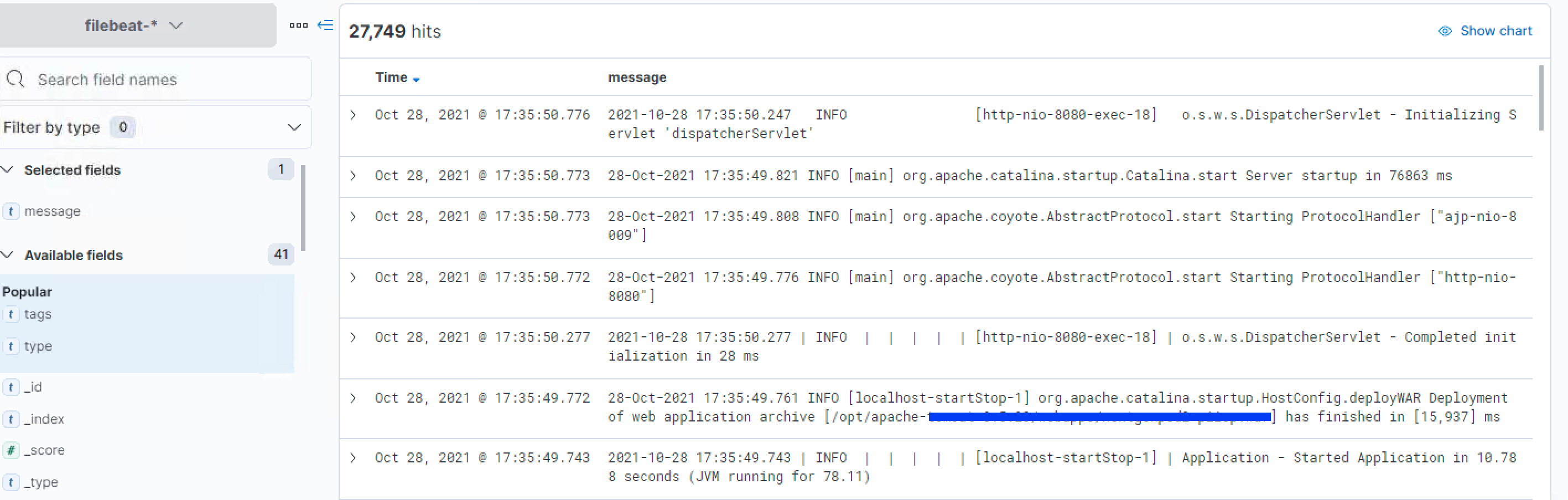

1 - It's still not in order when seeing it in kibana.

(Sorry for sharing screen shot for kibana, not sure how can I send this kibana logs as text)

To keep things simple, I am just concentrating on order of logs for now (even if some of the logs are not getting parsed or indexed due to such config missing in filter config)

2 - Not sure why but some of these logs are going into filebeat index, whereas they all should go into next-api index only. I have not got any logs in logstash-plain.log while doing this activity to indicate any error or something.

(same screenshot as above but with _index filed )

Below is the output filter config for this index.

output {
if [log_type] == "next-api_app_server1" {
  elasticsearch {
    hosts => ['http://es_server1:9200', 'http://es_server2:9200', 'http://es_server3:9200']
    index => "next-api"
    template_name => "next-api"
    template_overwrite => "false"
        user => elastic
    password => "${es_pwd}"
      }
}
   elasticsearch {
    hosts => ['http://es_server1:9200', 'http://es_server2:9200', 'http://es_server3:9200']
    index => "%{[@metadata][beat]}-%{[@metadata][version]}-%{+YYYY.MM}"
        user => elastic
    password => "${es_pwd}"
      }
}

Thanks,

Badger · October 28, 2021, 10:44pm

If you have two different log file formats you can make grok match against a list of patterns. Similarly for the date filter.

    grok {
        pattern_definitions => {
            "MY_DATE_PATTERN" => "(%{YEAR}-%{MONTHNUM}-%{MONTHDAY}|%{MONTHDAY}-%{MONTH}-%{YEAR})[T ]%{TIME}"
            "MY_UUID" => "[A-Fa-f0-9]{8}-[A-Fa-f0-9]{2}-(?:[A-Fa-f0-9]{4}-){2}[A-Fa-f0-9]{10}"
            "D" => " +\| "
         }
        match => {
            "message" => [
                "^%{MY_DATE_PATTERN:timestamp}%{D}%{LOGLEVEL:level}%{D}%{DATA}%{D}(%{MY_UUID:ConsentID}){0,1}%{D}%{D}%{DATA:TraceID}%{D}%{DATA:TransactionID}%{D}%{GREEDYDATA:messagetext}",
                "^%{MY_DATE_PATTERN:timestamp} %{LOGLEVEL:level} \[%{DATA}\] (?<class>[.\w]+) %{GREEDYDATA:messagetext}"
            ]
        }
    }
    date { match => [ "timestamp", "YYYY-MM-dd HH:mm:ss.SSS", "dd-MMM-YYYY HH:mm:ss.SSS" ] }

cool999 · October 29, 2021, 2:38pm

Hi @Badger,

Thanks. It worked. I can see single line logs are appearing in order.

There are still images like below or multiline code not getting parsed properly.

server logs -

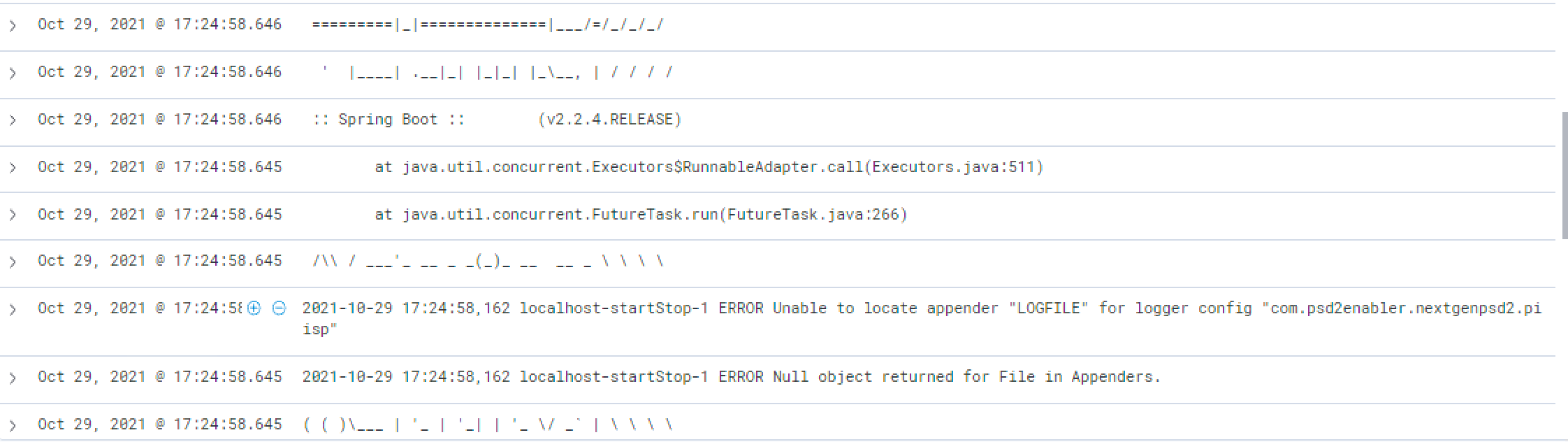

At kibana - above logo getting split also there seems to be issue with multiline code getting parsed as single lines.

Thanks,

cool999 · November 1, 2021, 1:22pm

Hi @Badger,

Can you please reply.

Thanks,

Badger · November 1, 2021, 3:54pm

You will need to add additional patterns to the match array if there are additional formats. Put the most specific patterns first.

cool999 · November 2, 2021, 12:13pm

Hi @Badger,

Are you saying to add more patterns to the match array in logstash.conf?

Currently here we have two match pattern

Badger:

match => {
            "message" => [
                "^%{MY_DATE_PATTERN:timestamp}%{D}%{LOGLEVEL:level}%{D}%{DATA}%{D}(%{MY_UUID:ConsentID}){0,1}%{D}%{D}%{DATA:TraceID}%{D}%{DATA:TransactionID}%{D}%{GREEDYDATA:messagetext}",
                "^%{MY_DATE_PATTERN:timestamp} %{LOGLEVEL:level} \[%{DATA}\] (?<class>[.\w]+) %{GREEDYDATA:messagetext}"
            ]

I think to match multiline code i need to add such regex in filebeat.yml and not in logstash.conf

Below is what I already have in filebeat.yml.

- type: log
      fields_under_root: true
      fields:
         log_type:  next-api_app_server
         app_id: app
      multiline.pattern: ^[[:space:]]+(at|\.{3})\b|^Caused by:|^java|^...|^-
      multiline.negate: true
      multiline.match: after
      paths:
        - /opt/tomcat/logs/catalina.out

I am testing multi line code on Go Playground

I am asking this for messages like below.

2021-10-27 16:49:58.648 | TRACE |  |  |  |  | [http-nio-8080-exec-30] | o.h.t.d.s.BasicBinder - binding parameter [1] as [BIGINT] - [1764448]
2021-10-27 16:49:58.656 | DEBUG |  |  |  |  | [http-nio-8080-exec-30] | o.h.SQL -
    select
        pidata0_.id as id1_3_,
        pidata0_.cli_id as cli_id2_3_,
        pidata0_.cou_code as cou_code3_3_,
        pidata0_.creation_time as creation_time4_3_,
        pidata0_.pay_data as pay_data5_3_,
        pidata0_.pay_type as pay_type6_3_,
        pidata0_.resume_path as resume_path7_3_,
        pidata0_.sc as sc8_3_,
        pidata0_.tp_cli_id as tp_cli_id9_3_,
        pidata0_.uid as uid10_3_
    from
        pg_data pidata0_
    where
        pidata0_.uuid=?
2021-10-27 16:49:58.656 | TRACE |  |  |  |  | [http-nio-8080-exec-30] | o.h.t.d.s.BasicBinder - binding parameter [1] as [VARCHAR] - [0ecb28a0-111f-4292-acb8-8bbd9740d15e]
2021-10-27 16:49:58.658 | TRACE |  |  |  |  | [http-nio-8080-exec-30] | o.h.t.d.s.BasicExtractor - extracted value ([id1_3_] : [BIGINT]) - [1764447]

Thanks,

Badger · November 2, 2021, 4:38pm

I would change the multiline configuration so that anything that does not start with a date and time is appended to the previous line, rather than specifying all the patterns that might occur on a non-matching line.

cool999 · November 2, 2021, 5:30pm

Hi @Badger,

Yes. thank you.

I was asking all these matching for multiline code (which I will try) needs to define in filebeat.yml right and not in logstash.yml

Thanks,

cool999 · November 3, 2021, 4:16pm

Hi @Badger,

Can you please reply. I will close this discussion after this.

Thanks for the help.

Thanks,

Badger · November 3, 2021, 7:54pm

Yes, a filebeat multiline pattern is configured in filebeat.yml

cool999 · November 3, 2021, 8:05pm

Thank you for your kind reply.
