Newbie question regarding maps

[GKre]

Hello community,

i checked to find the answer searching but maybe the question is to easy

how do i configure an overlay in a map so that every "point" where a network communication ended has a tooltip with the "owner" of the ip range?

I am sure i saw something like tihs just after insalling my test environment.

I saw dot's on the map for every network endpoint and if i moved the mouse over is saw an info - mostly *.microsoft.com.

What is my aim - after having this map i want to exclude all microsoft domains to see if traffic is going somewhere else in the world.

Any help with this question?

Thx a lot...

[jsanz (Jorge Sanz)]

Hello @GKre, welcome to our community.

@GKre

how do i configure an overlay in a map so that every "point" where a network communication ended has a tooltip with the "owner" of the ip range?

You mean a text on the map like the label of a city, or a pop up with that info that shows up when clicking on the point? In maps application:

• the first is called a label and you can render one field as a label with many parameters configured on the panel at the end of the layer options
• the second is called a tooltip and is configured in the Tooltip fields panel

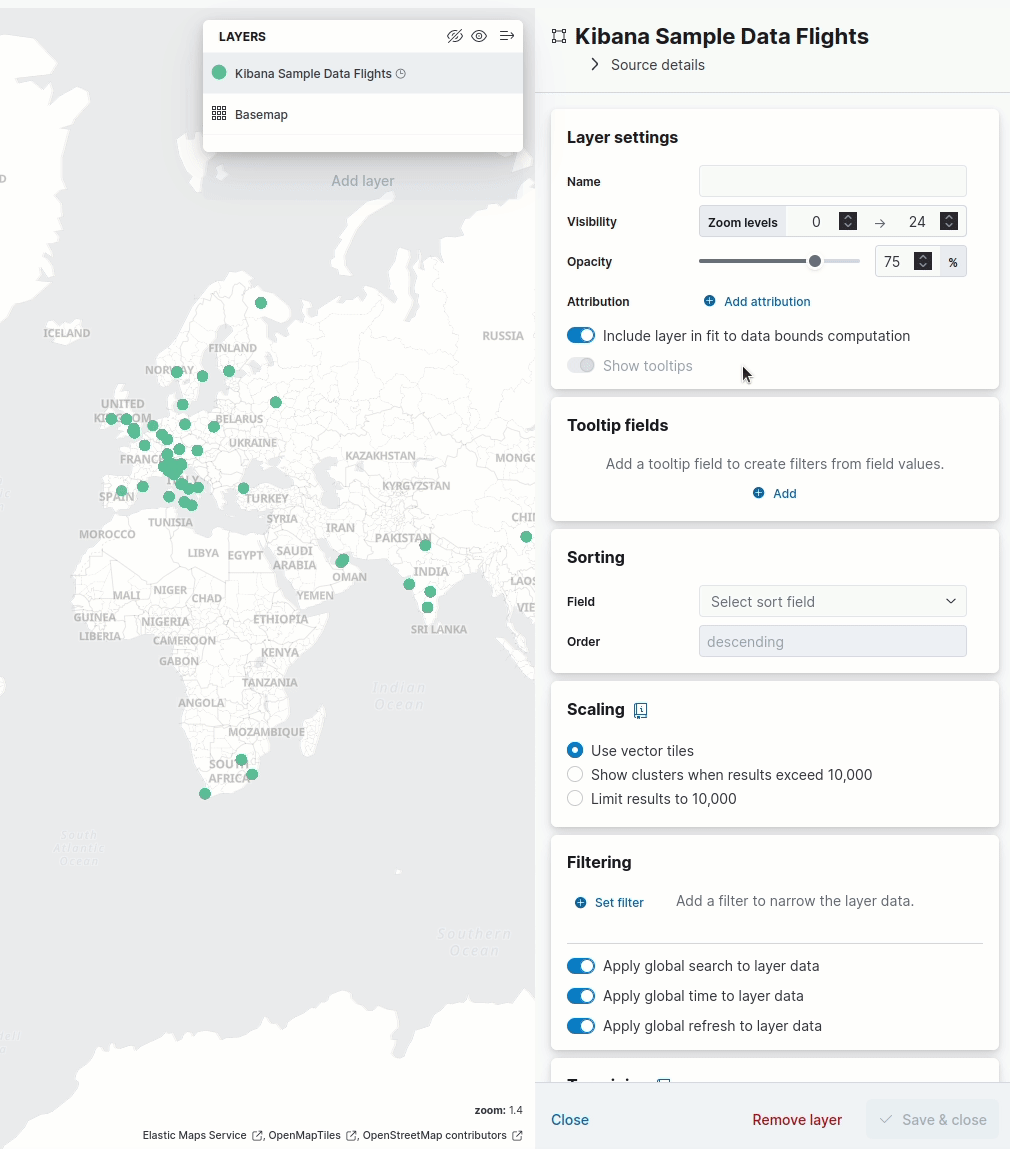

Quick recording of configuring both settings with the Kibana Flightts sample dataset, showing the average price as tooltips and labels.

@GKre

What is my aim - after having this map i want to exclude all microsoft domains to see if traffic is going somewhere else in the world.

To do that you can add a filter to that layer in the Filtering panel so only that layer is affected by your expression.

Continuing the previous example filtering flights with an average price lower than 500.

---

These settings and much more are documented at the Kibana Maps documentation but let us know if there's something we can improve to clarify how the app works

Maps | Kibana Guide [8.11] | Elastic

[GKre]

Hello and thank you for the "super good" explanation.

It was not the "handling" of creating the overlay but a more simple problem - i needed to find the right field

In my case i now use "destination.as.organization.name" that is solving my needs.

I added some exclusions for standard orgs like microsoft and akamai.
What i get as a result is a map with all the destinations that had been connected and i can see very fast if there's one in an unusual location.

Great for me - this is helping a lot if i want to check for any "un-normal" traffic.

About the improvement - i am "overloaded" with the information that is available and what is behind this. Maybe a list of "common" field with an explanation would be fine?

What i am also missing is the "URL" of the connection if it's maybe an https request. Having this available would make it much easier to identify potential malicious traffic.

I tested "Elastic Defend" but got a different issue (see seperate post from today) and not the field with the url.

--> Is it possible to collect this info as a field from an integration?

Best wishes
G.

[jsanz (Jorge Sanz)]

@GKre

--> Is it possible to collect this info as a field from an integration?

Please open a separate issue since that seems not related to maps. To be honest I'm not being able to fully follow the issue so I would suggest to simplify and add as much context as possible for folks to assist. Good luck!
